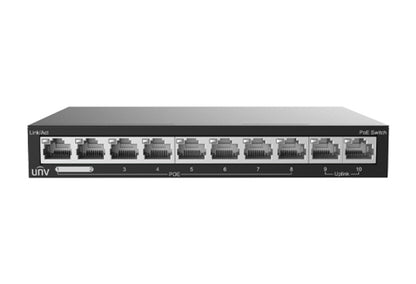

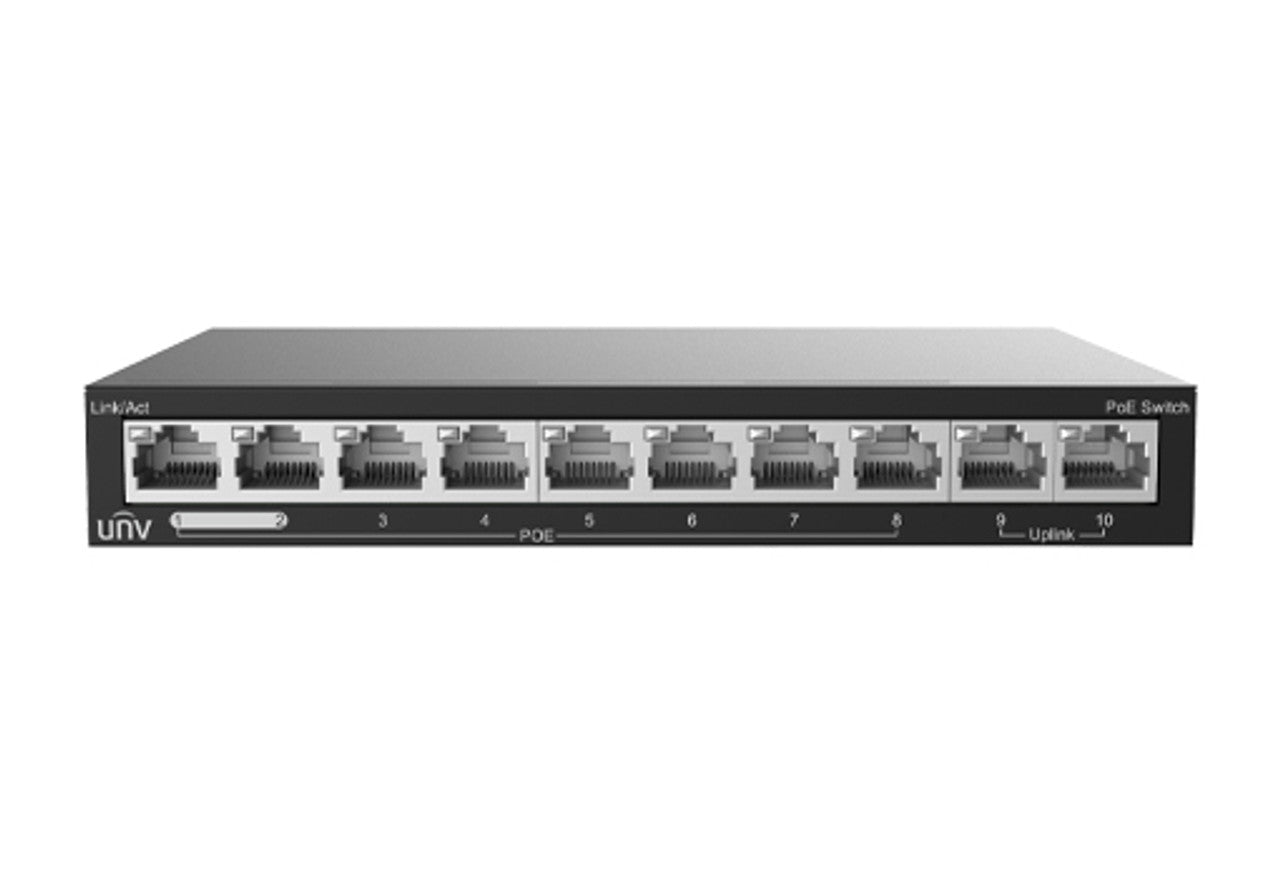

UNV 8-Ch 4K PoE+ Switch Uniview Security Accessory

UNV 8-Ch 4K PoE+ Switch Uniview Security Accessory

NSW2020-10T-POE-IN

$169.00 USD
$169.00 USD
Sale Sold out
Shipping calculated at checkout.

UNV  8PoE+2Port 8-Ch PoE+ Switch with Surveillance (Extend) Mode and Two Uplink Ports Uniview Security Accessory

Uniview  8PoE+2Port with port traffic control.

Features:

Multiple working modes to address your business needs: Normal, Secure, and Surveillance
This Switch Support port traffic control
Up to 250m transmission distance on surveillance mode
It Support buffer optimization
Support for secure mode
all downlink ports can communicate only with uplink ports
All metal housing, safe and reliable

Specification:

Switch


Ports
10×100Mbps network ports (RJ45),including 8 PoE ports

Standards IEEE802.3,IEEE802.3u,IEEE802.3az,IEEE802.3x, IEEE802.3af,IEEE802.3at
Switching capacity
2Gbps

Forwarding performance
1.49Mpps

Packet Buffer
1.625Mbit

MAC
4K

Dimensions (W×D×H)
220mm x 150mm x 44mm(8.7"×5.9"×1.7")

Weight
<1.22kg

Power supply AC: 100-240V, 50/60Hz
PoE 802.3at/af
Max. PoE Power
Max capacity: 120W Max capacity for single port: 30W

Cooling Fans
0

Mean Time Between Failure (MTBF) >50000 hours
Ambient temperature 0°C-45°C (32°F-113°F)
Operating humidity 10%～90% (noncondensing)
Storage humidity 5%～90% (noncondensing)
Indicator PWR: Steady on: AC input is normal Off: No AC input
PoE: Off: No PoE power supply Steady on: PoE power supply is normal Flashing: PoE power supply is abnormal
LINK/ACT: Off: No link Steady: Linked at 10/100Mbps Flashing: Transmitting data
Speed: Off: Linked at 10/100Mbps On: Linked at 1000Mbps
Working Mode Default(Normal mode) : All ports can communicate with each other. EXTEND(Surveillance mode): Transmission distance up to 250 meters.
