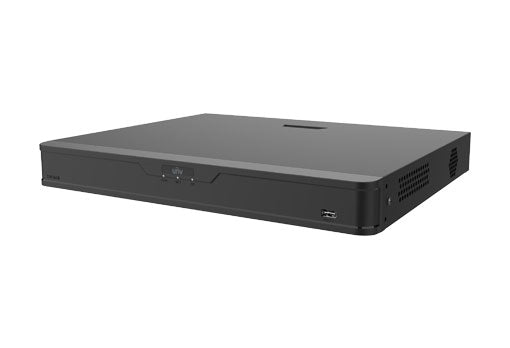

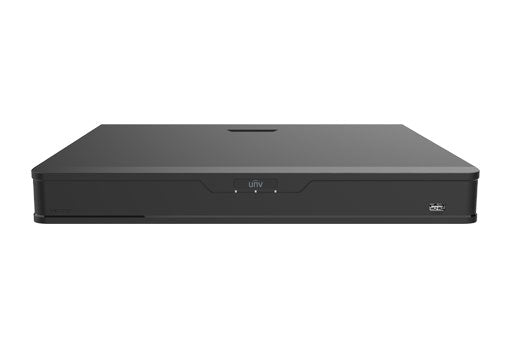

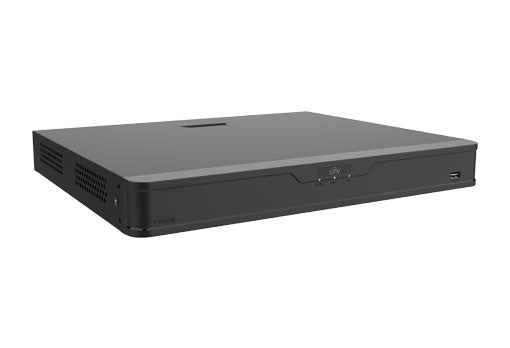

UNV 8-Ch 4K Audio NDAA for IP Cameras Uniview XVR Security Surveillance Recorder
UNV 8-Ch 4K Audio NDAA for IP Cameras Uniview XVR Security Surveillance Recorder
SKU:XVR302-08U3
Regular price
$639.00 USD
Regular price
Sale price
$639.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
UNV 8-Ch 4K Audio NDAA 2 SATA for IP Cameras Uniview XVR Security Recorder
This Video recorders are the heart of your cctv system. With this Recorder you can be sure that your security cameras are in good hands. This HD-TVI video recorder is perfect for standard installations with up to 8 security cameras.
In addition to being a 8 channel DVR, this is also considered a Tribrid DVR, which means you also have the ability to add up to 16 IP security cameras; effectively making this a 24 channel DVR.
It is just what your system needs to ensure fast, powerful, and reliable surveillance 24/7.
Specification:
| Video/Audio Input | ||
| Analog Video Input | 8-ch, BNC | |
| IP Video Input | 8-ch (only IP up to 16ch), each channel up to 8MP | |
| Audio Input | 4-ch, RCA | |
| Audio Compression | G.711U | |
| Video/Audio Output | ||
| CVBS Output | 1-ch, BNC | |
| VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
| HDMI Output | 4K(3840X2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
| Audio Output | 1-ch, RCA | |
| Synchronous Playback | 16-ch | |
| Live view display | HDMI/VGA: 1/4/6/8/9/16 | |
| Two-way Audio | 1-ch, RCA | |
| Snapshot | ||
| FTP/Schedule/Event Snapshot | 16-ch snapshot, up to 704*576 resolution | |
| Network | ||
| Incoming Bandwidth | 80 Mbps (Up to 96 Mbps after all analog channel conversion) | |
| Outgoing Bandwidth | 160 Mbps | |
| Remote Users | 128 | |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP | |
| Encoding | ||
| Recording Resolution | 8MP/5MP/4MP/1080P/720P/D1 | |
| Recording Frame Rate | Main stream | Sub stream |
| 8MP@8fps | D1@8fps | |
| 5MP@12fps | D1@12fps | |
| 4MP@15fps | D1@15fps | |
| 1080P@25fps | D1@25fps | |
| 720P@30fps | D1@30fps | |
| Audio Sample Rate | 8KHz,16 bit per channel | |
| Audio Bit Rate | 64Kbps per channel | |
| Decoding | ||
| Capability | Analog: 8x8MP@8, 8x5MP@12, 8x 4MP@15, 8x1080P@25, 8x720@30 IP : 16x720P@30, 8x1080P@30, 4x4MP@30, 2x8MP@30 |
|
| Hard Disk | ||
| SATA | 2 SATA interfaces | |
| Capacity | Up to 8TB for each HDD (The maximum HDD capacity varies with environment temperature) |
|
| Smart Alarm | ||
| VCA Detection | Ultra Motion Detection(UMD) for analog:8-ch | |
| VCA Search | Behavior Search | |
| General Alarm | ||
| General Alarm | Motion detection | |
| Alert Alarm | IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | |
| External Interface | ||
| Network Interface | 1RJ45 10M/100M/1000M self-adaptive Ethernet Interface | |
| USB Interface | Rear panel：1xUSB3.0, Front panel：1xUSB2.0 | |
| Serial Interface | 1 x RS485 | |
| Alarm In | 8 | |
| Alarm Out | 4 | |
| General | ||
| Power Supply | 12V DC Power Consumption: ≤ 12 W( without HDD ) |
|
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | |
| Dimensions(W×D×H) | 380mm × 326mm × 53mm (15" × 12.8" × 2.1") | |
| Weight ( without HDD ) | ≤2.0 Kg (4.4lb) | |
| Certification | ||
| Certification | UL /CE /FCC /RoHS /WEEE | |
