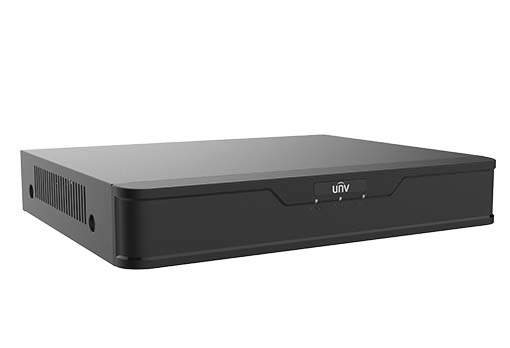

UNV 8-Ch with 4 Additional IP Inputs and 1 SATA Hard Drive Bay Digital Uniview Security Video Recorder
Uniview 8-Ch with Support audio over coaxial cable.
Features:
Support H.265/H.264 video formats
Audio support over coaxial cable
Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
4/8-channel BNC input
Support 1-ch CVBS output, 1-ch VGA output
HDMI and VGA simultaneous output
Mainstream cameras of ONVIF and RTSP protocols
Specification:
|
|
|
| Video/Audio Input |
| Analog Video Input |
|
8-ch, BNC |
| IP Video Input |
|
4-ch(only IP up to 12ch), each channel up to 8MP |
| Audio Input |
1-ch, RCA |
| Audio Compression |
G.711U |
Video & Audio
| Video/Audio Output |
| CVBS Output |
1-ch, BNC |
| VGA Output |
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz. |
| HDMI Output |
3840 x 2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz. |
| Audio Output |
1-ch, RCA |
| Synchronous Playback |
4 |
8 |
| Live view display |
HDMI/VGA: 1/4/6/8/9 |
HDMI/VGA: 1/4/6/8/9/16 |
| Two-way Audio |
1-ch, RCA |
Network
| Network |
| Incoming Bandwidth |
|
40Mbps (Up to 56Mbps after all analog channel conversion) |
| Outgoing Bandwidth |
|
64Mbps |
| Remote Users |
128 |
| Protocols |
TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP |
Encoding
| Encoding |
| Recording Resolution |
|
8MP Lite/5MP/5MP Lite/4MP Lite /1080P/720P/CIF |
| Audio Sample Rate |
8KHz,16 bit per channel |
| Audio Bit Rate |
64Kbps per channel |
Hard Disk
| Hard Disk |
| SATA |
1 SATA interface |
| Capacity |
Up to 8TB for each HDD |
Alarm
| General Alarm |
| General Alarm |
Motion detection |
| Alert Alarm |
IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, |
Interface

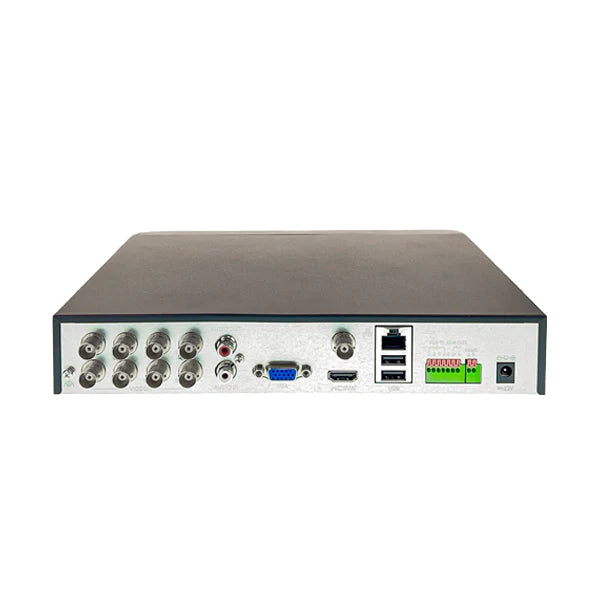

| External Interface |
| Network Interface |
1 RJ45 10M/100M self-adaptive Ethernet Interface |
| USB Interface |
Rear panel: 2 x USB2.0 |
| RS485 |
1 |
| Alarm In |
4-ch |
| Alarm Out |
1-ch |
General
| General |
| Power Supply |
12V DC
Power Consumption: ≤ 10 W( without HDD ) |
| Working Environment |
-10°C ~ + 55°C ( +14°F ~ +131°F ) |
| Dimensions(W×D×H) |
260mm ×226mm× 47mm (10.2" × 8.9"×1.8") |
| Weight ( without HDD ) |
≤1.1 Kg ( 2.42lb ) |
