UNV 5MP IP67 NDAA Audio Uniview Analog Surveillance Security Camera 2.8mm Lens
UNV 5MP IP67 NDAA Audio Uniview Analog Surveillance Security Camera 2.8mm Lens
SKU:UAC-D125-AF28M
Regular price
$119.00 USD
Regular price
Sale price
$119.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

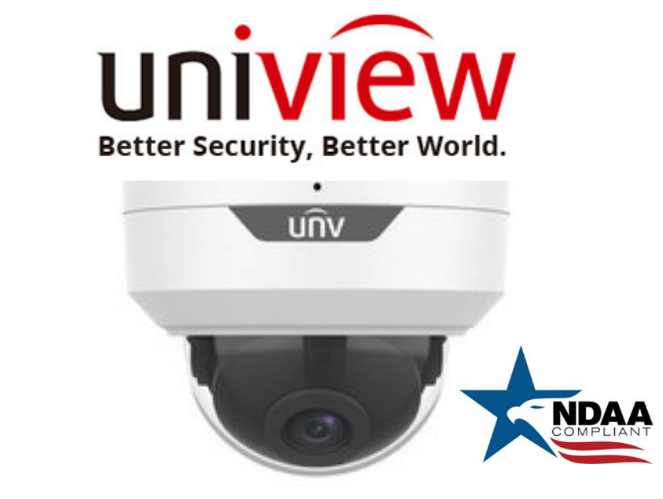

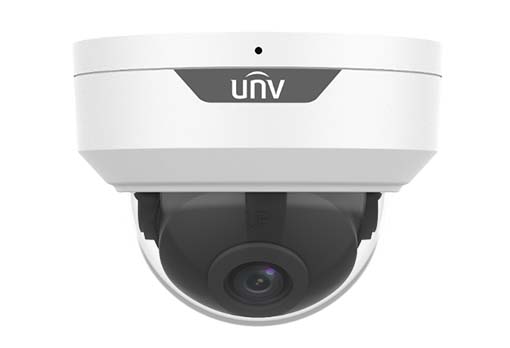

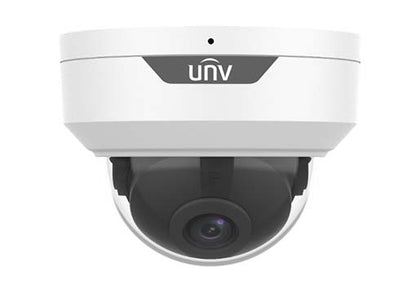

UNV LightHunter 5MP M12 IP67 IK10 IR HD Uniview Dome Analog Security Camera 2.8mm Fixed Lens with Night Vision
Uniview LightHunter for New Generation Dome Camera.
Features:
TVI/AHD/CVI/CVBS
Supports IR-cut filter with auto-switch
LightHunter monitoring with high-sensitivity sensor
Supports 180° horizontal/vertical flip
OSD configuration menu, easy to operate
Metal base and metal housing
Built-in microphone for high quality audio transmission via coaxial cables
Water and dust resistant (IP67) and vandal-resistant (IK10)
Description:
In an era where security is paramount choosing the right surveillance equipment is crucial. Uniview, a renowned player in the security industry, offers an outstanding solution in the form of the Uniview 5MP M12 IP67 IK10 LightHunter HD IR Dome Analog Security Camera.
Specification:
| Camera | ||
| Sensor | ||
| Pixel | 5MP | |
| Size | 1/2.7" | |
| Minimum illumination | 0.005 lux (F1.6, AGC ON) 0 lux (IR on) | |
| Lens | ||
| Lens | 2.8mm | |
| Lens mount | M12 | |
| Angle of view | H: 109.1° V: 60.9° D: 126.7° | |
| Illuminator | ||
| Illuminator | One IR illuminator | |
| Illumination distance | 30m | |
| Lifetime | ≥60,000 hours | |
| Video | ||
| Resolution | 5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) 1080P: 1920(H)×1080(V) | |
| Frame rate | TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVBS: PAL, NTSC | |
| Shutter time | PAL: 1/25s-1/50000s NTSC: 1/30s–1/50000s | |
| Image | ||
| Exposure mode | Four modes: Global (default), BLC, HLC, DWDR | |
| Day/Night | Three modes: Auto (default), Day, Night | |
| Noise reduction | 2D | |
| White balance | Two modes: Auto (default), Manual | |
| WDR | DWDR | |
| Smart IR | Support | |
| Flip | Supports 180° horizontal flip, 180° vertical flip | |
| Audio | ||
| Microphone | Built-in Mic | |
| Camera audio | TVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps | |
| Interface | ||
| Power | 5.5mm power interface | |
| Video output | BNC, supports TVI/AHD/CVI/CVBS | |
| Operating environment | ||
| Temperature | -30°C to 60°C (-22°F to 140°F) | |
| Humidity | ≤95% (RH, non-condensing) | |
| Surge protection | 4kV for power and video output interfaces | |
| Ingress protection | IP67 | |
| IK rating | IK10 | |
| General | ||
| Power | DC 12V(±25%), with reverse polarity protection, Max 3.3W | |
| Mount | Surface mount (default), optional tilted mounting bracket | |
| Dimensions | Φ109mm*83mm (diameter*height) | |
| Material | Metal | |
| Weight | 372g (0.82lb) | |
| Certification | CB, CE, FCC, UL | |
