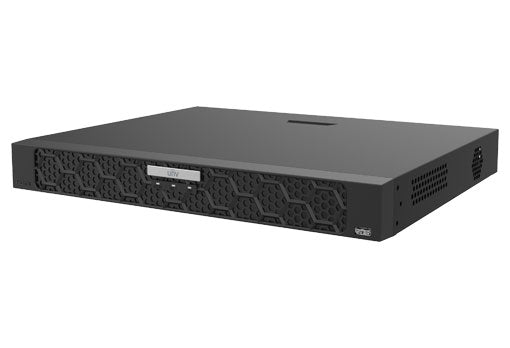

UNV 8-Ch 16MP 2 SATA HDDs Audio NDAA Uniview Security Surveillance Recorder NVR

SKU:NVR502-08B-P8

Quantity

$869.00 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

UNV 8-Ch 16MP 2 SATA HDDs Audio PoE NDAA Uniview Network Security Surveillance Recorder NVR

Features:

Support Ultra 265/H.265/H.264 video formats

8/16/32-channel input

Plug & Play with 8/16 independent PoE network interfaces

Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols

Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution

VGA and HDMI independent output

Up to 16 Megapixels resolution recording

2 SATA HDD, up to 10TB for each HDD

ANR technology to enhance the storage reliability when the network is disconnected

Support cloud upgrade

Specification:

Network
Incoming bandwidth	320Mbps
Outgoing bandwidth	160Mbps
Remote Users	128
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP,

Video/Audio Output
Recording Resolution	16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output	1-ch, RCA
Two-way Audio	1-ch, RCA(Using the audio input and output)
Audio Compression	G.711A, G.711U
Synchronous Playback	8-ch
Liveview display	1/4/6/8/9
Corridor Mode Screen	3/4/5/7/9

Snapshot
FTP/Schedule/Event Snapshot	4-ch snapshot, up to D1 resolution

External Interface
Network Interface	1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
USB Interface	Front: 1 x USB2.0, Rear panel: 1 x USB3.0
RS232	NA
RS485	1
Alarm In	8-ch
Alarm Out	2-ch

PoE
Interface	8 RJ-45 10M/100M self-adaptive Ethernet Interface
Max Power	Max 30W for single port Max 130W in total
Supported Standard	IEEE 802.3af/at

General
Power Supply	100~240V AC Power Consumption: ≤ 20W (without HDD)
Working Environment	-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H)	380mm × 322mm × 53mm (15.0"×12.7"×2.1")
Weight (without HDD)	≤ 2.6Kg (5.73lb)
