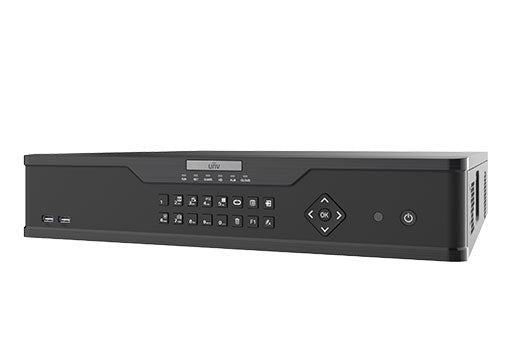

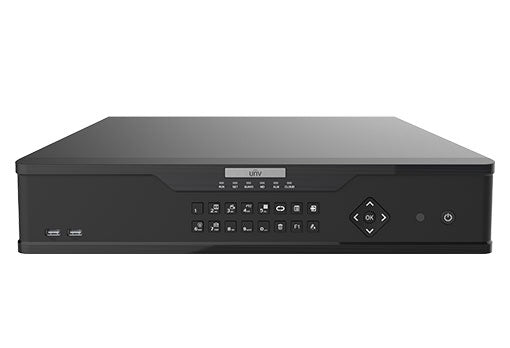

UNV 12MP 64-Ch PoE 8 SATA NDAA 2-Way Audio Uniview IP Network Security NVR
UNV 12MP 64-Ch PoE 8 SATA NDAA 2-Way Audio Uniview IP Network Security NVR
SKU:NVR308-64X
Regular price
$3,079.00 USD
Regular price
Sale price
$3,079.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
UNV 64-Ch 12MP PoE 2-Way Audio NDAA Uniview IP Network Security NVR
The Uniview 64-Ch marks a significant paradigm shift.
Key Features:
Compression: Ultra 265/H.265/H.264
Channel:64
Pre-Installed Storage: No HDD
Video output:1-ch HDMI, 1-ch VGA
Max.Recording Resolution:12MP
Hard drive Ports:8 SATA interfaces
Max.Storage Capacity:10TB
Color:Black
Description:
In today's fast-paced world security is paramount. Uniview, a leading player in the security industry understands this need perfectly. They have introduced the Uniview , a cutting-edge Network Video Recorder (NVR) that takes security to the next level. This NVR is design to be the central hub of your security system capable of recording and managing multiple cameras simultaneously. The offers support for up to 64 channels making it suitable for both small-scale and large-scale surveillance systems. Experience crystal-clear video quality with 4K Ultra HD resolution ensuring that no detail goes unnoticed. Access your surveillance system from anywhere in the world with remote viewing capabilities providing peace of mind even when you're away. This NVR supports up to 64 channels making it ideal for both small-scale and extensive surveillance setups. The high channel count ensures that you can cover every corner of your property leaving no blind spots. Keep an eye on your property from anywhere in the world with remote monitoring capabilities. Access the live feed and recorded footage via your smartphone or computer.
| NVR | |||||||||
| Video/Audio Input | |||||||||
| IP Video Input | 64-ch | ||||||||
| Two-way Audio Input | 1-ch, RCA | ||||||||
| Network | |||||||||
| Incoming Bandwidth | 384Mbps | ||||||||
| Outgoing Bandwidth | 384Mbps | ||||||||
| Remote Users | 128 | ||||||||
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS | ||||||||
| Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows |
||||||||
| Video/Audio Output | |||||||||
| HDMI/VGA Output | VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI1/HDMI2(HDMI audio output is not supported): 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
||||||||
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||||||||
| Audio Output | 1-ch, RCA | ||||||||
| Audio Compression | G.711A, G.711U | ||||||||
| Synchronous Playback | 16-ch | ||||||||
| Liveview display | VGA: 1/4/6/8/9/16/25/36 HDMI1/HDMI2: 1/4/6/8/9/16/25/36/64 |
||||||||
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 | ||||||||
| Snapshot | |||||||||
| FTP/Schedule/Event Snapshot | 64-ch snapshot, up to 4K resolution | ||||||||
| Decoding | |||||||||
| Decoding format | Ultra 265, H.265, H.264 | ||||||||
| Live view/Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||||||||
| Capability | 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1 | ||||||||
| Hard Disk | |||||||||
| SATA | 8 SATA interfaces | ||||||||
| Capacity | up to 12TB for each HDD | ||||||||
| eSATA | 1 eSATA interface | ||||||||
| Disk Group | Support | ||||||||
| Disk Array | |||||||||
| Array Type | RAID 0, 1, 5, 6, 10 | ||||||||
| Smart | |||||||||
| VCA Detection by Camera | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Auto Tracking, Object Left Behind, Object Removed, Vehicle Control, Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), Ultra Motion Detection(UMD), Video Metadata, Traffic Monitoring | ||||||||
| VCA Search | Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report | ||||||||
| People Counting | People Flow Counting, Crowd Density Monitoring | ||||||||
| Smart Intrusion Prevention (SIP), Vehicle Detection, Temperature Detection, UMD, Video Metadata, Traffic Monitoring by Camera | Total 16-ch | ||||||||
| General Alarm | |||||||||
| General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Alarm input, Audio Detection | ||||||||
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | ||||||||

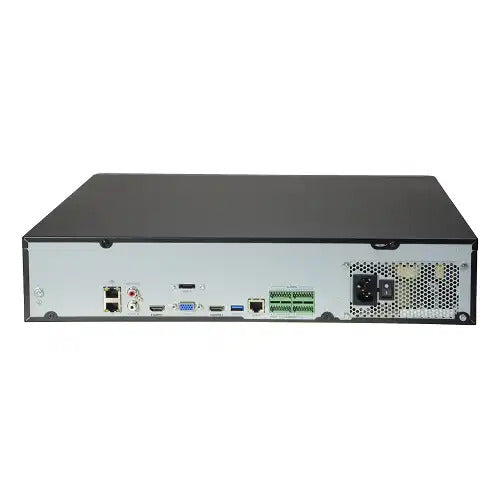

| External Interface | |||||||||
| Network Interface | 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces | ||||||||
| USB Interface | Front panel: 2 x USB2.0,Rear panel: 1 x USB3.0 | ||||||||
| RS232 | 1 | ||||||||
| RS485 | 1 | ||||||||
| Alarm In | 16-ch | ||||||||
| Alarm Out | 4-ch | ||||||||
| General | |||||||||
| Power Supply | 100~240 VAC Power Consumption: ≤ 25 W (without HDD) |
||||||||
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | ||||||||
| Dimensions (W×D×H) | 442mm ×426mm× 89mm (17.4" × 16.8"× 3.5") | ||||||||
| Weight (without HDD) | ≤ 5.7Kg (12.57lb) | ||||||||
| Certification | |||||||||
| Certification | CE, FCC, UL, RoHS, WEEE | ||||||||
| CE | EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 | ||||||||
| FCC | Part15 Subpart B, ANSI C63.4 | ||||||||
