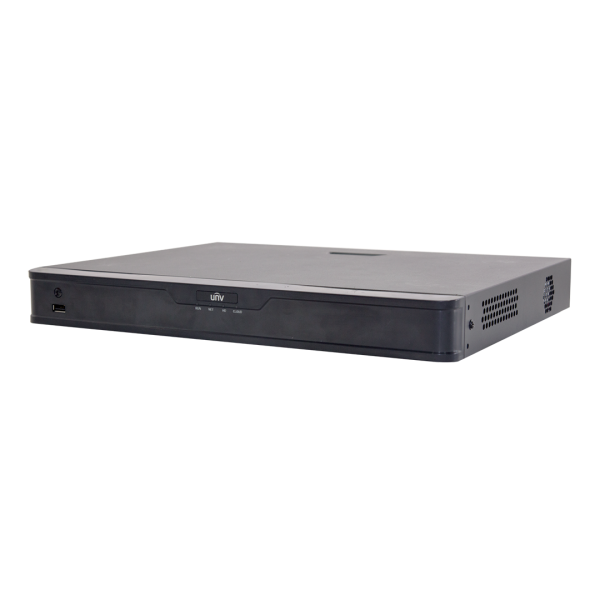

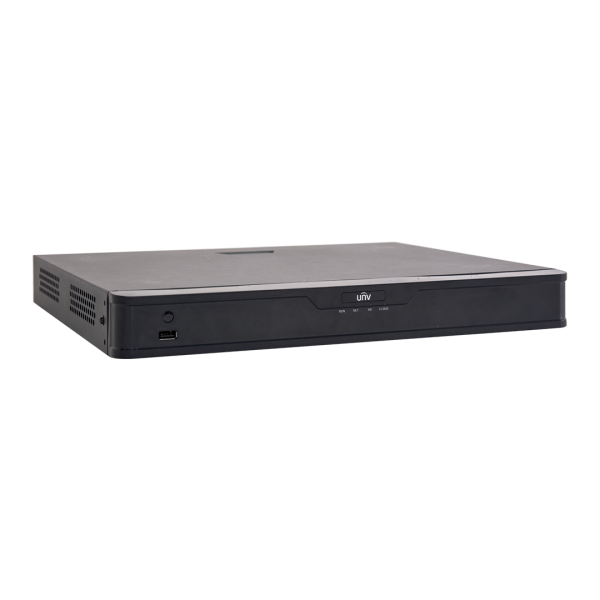

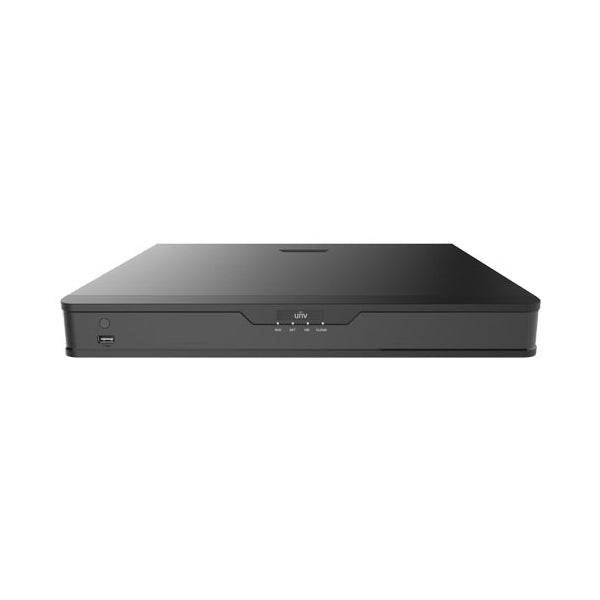

UNV 8MP 16-Ch 2 SATA HDD PoE NDAA Audio Uniview IP Surveillance Security NVR
UNV 8MP 16-Ch 2 SATA HDD PoE NDAA Audio Uniview IP Surveillance Security NVR
SKU:NVR302-16S2-P16
Regular price
$869.00 USD
Regular price
Sale price
$869.00 USD
Unit price
/
per
UNV 8MP 16-Ch 2 SATA HDD PoE NVR Uniview IP Security Recorder
The Uniview 16-Ch with 8 Megapixels resolution recording.
Key Features:
Compression: Ultra 265/H.265/H.264
Video output:HDMI and VGA
Max.Recording Resolution:8MP
Hard drive Ports:2 SATA interfaces
Max.Storage Capacity:10TB
Color:Black
Specification:
Video/Audio Input |
||
IP Video Input | 16-ch | |
Two-way Audio Input | 1-ch, RCA | |
Network |
||
Incoming Bandwidth | 160Mbps | |
Outgoing Bandwidth | 64Mbps | |
Remote Users | 128 | |
Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP | |
Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows | |
Video/Audio Output |
||
HDMI/VGA Output | HDMI: 4K (3840x2160@30), 1920X1080@60, 1920X1080@50, 1600X1200@60, 1280X1024@60, 1280X720@60, 1024X768@60 VGA: 1920X1080@60, 1920X1080@50, 1280X1024@60, 1280X720@60, 1024X768@60 | |
Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
Audio Output | 1-ch, RCA | |
Audio Compression | G.711A, G.711U | |
Synchronous Playback | 16-ch | |
Live view display | 1/4/6/8/9/16 | |
Corridor Mode Screen | 3/4/5/7/9/10/12/16 | |
Snapshot |
||
FTP/Schedule/Event Snapshot | 4-ch snapshot, up to D1 resolution | |
Decoding |
||
Decoding format | Ultra 265/H.265/H.264 | |
Live view/Playback | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
Capability | 2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P@30, 16 x 720P@30 | |
Hard Disk |
||
SATA | 2 SATA interfaces | |
Capacity | Up to 10TB for each disk | |
Smart |
||
VCA Detection by Camera | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking | |
VCA Search | Behavior Search | |
People counting | People Flow Counting, Crowd Density Monitoring | |
Smart Intrusion Prevention (SIP) by Camera | 8-ch | |
General Alarm |
||
General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection | |
Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | |
External Interface |
||
Network Interface | 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface | |
USB Interface | Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0 | |
Alarm In | 4-ch | |
Alarm Out | 1-ch | |
RS232 | NA | |
RS485 | NA | |
PoE |
||
Interface | 16 RJ-45 10M/100M self-adaptive Ethernet Interface | |
Max Power | Max 30W for single port Max 240W in total | |
Supported Standard | ||
General |
||
Power Supply | 100 ~ 240 V AC Power Consumption: ≤10W(without HDD) | |
Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | |
Dimensions (W×D×H) | 380mm ×315mm × 53mm (14.9" × 12.4" ×2.1") | |
Weight (without HDD) | ≤2.6kg (5.73lb) | |
Certification |
||
Certification | CE, FCC, UL, RoHS, WEEE | |
CE | EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 | |
FCC | Part15 Subpart B, ANSI C63.4 |
