UNV 8-Ch 8MP PoE 2 SATA NDAA ONVIF Audio IP Uniview Surveillance Security NVR
UNV 8-Ch 8MP PoE 2 SATA NDAA ONVIF Audio IP Uniview Surveillance Security NVR
SKU:NVR302-08S2-P8
Regular price
$659.00 USD
Regular price
Sale price
$659.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

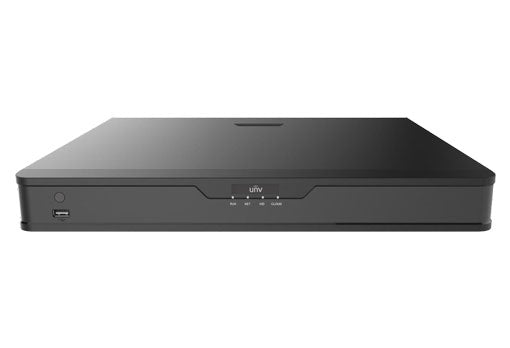

UNV 8-Ch 8MP PoE 2 SATA HDD NDAA Uniview IP Security NVR with Ultra 265/H.265/H.264
The Uniview 8-Ch with ANR technology to enhance the storage.
Key Features:
Compression: Ultra 265/H.265/H.264
Channel:8
Pre-Installed Storage: No HDD
Video output:1-ch HDMI, 1-ch VGA
Max.Recording Resolution:8MP
Hard drive Ports:2 SATA interfaces
Max.Storage Capacity:10TB
Color:Black
Description:
- The Uniview is a state-of-the-art 8-channel Network Video Recorder (NVR) that brings together cutting-edge technology and user-friendly features to create a robust security solution. The keeps you in control, no matter where you are. It ensures your data remains secure. It is compatible with a wide range of IP cameras providing flexibility in choosing the right camera for your needs. It has 8-Channel 8MP PoE IP Network Security Video Recorder is a powerhouse in the realm of security solutions.
Specification:
Video/Audio Input |
||
| IP Video Input | 8-ch | |
| Two-way Audio Input | 1-ch, RCA | |
Network |
||
| Incoming Bandwidth | 80Mbps | |
| Outgoing Bandwidth | 64Mbps | |
| Remote Users | 128 | |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP | |
| Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows | |
Video/Audio Output |
||
| HDMI/VGA Output | HDMI: 4K (3840x2160@30), 1920X1080@60, 1920X1080@50, 1600X1200@60, 1280X1024@60, 1280X720@60, 1024X768@60 VGA: 1920X1080@60, 1920X1080@50, 1280X1024@60, 1280X720@60, 1024X768@60 | |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Audio Output | 1-ch, RCA | |
| Audio Compression | G.711A, G.711U | |
| Synchronous Playback | 8-ch | |
| Liveview display | 1/4/6/8/9 | |
| Corridor Mode Screen | 3/4/5/7/9 | |
Snapshot |
||
| FTP/Schedule/Event Snapshot | 4-ch snapshot, up to D1 resolution | |
Decoding |
||
| Decoding format | Ultra 265/H.265/H.264 | |
| Live view/Playback | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Capability | 2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P @30 | |
Hard Disk |
||
| SATA | 2 SATA interfaces | |
| Capacity | Up to 10TB for each disk | |
Smart |
||
| VCA Detection by Camera | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking | |
| VCA Search | Behavior Search | |
| People counting | People Flow Counting, Crowd Density Monitoring | |
| Smart Intrusion Prevention (SIP) by Camera | 8-ch | |
General Alarm |
||
| General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection | |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | |
External Interface |
||
| Network Interface | 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface | |
| USB Interface | Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0 | |
| Alarm In | 4-ch | |
| Alarm Out | 1-ch | |
| RS232 | NA | |
| RS485 | NA | |
PoE |
||
| Interface | 8 RJ-45 10M/100M self-adaptive Ethernet Interface | |
| Max Power | Max 30W for single port Max 130W in total | |
| Supported Standard | IEEE 802.3af/at | |
General |
||
| Power Supply | 100 ~ 240 V AC Power Consumption: ≤10W(without HDD) | |
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | |
| Dimensions (W×D×H) | 380mm ×315mm × 53mm (14.9" × 12.4" ×2.1") | |
| Weight (without HDD) | ≤2.6kg (5.73lb) | |
Certification |
||
| Certification | CE, FCC, UL, RoHS, WEEE | |
| CE | EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 | |
| FCC | Part15 Subpart B, ANSI C63.4 | |
