Uniview NVR301-04B-P4-IQ 12MP Ultra HD PoE 4-Ch 1U with AI Facial Recognition 1 SATA HDD Bay 2-Way Audio IP Network Security NVR
Uniview NVR301-04B-P4-IQ 12MP Ultra HD PoE 4-Ch 1U with AI Facial Recognition 1 SATA HDD Bay 2-Way Audio IP Network Security NVR
SKU:NVR301-04B-P4-IQ
Couldn't load pickup availability
Uniview NVR301-04B-P4-IQ 12MP 4Ch NVR Ultra HD PoE 4-Ch 1U with 1 SATA HDD Bay 2-Way Audio IP Network Security NVR
Key Features:
Support Ultra 265/H.265/H.264 video formats
4-channel input
Plug & Play with 4 independent PoE network interfaces
Support mainstream cameras of ONVIF conformance
Support HDMI and VGA simultaneous output
Up to 12 Megapixels resolution recording
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade
Description:

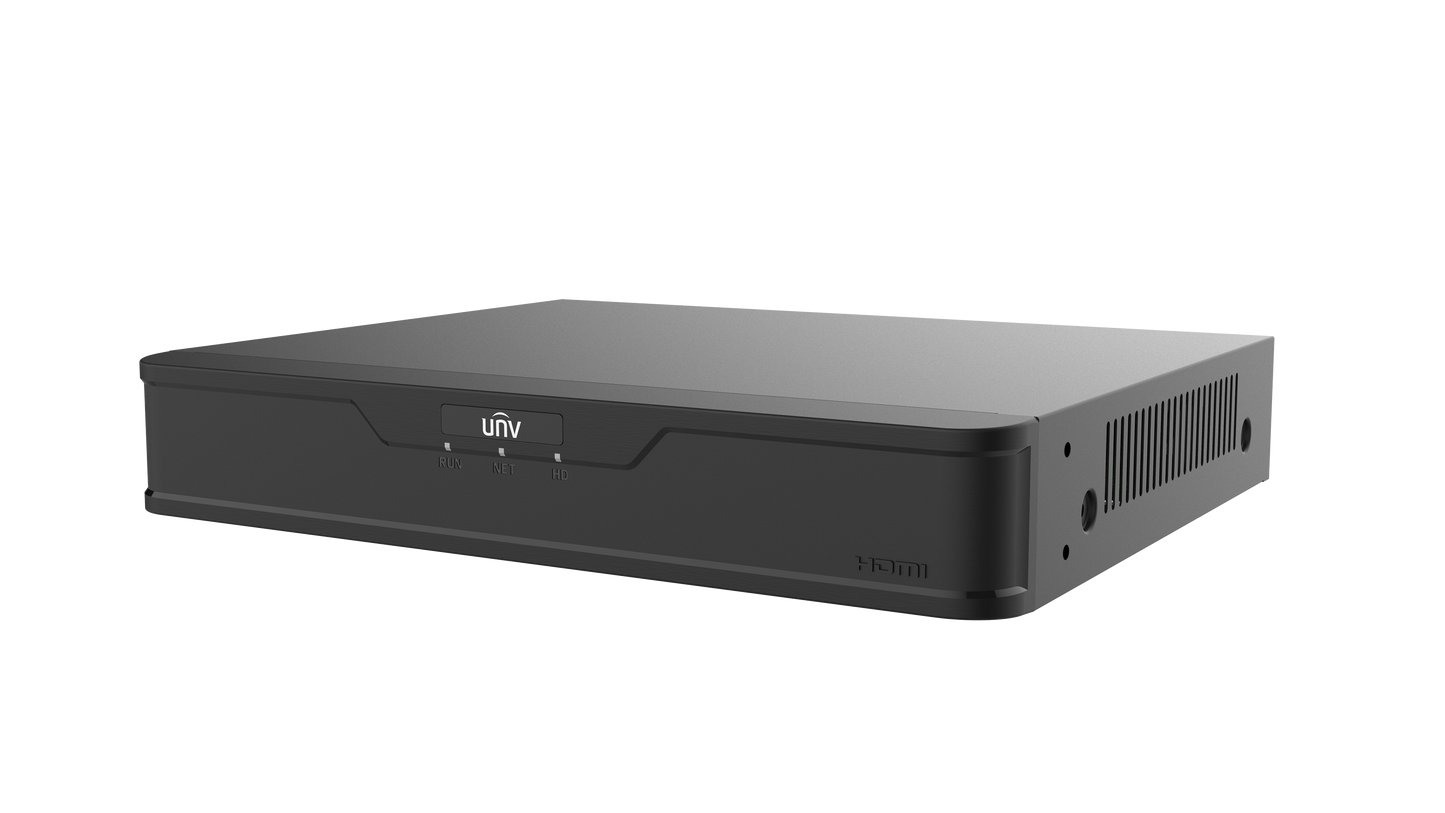

Easy Plug-and-Play Interface
Connect up to 4 IP cameras to the integrated Power-over-Ethernet (PoE) ports for a truly plug-and-play surveillance experience. Each security camera only requires a single ethernet cable to connect it to the NVR thanks to PoE technology.
This all-in-one ethernet cable provides both power and video transmission to the camera up to 300ft. This means that you won't need to run a separate power cable to your cameras, making installation much easier!

Recording Schedules
If you want 24/7 video recording, the NVR301-04B-P4-IQ NVR is a great choice. You can rest assured that your surveillance system never misses a moment with it's ability to add 1 Hard Drive/s, Up to 10TB.
You can also setup custom recording schedules based on days and times of the week, or based on events such as motion detection.

Local & Remote Viewing
This NVR can be used with or without being connected to the Internet. You can view your NVR locally by connecting it to any HD-TV or monitor. If connected to the internet, you are also able to view your NVR remotely by downloading the following app to your smart device.
Specification:
Network | ||||||||
Incoming Bandwidth | 80 Mbps | |||||||
Outgoing Bandwidth | 80 Mbps | |||||||
Remote Users | 128 | |||||||
Protocols | TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4 | |||||||
Browser(Plugin) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
Two-way Audio | ||||||||
Two-way Audio | 1-ch,RCA(Using the audio input and output) | |||||||
Snapshot | ||||||||
FTP/Schedule/Event Snapshot | 4-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution) | |||||||
Recording | ||||||||
Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF | |||||||
Num of Concurrent Playback | 16-ch |
Hard Disk | ||||||||
SATA | 1 SATA Interfaces | |||||||
Capacity | Up to 10 TB for each HDD |
Working Environment | ||||||||
Working Temperature | -10 ℃ ~ + 55 ℃ (+14 ℉ ~ +131 ℉) | |||||||
Working Humidity | ≤ 90% RH (non-condensing) | |||||||
Power Consumption (without HDD) | ≤ 12W | |||||||
Dimensions | ||||||||
Weight (without HDD) | ≤ 2.7Kg (6.0lb) | |||||||
Height | 1U | |||||||
Dimensions | 260mm × 222mm × 47mm (10.2"×8.7"×1.8") | |||||||
Certification | ||||||||
Certification | CE; FCC; UL; RoHS; WEEE | |||||||
CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 | |||||||
FCC | Part15 Subpart B |
