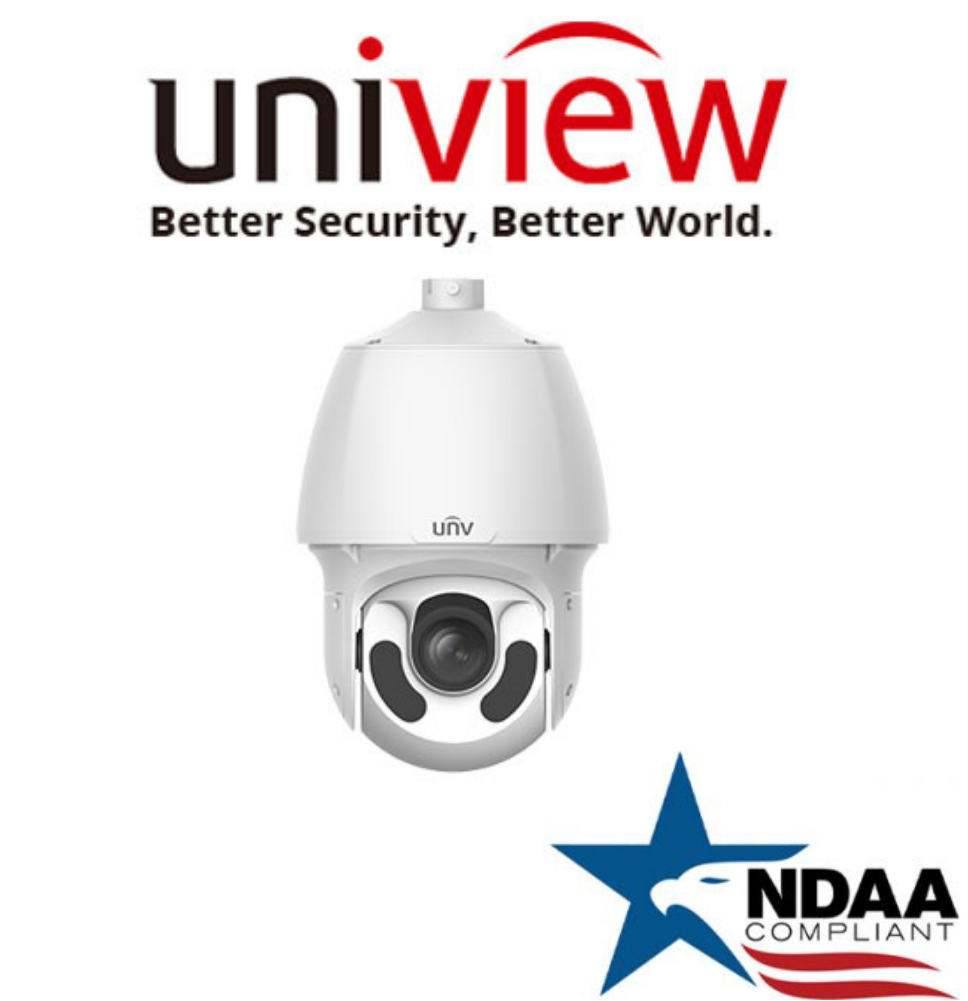

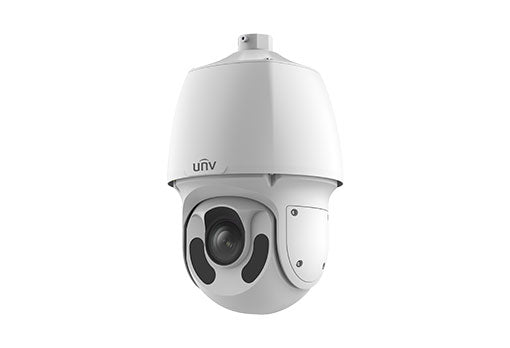

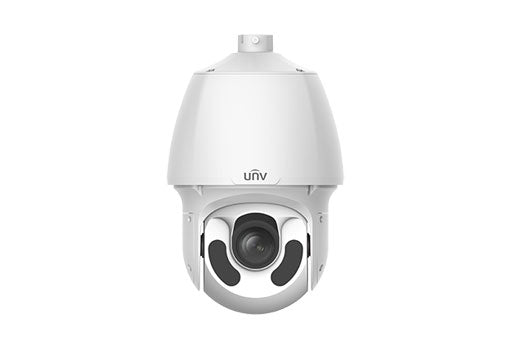

UNV 2MP PTZ 1080p NDAA 2-way Audio Lighthunter Uniview IP Network SecurityCamera
UNV 2MP PTZ 1080p NDAA 2-way Audio Lighthunter Uniview IP Network SecurityCamera
SKU:IPC6622SR-X33-VF
Regular price
$1,739.00 USD
Regular price
Sale price
$1,739.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
UNV 1080p 2MP IP66 FullHD PTZ NDAA 2-Way Audio Uniview IP Network Security Dome Camera with 4.5 ~ 148.5mm zoom lens
The Uniview PTZ is a security surveillance camera.
Key Features:
Compression : Ultra 265, H.265, H.264, MJPEG
Megapixel: 2MP
Camera Style: PTZ
Lens Type :Motorized Zoom lens
Lens Size : 4.5~ 148.5mm
Protection Code : IP66
Dimensions (Ø x H) :Φ227mm*384.8mm (Φ8.9”x 15.1”)
Weight: 5.39kg (11.88lb)
Environmental : outdoor
Description:
In today's fast-paced world security is paramount. Whether it's safeguarding your home or protecting your business having a reliable security system in place is no longer a luxury it's a necessity. The Uniview Outdoor Full HD PTZ IP Security Dome Camera represents a significant step forward in modern surveillance technology. The Uniview takes PTZ capabilities to the next level. PTZ or Pan-Tilt-Zoom cameras, offer unparalleled flexibility when it comes to monitoring your surroundings. With Full HD resolution this camera ensures that every detail is crystal clear. With remote monitoring capabilities you can check in on your property from anywhere in the world. Stay connected and in control 24/7.
Specification:
Camera |
|||||
| Sensor | 1/2.8", 2.0 megapixel, progressive scan, CMOS | ||||
| Min. Illumination | Colour: 0.001 Lux (F1.5, AGC ON) 0 Lux with IR |
||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
| WDR | 120dB | ||||
| S/N | >52dB | ||||
Lens |
|||||
| Lens | 4.5 ~ 148.5mm, AF automatic focusing and motorized zoom lens | ||||
| Digital Zoom | 16 | ||||
| Optical Zoom | 33 | ||||
| Iris | Auto; F1.5 ~ F4.0 | ||||
| Field of View (H) | 56.2° ~ 2.6° | ||||
| Field of View (V) | 33.5° ~ 1.4° | ||||
| Field of View (D) | 69.1° ~ 3.1° | ||||
DORI |
|||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 4.5 | 72.9(239.3ft) | 29.2(95.7ft) | 14.6(47.9ft) | 7.3(23.9ft) | |
| 148.5 | 2187.9 (7178.3ft) | 875.2(2871.3ft) | 437.6(1435.7ft) | 218.8(717.8ft) | |
Illuminator |
|||||
| IR Range | Up to 150m (492 ft) IR range | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
Video |
|||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| Frame Rate | Main Stream: 2MP(1920*1080),Max 60fps; Sub Stream: 2MP (1920*1080), Max 60fps; Third Stream: D1 (720*576), Max 60fps; |
||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||
| U-code | Support | ||||
| ROI | Support | ||||
| Video Stream | Triple streams | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | 24 areas, up to 4 areas per scene | ||||
Image |
|||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Digital Noise Reduction | 2D/3D DNR | ||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||
| HLC | Support | ||||
| BLC | Support | ||||
| Defog | Digital Defog | ||||
Intelligent |
|||||
| Smart Intrusion Prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | ||||
| People Counting | Support people flow counting and crowd density monitoring | ||||
Events |
|||||
| Basic Detection | Motion detection, Audio detection, Tampering Alarm | ||||
| Auto Tracking | Support | ||||
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, | ||||
Audio |
|||||
| Audio Compression | G.711U,G.711A | ||||
| Audio Bitrate | 64 Kbps | ||||
| Two-way Audio | Support | ||||
| Suppression | Support | ||||
| Sampling Rate | 8 kHz | ||||
Storage |
|||||
| Edge Storage | Micro SD, up to 256 GB | ||||
| Network Storage | ANR,NAS(NFS) | ||||
Network |
|||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, etc. | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | ||||
| User/Host | Up to 32 users. 3 user levels: administrator, operator and common user | ||||
| Security | Password protection, strong password, HTTPS encryption, Export operation logs, digest authentication for ONVIF | ||||
| Client | EZStation EZLive EZView |
||||
| Web Browser | Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | ||||
| Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |||||
Pan & Tilt |
|||||
| Pan Range | 360° (endless) | ||||
| Pan Speed | 0.1°/s ~ 200°/s | ||||
| Preset speed: 300°/s | |||||
| Tilt Range | –15° ~ 90° (auto reverse) | ||||
| Tilt Speed | 0.1° ~ 200°/s | ||||
| Preset speed: 240°/s | |||||
| Number of Presets | 1024 | ||||
| Preset Patrol | 16 patrols, up to 64 presets for each patrol | ||||
| Route Patrol | 16 patrols, up to 32 actions for each patrol | ||||
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol | ||||
| Patrol Stay Time | 15s~1800s | ||||
| Preset Image Freeze | Support | ||||
| Home Position | Support | ||||
Interface |
|||||
| Audio I/O | 1/1 | ||||
| Alarm I/O | 2/1 | ||||
| Serial Port | 1 RS485 | ||||
| Built-in Mic | N/A | ||||
| Built-in Speaker | N/A | ||||
| WIFI | N/A | ||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||
| Video Output | 1 BNC | ||||
Certification |
|||||
| EMC | CE-EMC FCC |
||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL |
||||
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863) | ||||
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) | ||||
General |
|||||
| Power | AC 24V±25%, DC 24V±25%, PoE (PSE Required) | ||||
| Power consumption: Max 41W | |||||
| Power Interface | Wires with cold-pressed terminal | ||||
| Dimensions (Ø x H) | Ø227 x 384.8mm (Ø8.9” x 15.1”) | ||||
| Weight | 5.39kg(11.88lb) | ||||
| Working Environment | -40°C ~70°C (-40°F ~ 158°F) | ||||
| Storage Environment | -40°C ~70°C (-40°F ~ 158°F) | ||||
| Surge protection | 6KV | ||||
| Reset Button | Support | ||||
