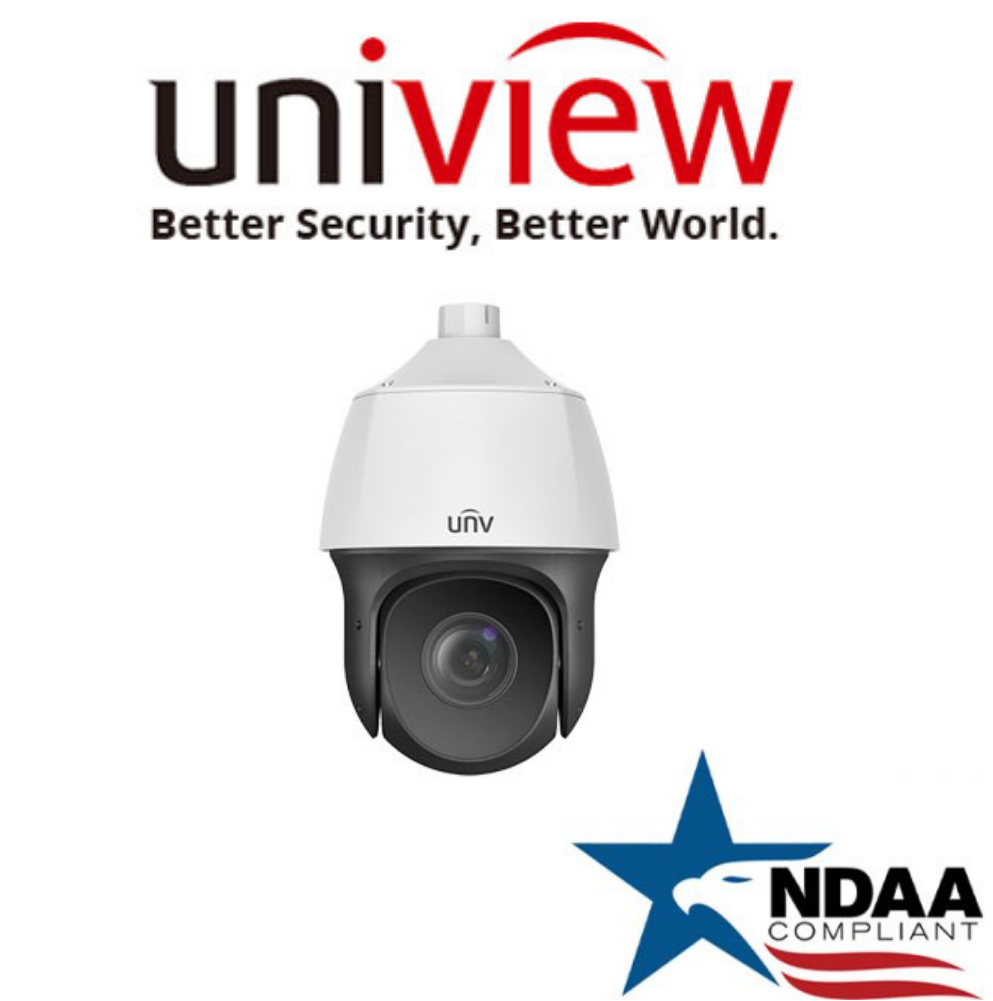

UNV 1080p 2MP FullHD NDAA 2-Way Audio PTZ Uniview IP Network Security Camera
UNV 1080p 2MP FullHD NDAA 2-Way Audio PTZ Uniview IP Network Security Camera
SKU:IPC6612SR-X33-VG
Regular price
$1,609.00 USD
Regular price
Sale price
$1,609.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

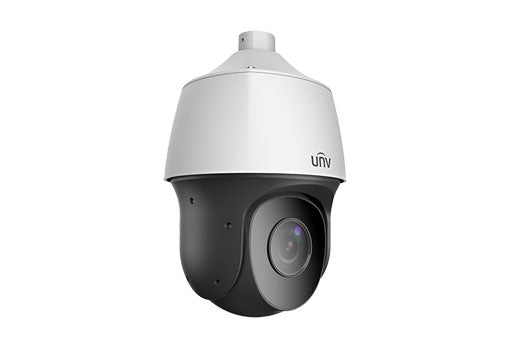

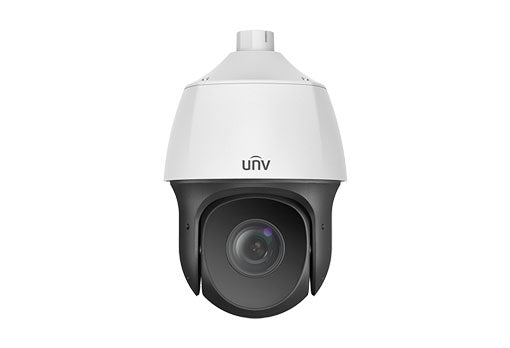

UNV 1080p 2MP FullHD NDAA 2-Way Audio PTZ Uniview IP Network Security Dome Camera with 4.5~ 148.5mm Zoom Lens
The Uniview PTZ camera is a modern technology security product.
Key Features:
Compression : Ultra 265, H.265, H.264, MJPEG
Megapixel: 2MP
Camera Style: PTZ
Lens Type :Motorized Zoom lens
Lens Size : 4.5~ 148.5mm
Protection Code : IP66
Dimensions (Ø x H) :Φ220mm*370mm (Φ8.7”x 14.6”)
Weight: 3.4kg (7.48lb)
Environmental : outdoor
Description:
In today's fast-paced world security remains a paramount concern for both residential and commercial spaces. As the demand for advance surveillance systems grows the market responds with cutting-edge solutions. The boasts Full HD resolution ensuring crystal-clear images and videos. This camera's PTZ functionality ensures it can cover a wide area effectively. PTZ stands for Pan, Tilt and Zoom, representing the core functionalities of these cameras. It features infrared night vision technology allowing it to capture high-quality footage even in complete darkness. Its rug build ensures that it continues to operate seamlessly in rain or shine. It ensures your property is protect around the clock. you can access the camera remotely via your smartphone or computer.
Specification:
Camera |
|||||
| Sensor | 1/2.8", 2.0 megapixel, progressive scan, CMOS | ||||
| Min. Illumination | Colour: 0.001 Lux (F1.5, AGC ON) 0 Lux with IR |
||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Shutter | Auto, 1 ~ 1/100000s | ||||
| WDR | 120dB | ||||
| S/N | >52dB | ||||
Lens |
|||||
| Lens type | 4.5~ 148.5mm, AF automatic focusing and motorized zoom lens | ||||
| Optical Zoom | 33 | ||||
| Iris | Autol; F1.5 ~ F4.0 | ||||
| Field of View (H) | 56.23° ~ 2.57° | ||||
| Field of View (V) | 33.46° ~ 1.44° | ||||
| Field of View (D) | 69.16° ~ 3.03° | ||||
DORI |
|||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 4.5 | 72.9(239.3ft) | 29.2(95.7ft) | 14.6(47.9ft) | 7.3(23.9ft) | |
| 148.5 | 2187.9(7178.3ft) | 875.2(2871.3ft) | 437.6(1435.7ft) | 218.8(717.8ft) | |
Illuminator |
|||||
| IR Range | Up to 150m (492 ft) IR range | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
Video |
|||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| Frame Rate | Main Stream: 2MP(1920*1080),Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; Third Stream: D1 (720*576), Max 30fps; |
||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||
| U-code | Support | ||||
| ROI | Up to 8 areas | ||||
| Video stream | Triple streams | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | 24 areas, up to 4 areas per scene | ||||
Image |
|||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| Smart IR | Support | ||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||
| HLC | Support | ||||
| BLC | Support | ||||
| Defog | Digital Defog | ||||
Intelligent |
|||||
| Smart Intrusion Prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | ||||
Events |
|||||
| Basic Detection | Motion detection, Audio detection, Tampering Alarm | ||||
| Auto Tracking | Support | ||||
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
Audio |
|||||
| Audio Compression | G.711U,G.711A | ||||
| Audio Bitrate | 64 Kbps | ||||
| Two-way Audio | Support | ||||
| Suppression | Support | ||||
| Sampling Rate | 8KHZ | ||||
Storage |
|||||
| Edge Storage | Micro SD, up to 256 GB | ||||
| Network Storage | ANR,NAS(NFS) | ||||
Network |
|||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, etc. | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK | ||||
| User/Host | Up to 32 users. 3 user levels: administrator, operator and common user | ||||
| Security | Password protection, strong password, HTTPS encryption, Export operation logs, digest authentication for ONVIF | ||||
| Client | EZStation EZLive EZView |
||||
| Web Browser | Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | ||||
| Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |||||
Pan & Tilt |
|||||
| Pan Range | 360° (endless) | ||||
| Pan Speed | 2°/s ~ 75°/s | ||||
| Preset speed: 180°/s | |||||
| Tilt Range | –15° ~ 90° (auto reverse) | ||||
| Tilt Speed | 2°/s ~ 75°/s | ||||
| Preset speed: 80°/s | |||||
| Number of Presets | 1024 | ||||
| Preset Patrol | 16 patrols, up to 64 presets for each patrol | ||||
| Route Patrol | 16 patrols, up to 32 actions for each patrol | ||||
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol | ||||
| Patrol Stay Time | 15s~1800s | ||||
| Preset Image Freeze | Support | ||||
| Home Position | Support | ||||
Interface |
|||||
| Audio I/O | 1/1 | ||||
| Alarm I/O | 2/1 | ||||
| Serial Port | 1 RS485 | ||||
| Built-in Mic | N/A | ||||
| Built-in Speaker | N/A | ||||
| WIFI | N/A | ||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||
| Video Output | N/A | ||||
Certification |
|||||
| EMC | CE-EMC FCC |
||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL |
||||
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863) | ||||
| Protection | IP66 | ||||
General |
|||||
| Power | DC12V±10% , PoE+ (IEEE802.3 at) | ||||
| Power consumption: Max 25W | |||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||
| Dimensions (Ø x H) | Ø220 x 370mm (Ø8.7" x 14.6") | ||||
| Weight | 3.4kg(7.48lb) | ||||
| Working Environment | -40℃~65℃(-40°F ~ 149°F) | ||||
| Storage Environment | -40℃~70℃(-40°F ~ 158°F) | ||||
| Surge protection | 6KV | ||||
| Reset button | Support | ||||
