UNV 4MP HD IP67 PoE NDAA Audio Uniview IP Network Security Surveillance Camera
UNV 4MP HD IP67 PoE NDAA Audio Uniview IP Network Security Surveillance Camera
SKU:IPC3634SB-ADZK-I0
Regular price
$579.00 USD
Regular price
Sale price
$579.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

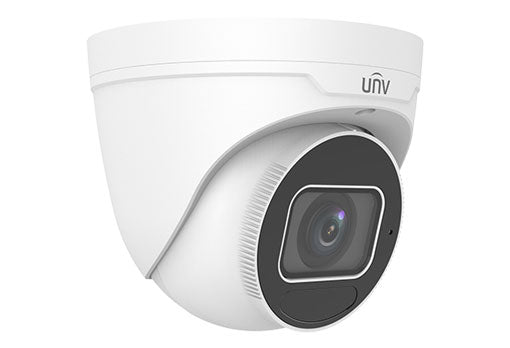

UNV LightHunter 4MP IP67 IK10 PoE HD NDAA Compliant IR VF Eyeball Uniview IP Security Camera
Uniview LightHunter for modern technology camera.
Key Features:
Camera Style: Eyeball
Resolution: 4MP
Compression: Ultra 265,H.265, H.264, MJPEG
Lens Type : Fixed Lens
Lens Size : 2.7 ~ 13.5mm
Protection Code : IK10 IP67
Color : White
Environmental : Outdoor
Description:
Uniview, a trusted name in the realm of surveillance technology, has introduced the Turret IP Security Camera. Turret cameras offer a wide-angle view, ensuring that no corner goes unnoticed. Its dome-shaped housing is not only stylish but also vandal-resistant, making them ideal for high-risk areas. Turret cameras are built to withstand harsh weather conditions ensuring uninterrupted surveillance year-round. The Uniview has design this camera with user-friendliness in mind.
Specification:
Camera |
||||||||
| Sensor | 1/3", 4.0megapixel, progressive scan, CMOS | |||||||
| Minimum Illumination | Colour: 0.002 lux (F1.2, AGC ON) 0 lux with IR on | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 75° | Rotate: 0° ~ 360° | |||||
| WDR | 120dB | |||||||
| S/N | >56dB | |||||||
Lens |
||||||||
| Lens | 2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens | |||||||
| Iris | Fixed | |||||||
| Field of View (H) | 98.26°~ 31.35° | |||||||
| Field of View (V) | 54.76°~ 18.55° | |||||||
| Field of View (D) | 127.74°~36.99° | |||||||
DORI |
||||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||
| 2.7 | 60.8 | 24.3 | 12.2 | 6.1 | ||||
| 13.5 | 303.8 | 121.5 | 60.8 | 30.4 | ||||
Illuminator |
||||||||
| IR Range | Up to 40m (131ft) IR range | |||||||
| Wavelength | 850nm | |||||||
| IR On/Off Control | Auto/Manual | |||||||
Video |
||||||||
| Video Compression | Ultra 265,H.265, H.264, MJPEG | |||||||
| H.264 code profile | Baseline profile, Main profile, High profile | |||||||
| Frame Rate | Main Stream: 4MP Sub Stream: 720P Third Stream: D1 | |||||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||||
| U-code | Support | |||||||
| OSD | Up to 8 OSDs | |||||||
| Privacy Mask | Up to 4 areas | |||||||
| ROI | Up to 8 areas | |||||||
| Video Stream | Triple streams | |||||||
Image |
||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||
| Smart IR | Support | |||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||||
| Dewarping | N/A | |||||||
| HLC | Support | |||||||
| BLC | Support | |||||||
| Defog | Digital Defog | |||||||
Intelligent |
||||||||
| Smart intrusion prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | |||||||
| Statistical Analysis | People counting, support people flow counting and crowd density monitoring | |||||||
| Events | ||||||||
| Basic Detection | Motion detection, Ultra motion detection, tampering alarm, audio detection | |||||||
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication | |||||||
Audio |
||||||||
| Audio Compression | G.711 | |||||||
| Audio Bitrate | 64 Kbps | |||||||
| Suppression | Support | |||||||
| Sampling Rate | 8KHZ | |||||||
Storage |
||||||||
| Edge Storage | Micro SD, up to 256GB | |||||||
| Network Storage | ANR, NAS(NFS) | |||||||
Network |
||||||||
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, etc. | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK | |||||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | |||||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | |||||||
| Client | EZStation EZView EZLive | |||||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |||||||
| Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | ||||||||
Interface |
||||||||
| Audio I/O | N/A | |||||||
| Alarm I/O | N/A | |||||||
| RS485 | N/A | |||||||
| Built-in Mic | Support | |||||||
| Built-in Speaker | N/A | |||||||
| WIFI | N/A | |||||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | |||||||
| Video Output | N/A | |||||||
Certifications |
||||||||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | |||||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | |||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | |||||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) | |||||||
General |
||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||
| Power consumption: Max 7.0W | ||||||||
| Power Interface | Ø 5.5mm coaxial power plug | |||||||
| Dimensions (Ø x H) | Φ129 x 110mm (Ø5.1” x 4.3”) | |||||||
| Weight | 0.69kg (1.52lb) | |||||||
| Material | Metal | |||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
| Surge Protection | 6KV | |||||||
| Reset Button | Support | |||||||
