• Uniview IPC322LB-AF28WK-G WIFI NDAA Dome Security Camera
1 4

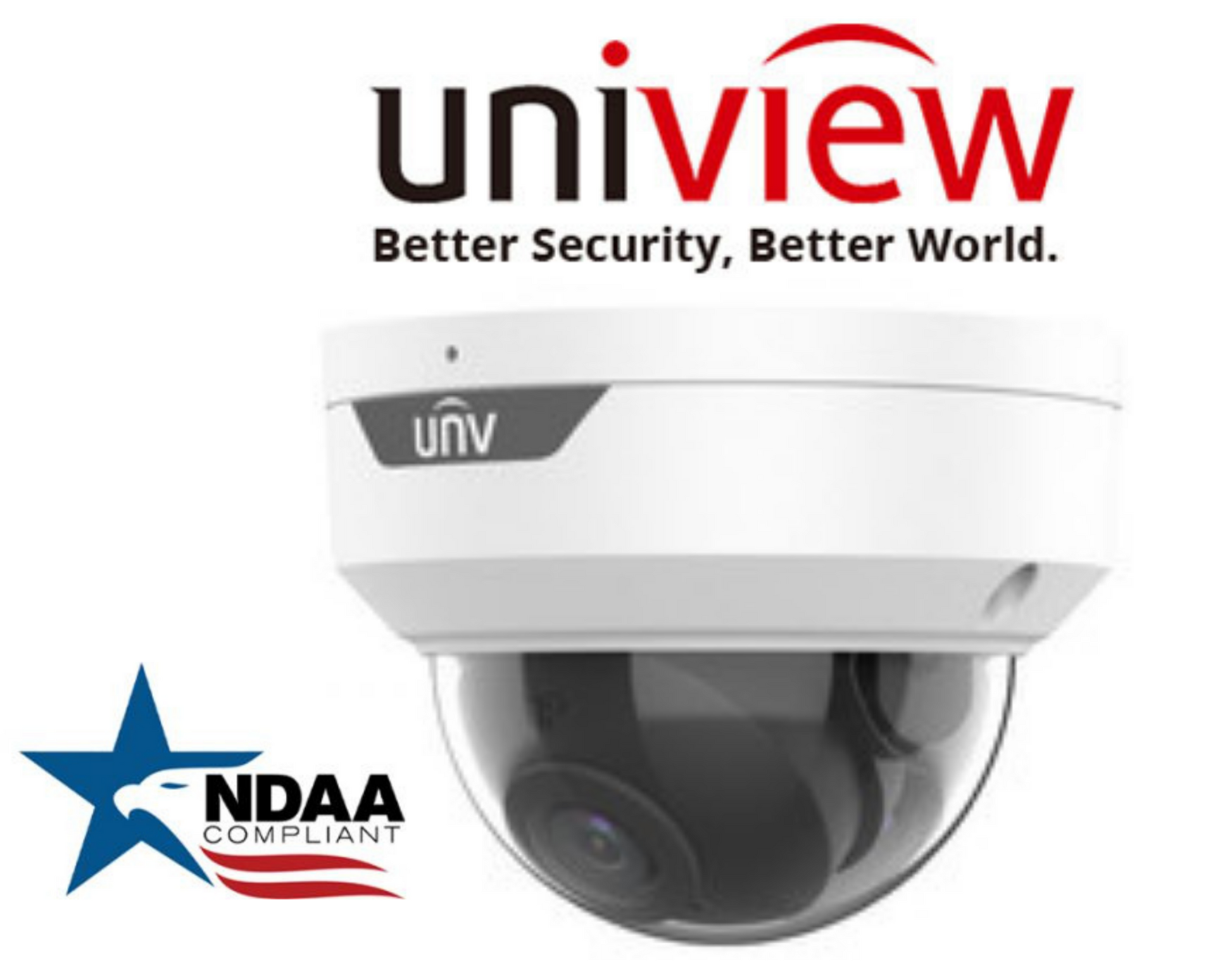

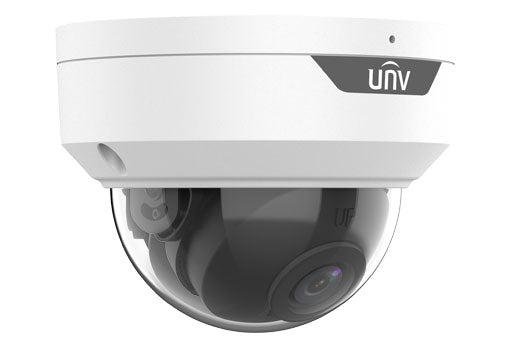

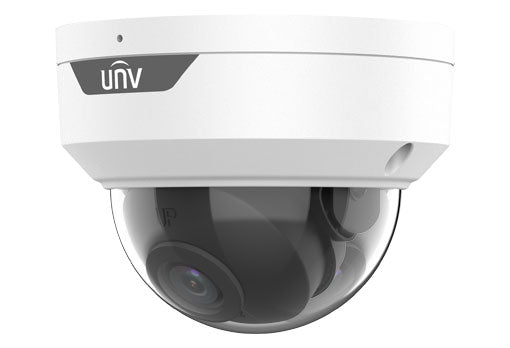

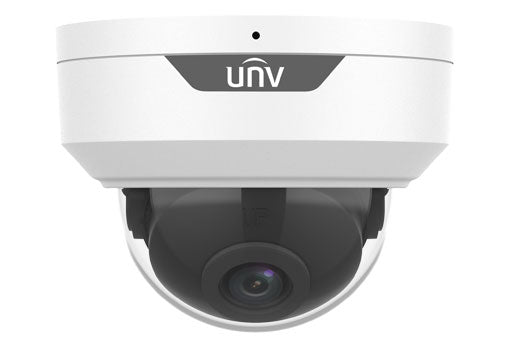

UNV 2MP IP67 NDAA Audio Outdoor Uniview Network Dome Security Camera 2.8mm Lens

UNV 2MP IP67 NDAA Audio Outdoor Uniview Network Dome Security Camera 2.8mm Lens

IPC322LB-AF28WK-G

$169.00 USD
$169.00 USD
Sale Sold out
Shipping calculated at checkout.

UNV WIFI Dome 2MP M12 IR IP67 IK10 Outdoor Built-In Uniview Security Camera 2.8mm Fixed Lens with Night Vision

The Uniview  WIFI Dome with 128 G Micro SD card.

Features:

Compression : Ultra 265, H.265, H.264,MJPEG
Camera Style: Dome
Megapixel: 2MP
Lens Type : Fixed Lens
Lens Size : 2.8mm
Protection Code : IP67
Color : White
Dimensions (Ø x H): Φ109 x 83 mm (Ø4.29” x 3.3”)
Weight: 0.32 kg (0.71 lb)
Environmental: Outdoor
Audio Support : Built-in Mic

Description:

In today's fast-paced world security has become a paramount concern for both individuals and businesses. A wide range of advance surveillance equipment have come out in response to the need to secure our homes, offices and outdoor areas. One such cutting-edge innovation is the Uniview  2MP M12 IR IP67 IK10 Outdoor Built-In Wifi Dome Security Camera.  This camera can see in complete darkness, offering 24/7 surveillance capabilities. Stay connected to your security system no matter where you are. The mobile app allows you to access live feeds and review footage remotely giving you peace of mind on the go.

Specification:


Camera
Sensor 1/2.9", progressive scan , 2.0 megapixel, CMOS
Min. Illumination Colour: 0.01 lux (F2.0, AGC ON)
0 lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1~1/100000 s
Adjustment angle Pan: 0°~352° Tilt: 0°~70° Rotate: 0°~350°
S/N >52dB
WDR DWDR
Lens
Lens Type 2.8mm @F2.0
Iris Fixed
Field of View (H) 101.1°
Field of View (V) 55.0°
Field of View (D) 111.0°
DORI
DORI Distance Lens Detect(m) Observe(m) Recognize(m) Identify(m)
2.8mm 45.0 18.0 9.0 4.5
Illuminator
IR Range Up to 30m (98 ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~6 Mbps
U-code Support
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Video stream Dual streams
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR Support
Flip Normal/Vertical/Horizontal/180°
Dewarping N/A
HLC Support
BLC Support
Defog Digital Defog
Events
Basic Detection Human body detection, Motion detection, tampering alarm, audio detection
General Function Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication
Audio
Audio Compression G.711U, G.711A
Audio Bitrate 64 Kbps
Two-way Audio N/A
Suppression Support
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 128GB
Network Storage ANR,NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API , SDK
User/Host Up to 32 users. 2 user levels: administrator and common user
Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Wi-Fi
Wireless Standards IEEE802.11b/g/n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth 20 MHz Support
Modulation Mode 802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM/HT
Security 64/128-bit WEP, WPA-PSK/WPA2-PSK
Transmit Power 802.11b: 17±1.5dBm @11Mbps
802.11g: 14±1.5dBm @54Mbps
802.11n: 12.5±1.5dBm @150Mbps
Receive Sensitivity 802.11b: -90dBm @11Mbps (Typical)
802.11g: -75dBm @54Mbps (Typical)
802.11n: -74dBm @150Mbps(Typical)
Transmission Rate 802.11b: 11Mbps
802.11g: 54Mbps
802.11n: up to 150Mbps
Interface
Audio I/O N/A
Alarm I/O N/A
RS485 N/A
Built-in Mic Support
Built-in Speaker N/A
WIFI Support
Network 1 * RJ45 10M/100M Base-TX Ethernet
Video Output N/A
Certification
EMC CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
RF FCC ID (FCC CFR 47 part15 C)
CE RED (EN 62311: 2008, EN 300 328 V2.2.2(2019-07), EN 301489-1 V2.2.3(2019-11), ETSI EN 301 489-17 V3.2.4(2020-09))
Safety CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
IK10 (IEC 62262:2002)
General
Power DC 12V±25%
Power consumption: Max 4.0W
Power Interface Ø 5.5mm coaxial power plug
Dimensions (Ø x H) Φ109 x 83 mm (Ø4.29” x 3.3”)
Weight 0.32 kg (0.71 lb)
Material Metal + Plastic
Working Environment -30°C ~ +60°C (-22°F ~ 140°F), Humidity:≤95% RH(non-condensing)
Strorage Environment -30°C ~ +60°C (-22°F ~ 140°F), Humidity:≤95% RH(non-condensing)
Surge Protection 4KV
Reset Button Support
