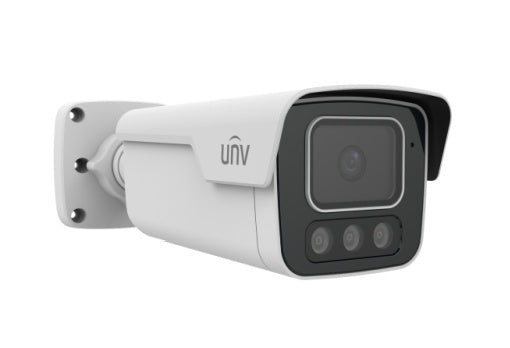

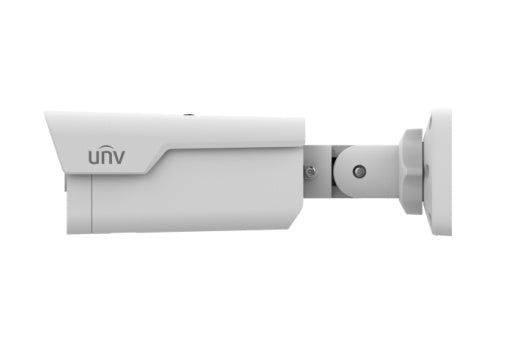

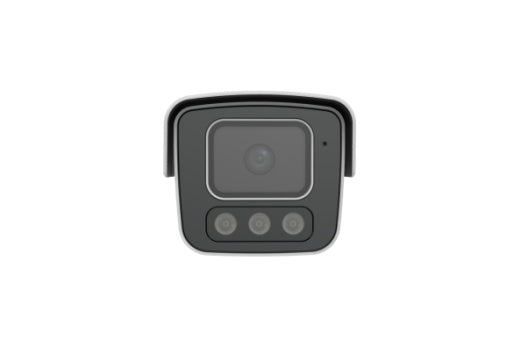

UNV 5MP HD Audio Uniview IR LED Bullet Network IP Security Camera 2.8mm Lens
UNV 5MP HD Audio Uniview IR LED Bullet Network IP Security Camera 2.8mm Lens
SKU:IPC2B15SS-ADF28KMC-I1
Couldn't load pickup availability
UNV 5MP HD Light and Audible Audio Warning Fixed Bullet Uniview Surveillance Network Security Camera
Features:
High quality image with 5MP, 1/2.7"CMOS sensor
5MP
Ultra 265, H.265, H.264, MJPEG
Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves,
Intelligent People Flow Counting and Crowd Density Monitoring
Auto Scene Match (ASM)（Only WDR）
130dB true WDR technology enables clear image in strong light scene
Support red & blue warning light
Support 9:16 Corridor Mode
Alarm:1 in/1 out, Audio: 1 in/1 out, Built-in Mic and Speaker
Smart IR, up to 40m (131 ft) IR distance
Supports 256 G Micro SD card
IP67 protection
Specification:
| Camera | |||||||||
| Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS | ||||||||
| Minimum Illumination | Colour: 0.001 Lux (F1.0, AGC ON) 0 lux with IR on |
||||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | ||||||
| WDR | 130dB | ||||||||
| S/N | >56dB | ||||||||
| Lens | |||||||||
| Lens | 2.8mm@F1.0 | ||||||||
| Iris | Fixed | ||||||||
| Field of View (H) | 109° | ||||||||
| Field of View (V) | 57° | ||||||||
| Field of View (D) | 132.5° | ||||||||
| Illuminator | |||||||||
| IR Range | Up to 40m (131 ft) | ||||||||
| Warm Light Range | Up to 40m (131 ft) | ||||||||
| Wavelength | 850nm | ||||||||
| Light On/Off Control | Auto/Manual | ||||||||
| Image | |||||||||
| Auto Scene Match (ASM) | Support（Only WDR） | ||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||||
| Digital Noise Reduction | 2D/3D DNR | ||||||||
| Smart IR | Support | ||||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||||
| Dewarping | N/A | ||||||||
| HLC | Support | ||||||||
| BLC | Support | ||||||||
| Defog | Digital Defog | ||||||||
| Audio | |||||||||
| Audio Compression | G.711U, G.711A | ||||||||
| Audio Bitrate | 64 Kbps | ||||||||
| Two-way Audio | Support | ||||||||
| Suppression | Support | ||||||||
| Sampling Rate | 8KHZ | ||||||||
| Storage | |||||||||
| Edge Storage | Micro SD, up to 256GB | ||||||||
| Network Storage | ANR, NAS(NFS) | ||||||||
| Interface | |||||||||
| Audio I/O | Input: impedance 35kΩ; amplitude 2V [p-p] | ||||||||
| Output: impedance 600Ω; amplitude 2V [p-p] | |||||||||
| Alarm I/O | 1/1 | ||||||||
| RS485 | N/A | ||||||||
| Built-in Mic | Support | ||||||||
| Built-in Speaker | Support | ||||||||
| General | |||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||||
| Power consumption: Max 10.0W | |||||||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||||||
| Dimensions (L × W × H) | 269 × 96 × 82mm (10.6” × 3.8” × 3.2”) | ||||||||
| Weight | 0.97kg (2.14lb) | ||||||||
| Material | Metal+Plastic | ||||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
| Surge Protection | 4KV | ||||||||
| Reset Button | Support | ||||||||
