UNV UTP Cat6 IP Network Cable Uniview Surveillance Security Accessory

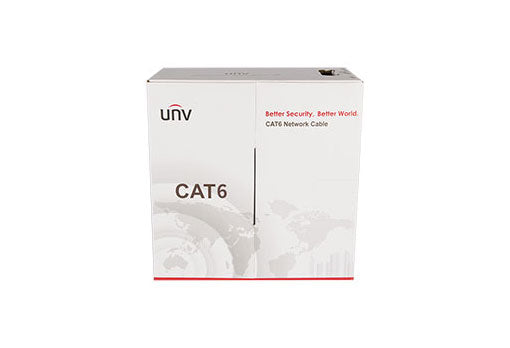

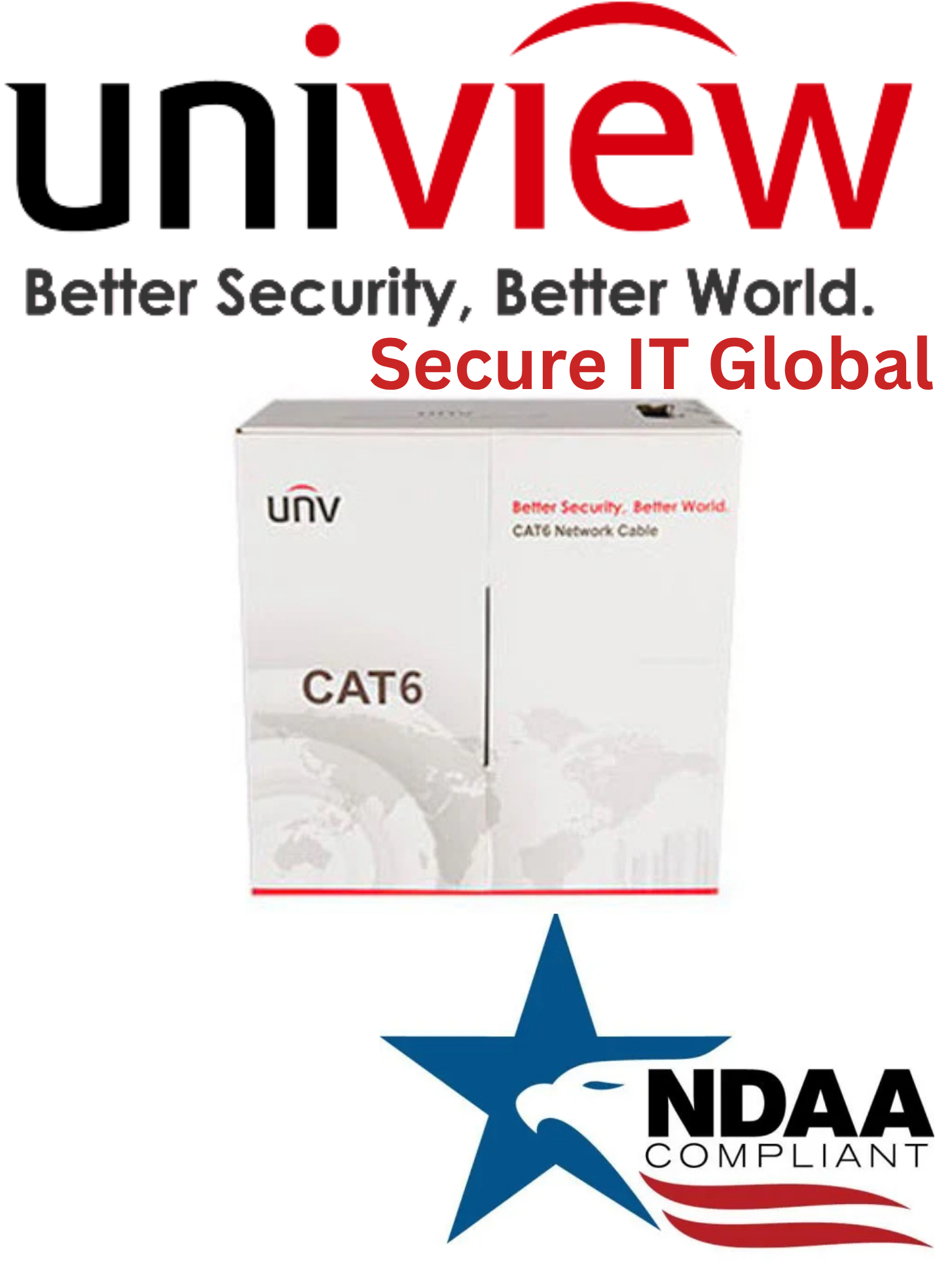

UNV  UTP Cat6 Ethernet 1000' Pull Box IP Network Cable Uniview Security Accessory

The Uniview is the right cables for our electronic devices.

Features:

High-Quality Copper Conductors: Features 23 AWG oxygen-free copper for minimal signal loss and enhanced conductivity.

Advanced Insulation: High-density polyethylene insulation shields against interference, ensuring signal integrity.

Optimized Electrical Characteristics: Stable characteristic impedance across frequencies for reliable performance.

Durable Construction: Encased in a PVC sheath for added durability.

Installation Efficiency: Comes with a rip-cord and crossing backbone for streamlined installation.

Wide Temperature Range: Suitable for environments from -4°F to 140°C, accommodating various operational conditions.

Product specification	HSYV-6 4×2×0.57
Test Standard	YD/T1019-2013
Conductor	Material			OFC(Oxygen free copper)
	AWG			23
	Nom.O.D.(mm)			0.57±0.005 mm
	DC resistance			≤95 Ω/km
Insulation	Material			HDPE
	Thickness			0.2±0.02 mm
	Diameter			1.02±0.05 mm
	Color	Blue/White- Blue			Green/White-Green		Electrical Characteristics: Frequency Characteristic impedance RL ATT NEXT MHz ohm ≥dB/100m ≤dB/100m ≥dB/100m 1 100±15 20.0 2.0 74.3 4 100±15 23.0 3.8 65.3 10 100±15 25.0 6.0 59.3 16 100±15 25.0 7.6 56.2 20 100±15 25.0 8.5 54.8 31.25 100±15 23.6 10.7 51.9 62.5 100±15 21.5 15.4 47.4 100 100±15 20.1 19.8 44.3 155 100±15 18.9 24.7 41.7 200 100±15 18.0 29.0 39.8 250 100±15 17.3 32.8 38.3 Frequency FEXT PS NEXT PS FEXT Phase delay MHz ≥dB/100m ≥dB/100m ≥dB/100m ≤ns/100m 1 63.8 72.3 64.8 570.0 4 51.7 63.3 57.7 552.0 10 43.8 57.3 44.8 545.4 16 39.7 54.3 40.7 543.0 20 37.7 52.8 38.7 542.0 31.25 33.9 49.9 34.9 540.4 62.5 27.8 45.4 28.8 538.6 100 23.8 42.3 24.8 537.4 150 20.2 39.4 20.9 536.0 200 17.7 37.8 18.7 536.0 250 15.8 36.3 16.8 536.0
		Orange /White-Orange			Brown/White-Brown
Pitch	Offset pitch				≤20 mm
	Cable pitch				≤120 mm
Sheath	Material			PVC(complies RoHS/REAC)
	External O.D.				6.2±0.3 mm
	Color			Blue(RAL5015)
	Tensile strength				>13.5 Mpa
	Thickness			0.6±0.05 mm
Surface Printing	Letter height			3.0±0.3 mm
	Color			Black
	Print error & Space			1±0.005 m
	Case number			Yes
Packing	Packing			Carton
	Once packing dimension				420mm*205mm*420mm
	Twice packing dimension				450mm*440mm*445mm
	Twice packing quantity				2 cases
Packing length	305±1m
Rip-cord	Yes		Crossing backbone			Yes
Ambient temperature	-20℃～60℃
