UNV UTP Category 5e IP Cable Uniview Surveillance Security Accessory

UNV  UTP Category 5e UL-Listed IP Cable, 1000' Pull Box Uniview Security Accessory

The Uniview is the right cables for our electronic devices.

Elevate your network's performance with Uniview's advanced 5e Network Cables, the backbone of seamless data transmission. Engineered with high-purity Oxygen-Free Copper, these cables promise minimal resistance and superior signal fidelity. The robust HDPE insulation and distinctive color-coded wiring simplify installation while ensuring lasting durability.

Harness the power of high-speed data flow with exceptional electrical characteristics, maintaining integrity even at 100 MHz. Encased in a RoHS/REACH compliant PVC sheath, these cables withstand diverse environmental conditions, ensuring your network remains uninterrupted.

Each spool is precision-packed, featuring an easy-tear rip-cord. Opt for Uniview 5E Cables—where cutting-edge technology meets peak performance.

High-Quality Material: Oxygen-Free Copper for reduced resistance and enhanced signal clarity

Gauge: 24 AWG, Nominal O.D. of 0.5±0.005 mm

Insulation Excellence: HDPE with a thickness of 0.2±0.02 mm for robust protection

Color-Coded: Simplified network installation with clearly marked wire pairs

Advanced Electrical Specs: Maintains low attenuation and high impedance stability up to 100 MHz

Protective Sheath: PVC jacketing adheres to RoHS/REACH standards, with a tensile strength of >13.5 Mpa

Packaging: 1,000ft length per box, including rip-cord for easy access

Durability: Rated for use in temperatures ranging from -20℃ to 60℃

Product specification	HSYV-5e 4×2×0.50
Test Standard	YD/T1019-2013

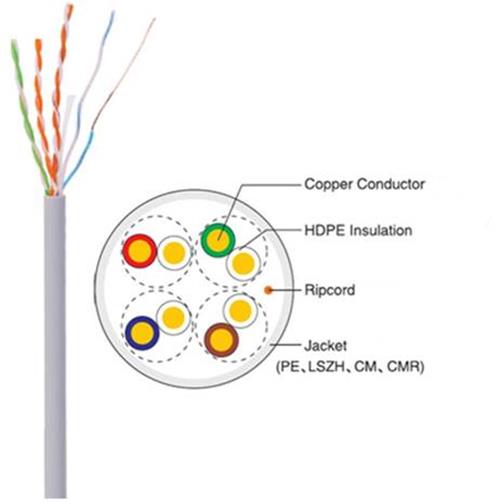

Conductor	Material			OFC(Oxygen free copper)
	AWG			24
	Nom.O.D.(mm)			0.5±0.005 mm
	DC resistance			≤95 Ω/km
Insulation	Material			HDPE
	Thickness			0.2±0.02 mm
	Diameter			0.9±0.05 mm
	Color	Blue/White- Blue			Green/White-Green
		Orange /White-Orange			Brown/White-Brown
Pitch	Offset pitch		≤25 mm			Electrical Characteristics: Frequency Characteristic impedance RL ATT NEXT MHz ohm ≥dB/100m ≤dB/100m ≥dB/100m 1 100±15 20.0 2.0 65.3 4 100±15 23.0 4.1 56.3 10 100±15 25.0 6.5 50.3 16 100±15 25.0 8.2 47.3 20 100±15 25.0 9.3 45.8 31.25 100±15 23.6 11.6 42.9 62.5 100±15 21.5 17.0 38.4 100 100±15 20.1 22.0 35.3 Frequency FEXT PS NEXT PS FEXT Phase delay MHz ≥dB/100m ≥dB/100m ≥dB/100m ≤ns/100m 1 63.8 62.3 60.8 570.0 4 51.7 53.3 48.7 552.0 10 43.8 47.3 40.8 545.4 16 39.7 44.2 36.7 543.0 20 37.7 42.8 34.7 542.0 31.25 33.9 39.9 30.9 540.4 62.5 27.8 35.4 24.8 538.6 100 23.8 32.3 20.8 537.4
	Cable pitch		≤140 mm
Sheath	Material		PVC(complies RoHS/REACH)
	External O.D.		5.1±0.3 mm
	Color		Gray(RAL7046)
	Tensile strength		>13.5 Mpa
	Thickness		0.55±0.05 mm
Surface Printing	Letter height		3.0±0.3 mm
	Color		Black
	Print error & Space		1±0.005 m
	Case number		Yes
Packing	Packing		Carton
	Once packing dimension		350mm*216mm*350mm
	Twice packing dimension		370mm*460mm*370mm
	Twice packing quantity		2 cases
Packing length	305±1 m
Rip-cord	Yes
Ambient temperature	-20℃～60℃
