UNV 2MP 4-Ch IP67 NDAA including WiFi Kit Audio IP Uniview Security Cameras

UNV 4-Ch IP67 IK10 IR NDAA Audio WiFi Kit including 2MP Uniview IP Network Vandal Domes Security Cameras

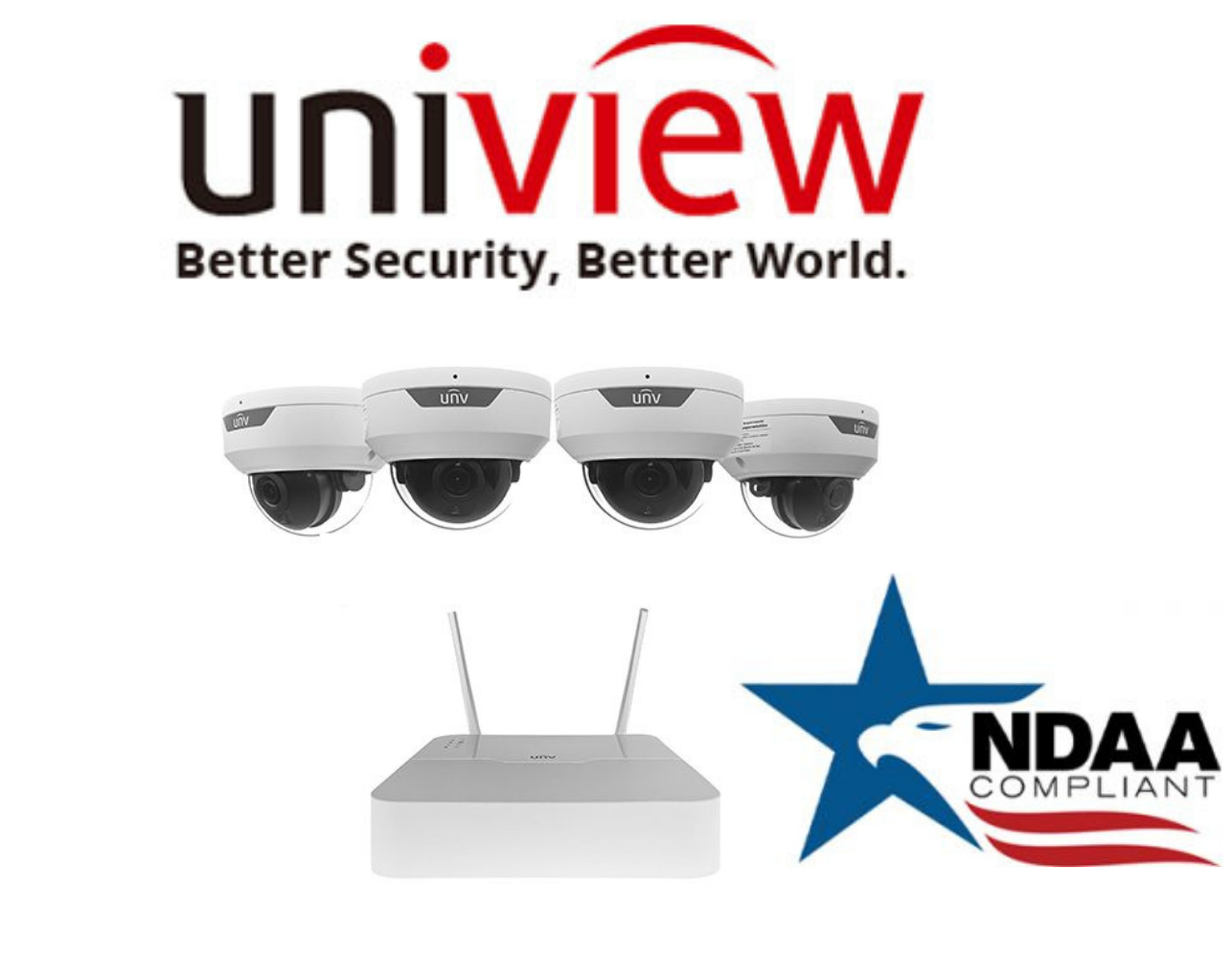

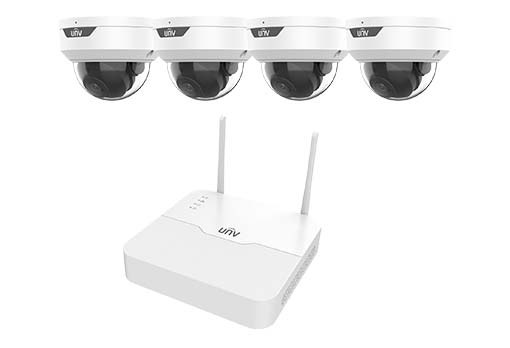

The Uniview KITNVR301-04LS3-W4x322LB-ABF28WK-G is a complete kit for better use.

Description:

This comprehensive kit includes 2MP IP Vandal Domes, offering cutting-edge security features to ensure peace of mind. The Uniview  WiFi Kit is a comprehensive security solution design to meet the demands of modern security challenges. They feature advance night vision technology providing clear footage even in low-light conditions. The Uniview  WiFi Kit, including 2MP IP Vandal Domes, is a top-tier security camera system that ticks all the boxes.

Specification:

Camera

Sensor	1/2.9", progressive scan , 2.0 megapixel, CMOS
Min. Illumination	Colour: 0.01Lux
Day/Night	IR-cut filter with auto switch (ICR)



Lens
Lens Type	2.8mm @2.0, Fixed-focal
Lens Mount	M12
Illuminator
IR Range	Up to 30m (98 ft) IR range
Wavelength	850nm



Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main profile, High profile
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Image Setting	Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
Digital noise reduction	2D/3D DNR

Events

Basic Detection	Human body detection, Motion detection, tampering alarm, audio detection
General Function	Watermark, IP address filtering, access policy, etc.



Audio
Audio Compression	G.711
Suppression	Supported
Sampling Rate	8KHZ



Storage
Edge Storage	Micro SD, up to 128GB
Network Storage	ANR,NAS(NFS)



Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, etc.
Compatible Integration	ONVIF , API , SDK
Security	Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, etc.
Client	EZStation EZView EZLive



General
Power Interface	Ø 5.5mm coaxial power plug
Dimensions (Ø x H)	Φ109 x 83 mm
Weight	0.32 kg (0.71 lb)
Material	Metal + Plastic
Ingress Protection	Ingression protection: IP67 Vandal resistant: IK10

NVR

Video/Audio Input
IP Video Input	4-ch
Network
Incoming Bandwidth	40Mbps
Outgoing Bandwidth	40Mbps
Remote Users	128



Hard Disk
SATA	1 SATA interface
Capacity	Up to 6TB for each HDD
General Alarm
General Alarm	Motion, Tampering, Human Body Detection, Video Loss, Alarm Input
Alert Alarm	IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, etc.



General
Power Supply	12V DC Power Consumption: ≤ 9 W( without HDD )
Working Environment	-10°C ~ + 55°C ( +14°F ~ +131°F )
Dimensions(W×D×H)	205mm × 205mm × 47mm
Weight ( without HDD )	≤0.58Kg(1.28lb)
