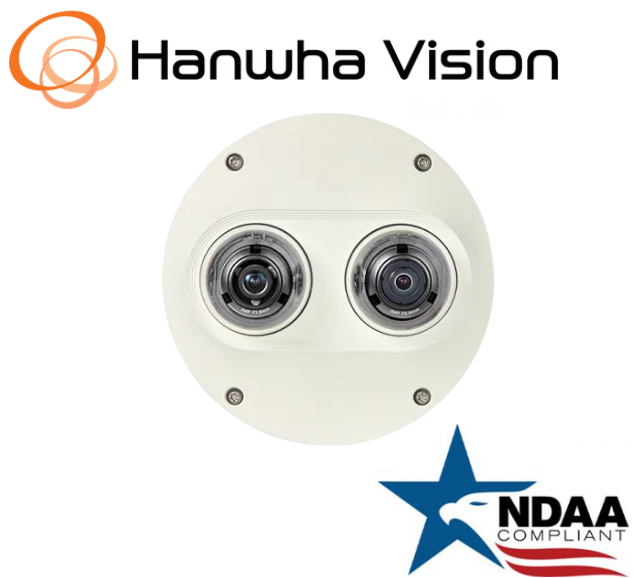

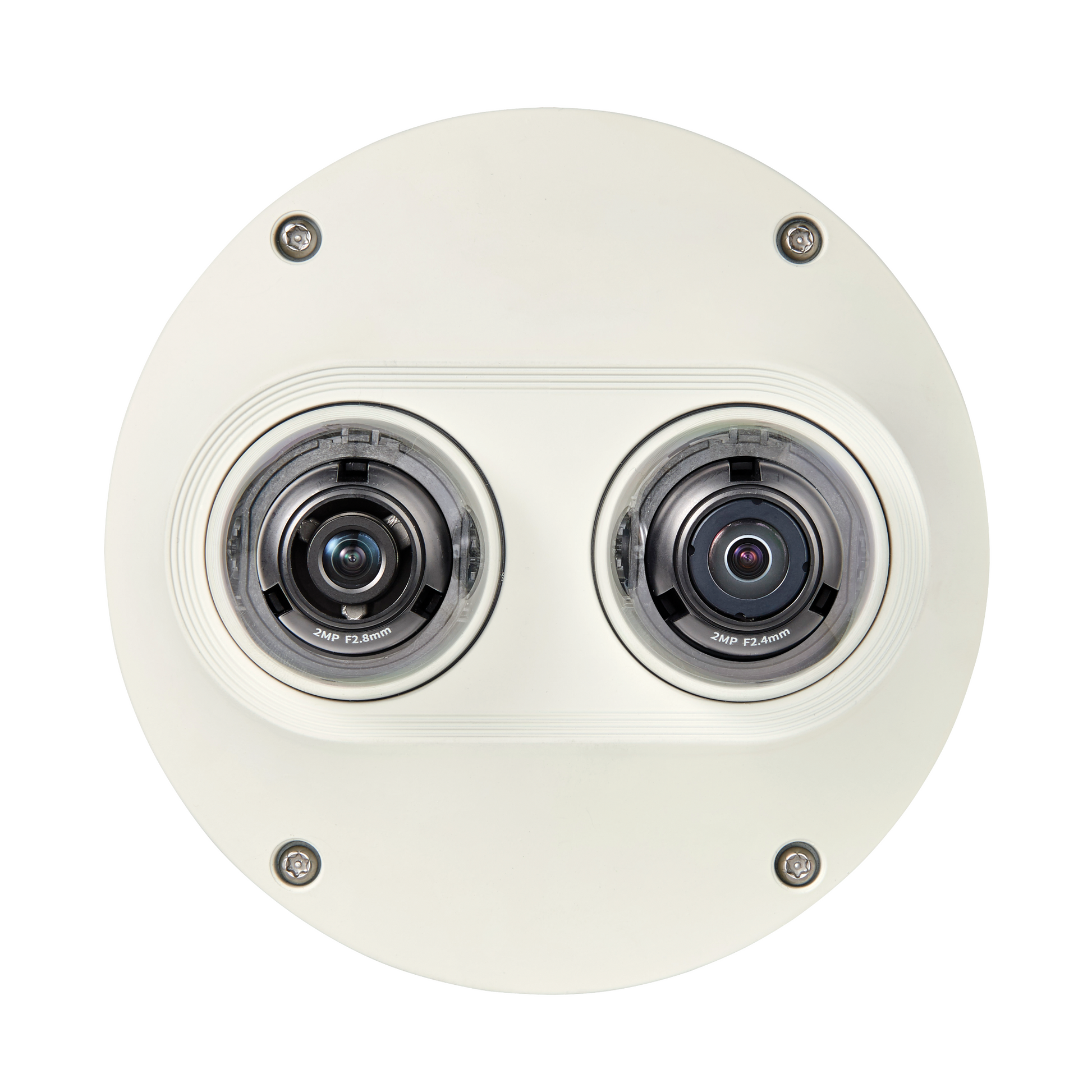

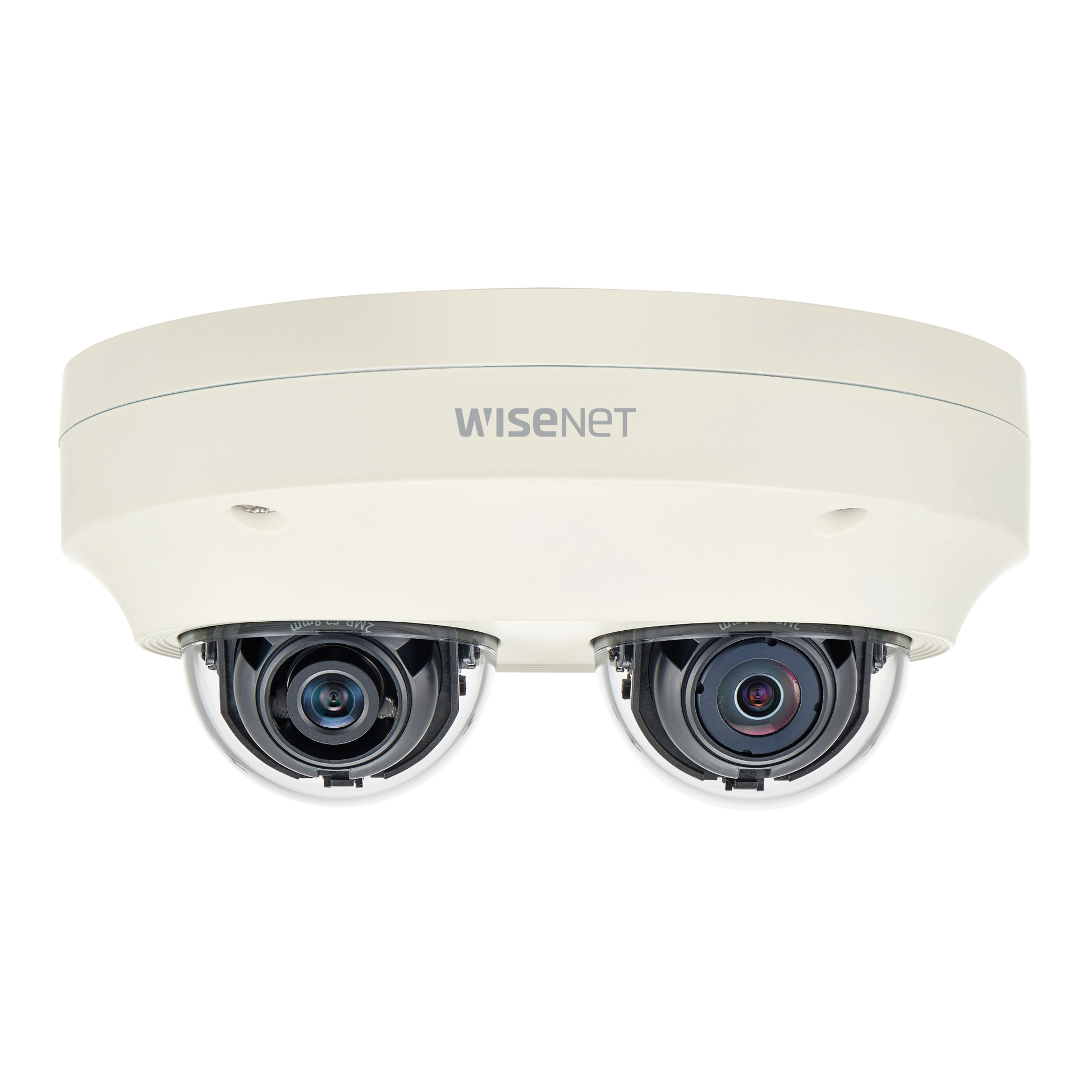

2 x 2MP outdoor dome
Network vandal outdoor Multi-sensor Multi-Directional dome camera, (2MP X 2 sensors) 4MP @ 60fps, modular lenses from 2.4, 2.8, 3.6 and 6mm lenses, triple codec H.265/H.264/MJPEG with WiseStream II technology, 150dB WDR, built in analytics, 2x SD card, hallway view, HLC, defog detection, DIS, PoE, IP66/IK10, -40°C ~ +55°C (-40°F ~ +131°F).

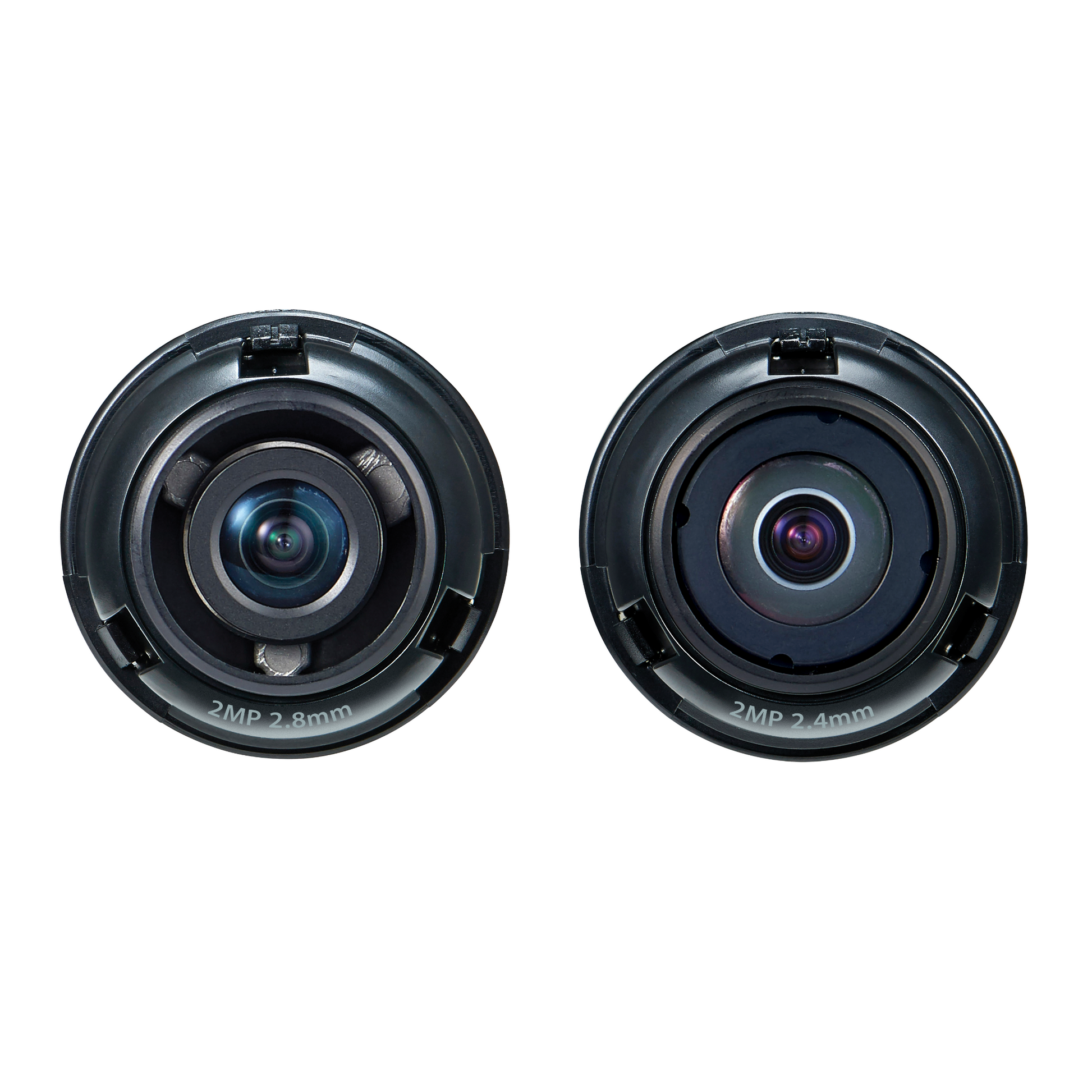

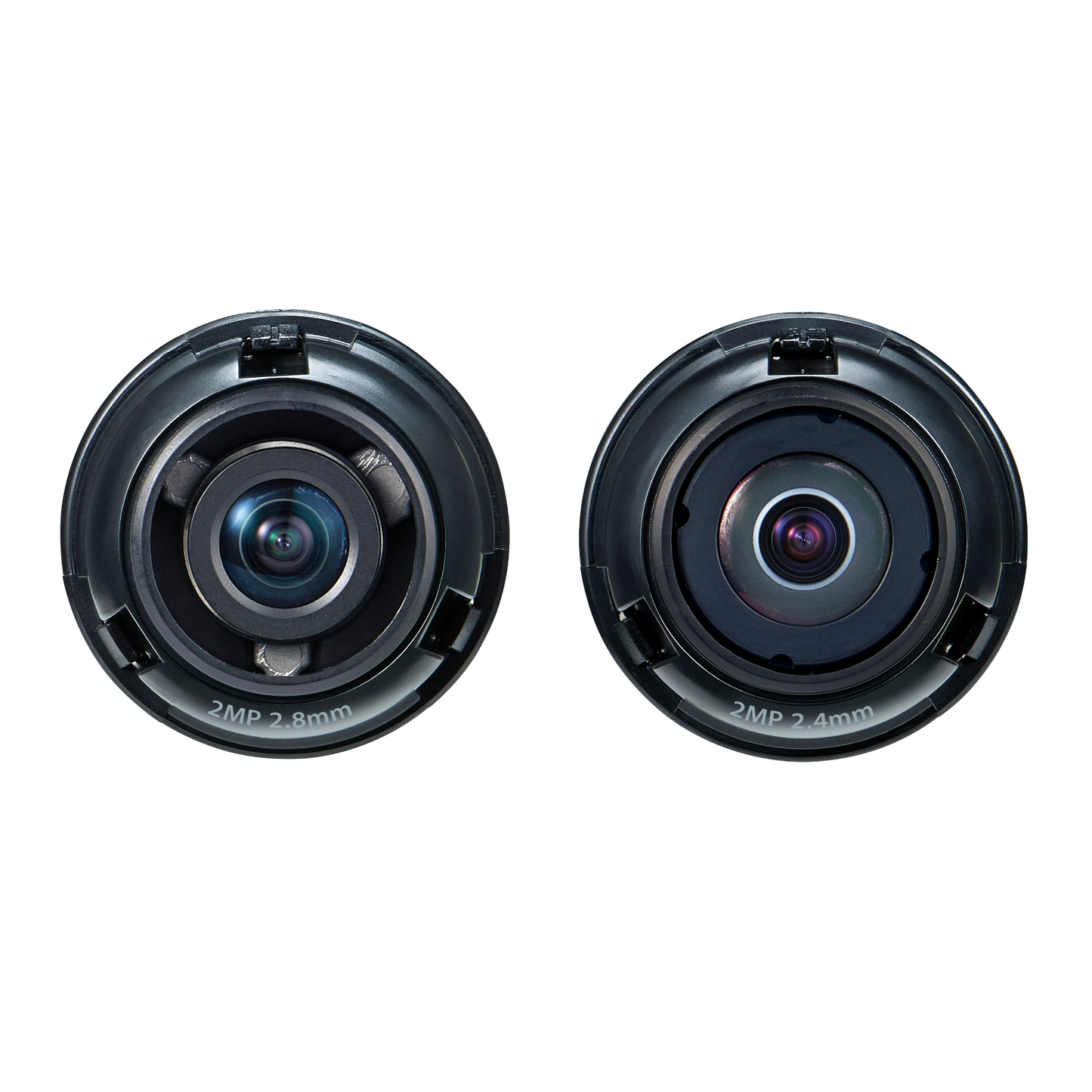

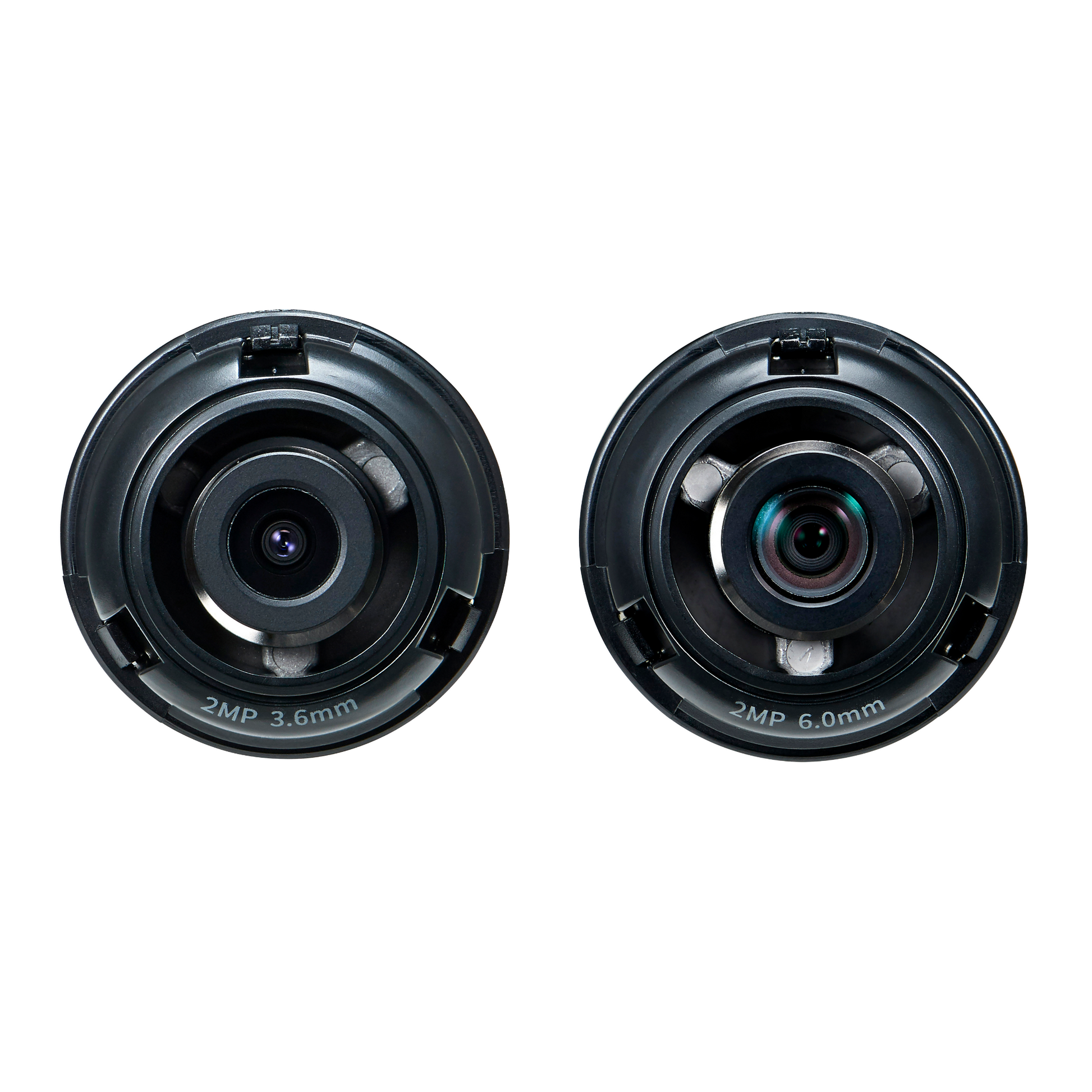

Compatible lens modules: SLA-2M2400D (2.4mm), SLA-2M2800D (2.8mm), SLA-2M3600D (3.6mm), SLA-2M6000D (6mm)
Key Features:
- 2 x 1920 x 1080 resolution
- 60fps@2M (H.265 / H.264)
- H.265, H.264, MJPEG codec supported
- Day & Night, WDR (150dB)
- Loitering, Directional detection, Fog detection, Motion detection, Tampering
- SD/SDHC/SDXC memory 2 slots (each camera), WiseStream II Support
- Lens modules are required, not included with the camera
Samsung Hanwha Techwin PNM-7000VD Specs
Camera
| Zoom |
Digital: 24x |
| IR Cut Filter |
Digital |
| Day/Night |
Yes |
| Shutter Speed |
1/12,000 to 2 Seconds |
Video
| Streaming Resolution |
1920 x 1080 at 60 fps |
| Supported Video Compression |
H.264, H.265, MJPEG |
| Multi-View Streaming |
Yes, 10 Streams |
Networking
| Security |
Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log |
| Supported Protocols |
ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, ONVIF Profile S, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP |
System Integration
| Application Programming Interface (API) |
SUNAPI (HTTP API) |
| Analytics |
Tampering, Loitering, Directional Detection, Fog & Dust Detection, Virtual Line, Enter, Exit, Appear, Disappear, Face Detection, and Motion Detection |
| Event Trigger |
Yes |
| Event Action |
Recording, Notification, Alarm |
System Requirements
| Windows OS Support |
Windows 7, 8.1, 10 |
| Mac OS Support |
macOS 10.12, OS X 10.11, OS X 10.10 |
Environmental
| Operating Temperature |
-40 to 131°F / -40 to 55°C |
| Storage Temperature |
-58 to 140°F / -50 to 60°C |
| Operating Humidity |
0 to 89% |
| IP Rating |
IP66 |
| IK Rating |
IK10 |
General
| Recording Media |
microSD (up to 512 GB) |
| Pan/Tilt |
None |
| I/O Connections |
1 x RJ45 |
| Video Management Software |
SmartViewer, SSM |
| Supported Languages |
Czech
Dutch
English
French
German
Greek
Hungarian
Italian
Japanese
Korean
Polish
Portuguese
Russian
Spanish
Swedish
Traditional Chinese
Turkish |
| Certifications |
UL, as per Manufacturer |
| Internal Storage |
None |
| External Storage Options |
Local PC, NAS |
| Power Source |
PoE 802.3af (15 W) |
| Power Consumption |
12.95 W |
| Material of Construction |
Metal (Unspecified Type) |
| Dimensions |
ø: 6.3 x H: 2.9" / ø: 161.0 x H: 73.0 mm |
| Weight |
1.85 lb / 840 g |
Packaging Info
| Package Weight |
2.46 lb |
| Box Dimensions (LxWxH) |
6.9 x 6.8 x 6.4" |
