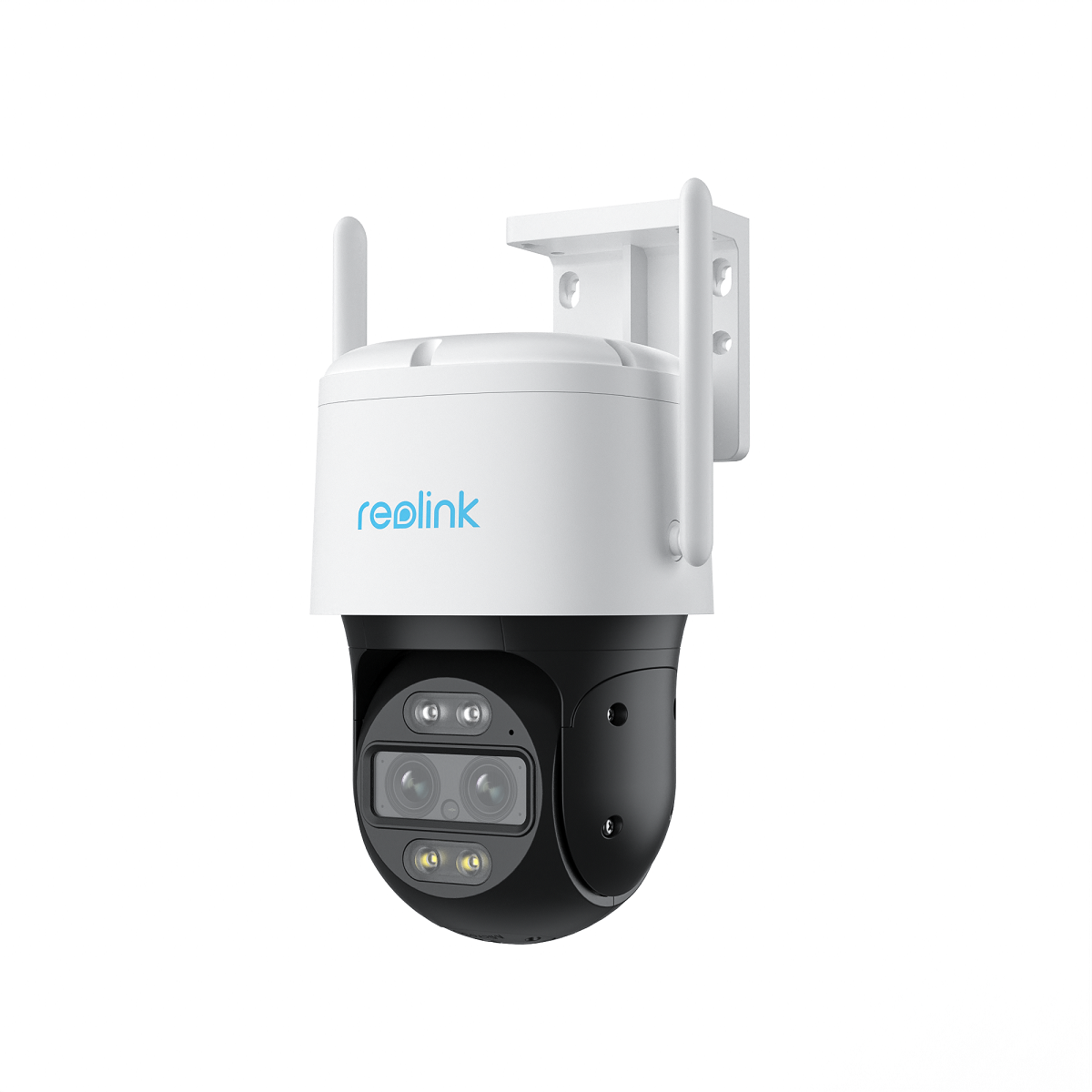

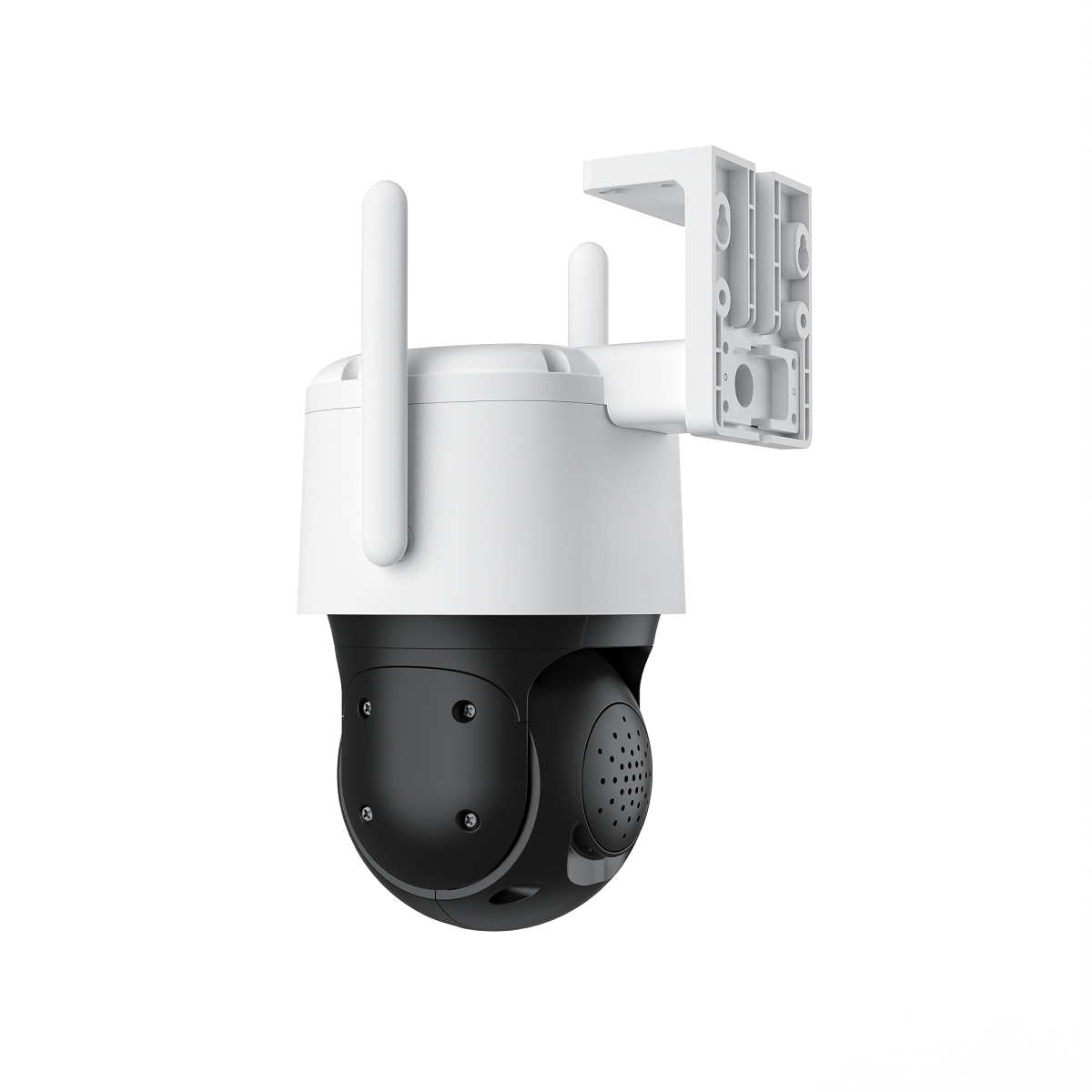

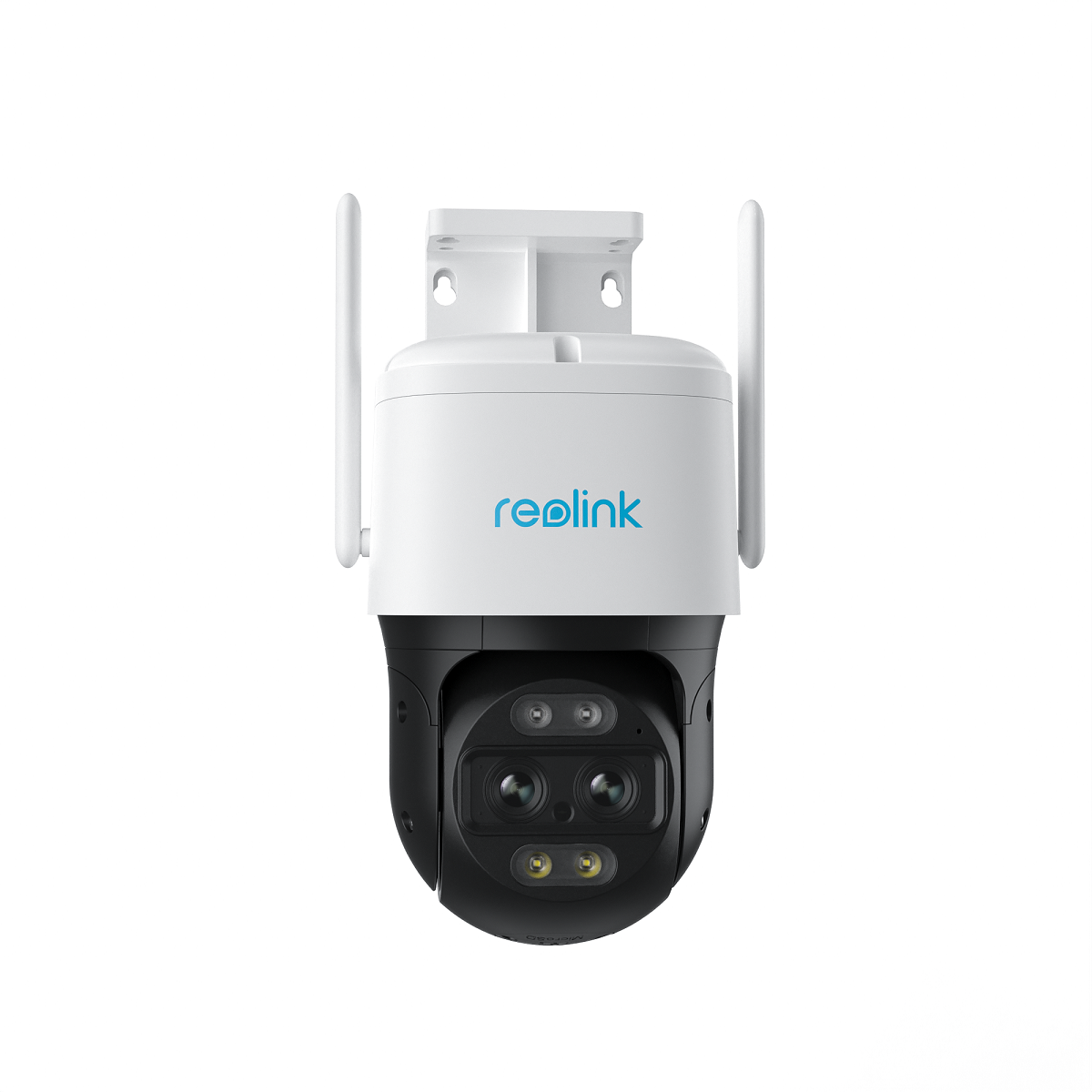

REOLINK TrackMix WiFi 4K 8MP Dual Lens Outdoor Security Camera PTZ Auto Tracking
REOLINK TrackMix WiFi 4K 8MP Dual Lens Outdoor Security Camera PTZ Auto Tracking
SKU:TrackMix Wifi
*2 IR LEDs
*2 Spotlights
*Note: Currently, the pet detection is used to detect dogs and cats and is in beta testing.
Micro SD Card: Supports up to 256GB micro SD card (not included).
Reolink NVR: If you want to save videos for a much longer time or manage multiple cameras, you can simply connect this camera to a compatible Reolink NVR or security camera system.
*Only compatible with Reolink NVRs with smart features and the latest firmware. Also, the NVR fimware must be updated for dual-view displaying.
Note: Only its wide-angle view supports Google Assistant, which is incompatible when camera is connected to NVRs.
Video & Audio
Image Sensor
1/3"+1/2.8"CMOS Sensor
Video Resolution
Up to 3840 x 2160 (8.0 megapixels) at 25 frames/sec
Lens
f=2.8mm@F=1.6,f=8mm@F=1.6
Video Format
H.264,H.265
Field of View
• Horizontal: 104°-38°
• Vertical: 60°-21°
Zoom Mode
6X hybrid zoom
Day & Night
IR-cut filter with auto-switching
Infrared Night Vision
Up to 30 meters (100ft) (LED: 2pcs/850nm)
Color Night Vision
Spotlights: 2pcs/6500K/450 lumens
Audio
Two-way audio
Power
DC Power
DC 12.0V⎓2A, <12W
Interface
Power
DC power port
System
Reset button
Ethernet
One 10M/100Mbps RJ45
Storage
Micro SD card slot (Max. 256GB)
Audio
Built-in microphone and speaker
Pan&Tilt
Pan &Tilt Range
Pan: 355°, Tilt: 0°~90°
Pan Speed
2.5°-90°/s (Speed can be set)
Tilt Speed
1.5°-60°/s (Speed can be set)
Preset
32
Auto Tracking
Support
Wi-Fi
Wireless Standard
IEEE 802.11a/b/g/n
Operating Frequency
2.4GHz/5GHz
Wireless Security
WPA-PSK/WPA2-PSK
Software Features
Frame Rate
• Mainstream: 2fps - 25fps
• Substream: 4fps - 20fps
Code Rate
• Mainstream: 4096Kbps -8192Kbps
• Substream: 128Kbps -1228Kbps
Browsers Supported
Edge, Chrome, Firefox, Safari
OS Supported
PC: Windows, Mac OS; Smartphone: iOS, Android
Smart Alarm
Motion detection; person detection; vehicle detection; pet detection
Record Modes
Motion/scheduled recording (default: motion recording)
Tracking Method
Digital Tracking; Pan/Tilt Tracking First; Digital Tracking First
Protocols & Standards
HTTP, HTTPS, SSL, TCP/IP, UDP, UPNP, RTSP,RTMP, SMTP, NTP, DHCP, DNS, DDNS, P2P
Maximal User Access
Supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams);
20 users (1 admin account & 19 user accounts)
Work with
Google Assistant
Working Environment
Temperature
Operating temperature: -10°C~+55°C (14°F~131°F)
Humidity
Operating humidity: 10% ~ 90%
Waterproof
IP65
Size & Weight
Dimension
228*147*129mm
Weight
1.211kg
