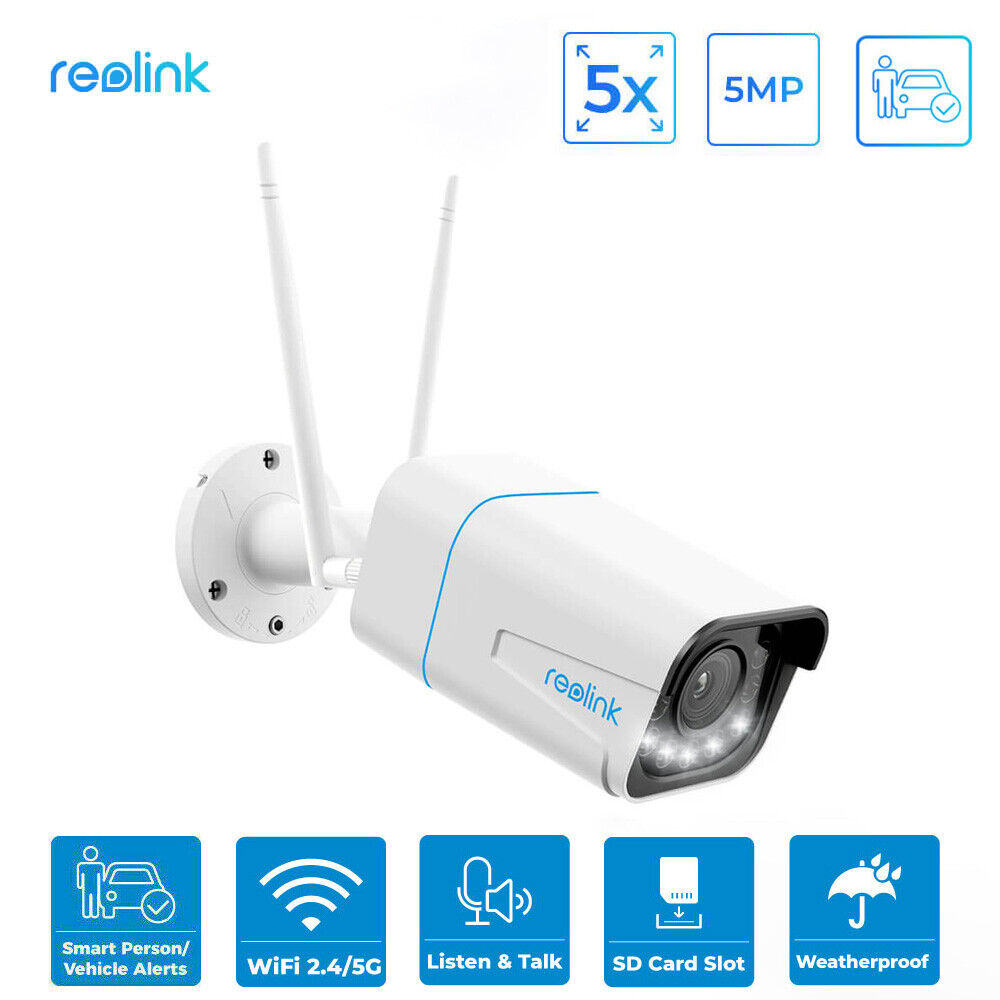

Reolink 5MP IP66 Wifi Two Way Audio 5X Optical Zoom Outdoor Security Camera
Reolink 5MP IP66 Wifi Two Way Audio 5X Optical Zoom Outdoor Security Camera
SKU:RLC-511WA
Specifications:
Video & Audio
Image Sensor
1/2.7" CMOS Sensor
Video Resolution
Default: 2560 x 1920 (5.0 megapixels) at 20 frames/sec
Lens
f=2.7-13.5mm F=1.6-3.3, with IR cut
Video Format
H.264
Field of View
• Horizontal: 27°- 96°
• Vertical: 21°- 69°
Day & Night
IR-Cut filter with auto-switching
Infrared Night Vision
Up to 30 meters (LED: 4pcs/28mil/850nm)
Color Night Vision
Spotlights: 5pcs/4W/6500K/450 lumens)
Audio
Two-way audio
DC Power
DC 12.0V⎓1A, <12W
Interface
Power
DC power port
System
Reset button
Ethernet
One 10M/100Mbps RJ45
Storage
Micro SD card slot (Max. 256GB)
Audio
Built-in microphone and speaker
Software Features
Frame Rate
• Mainstream: 2fps - 30fps (default: 20fps)
• Substream: 4fps - 15fps (default: 10fps)
Code Rate
• Mainstream: 1024Kbps - 8192Kbps (default: 4096Kbps)
• Substream: 64Kbps - 512Kbps (default: 256Kbps)
Browsers Supported
IE, Edge, Chrome, Firefox, Safari
OS Supported
PC: Windows, Mac OS; Smartphone: iOS, Android
Smart Alarm
Motion detection/human detection/vehicle detection
Record Modes
Motion recording (default); scheduled recording; 24/7 recording
Protocols & Standards
HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Maximal User Access
20 Users (1 admin account & 19 user accounts); Support up to 12 simultaneous video streams (10 substreams &
2 mainstreams)
Work with
Google Assistant
WiFi
Wireless Standard
IEEE 802.11a/b/g/n
Operating Frequency
2.4GHz/5GHz
Wireless Security
WPA-PSK/WPA2-PSK
Working Environment
Temperature
Operating temperature: -10°C~+55°C (14°F~131°F)
Humidity
Operating humidity: 10% ~ 90%

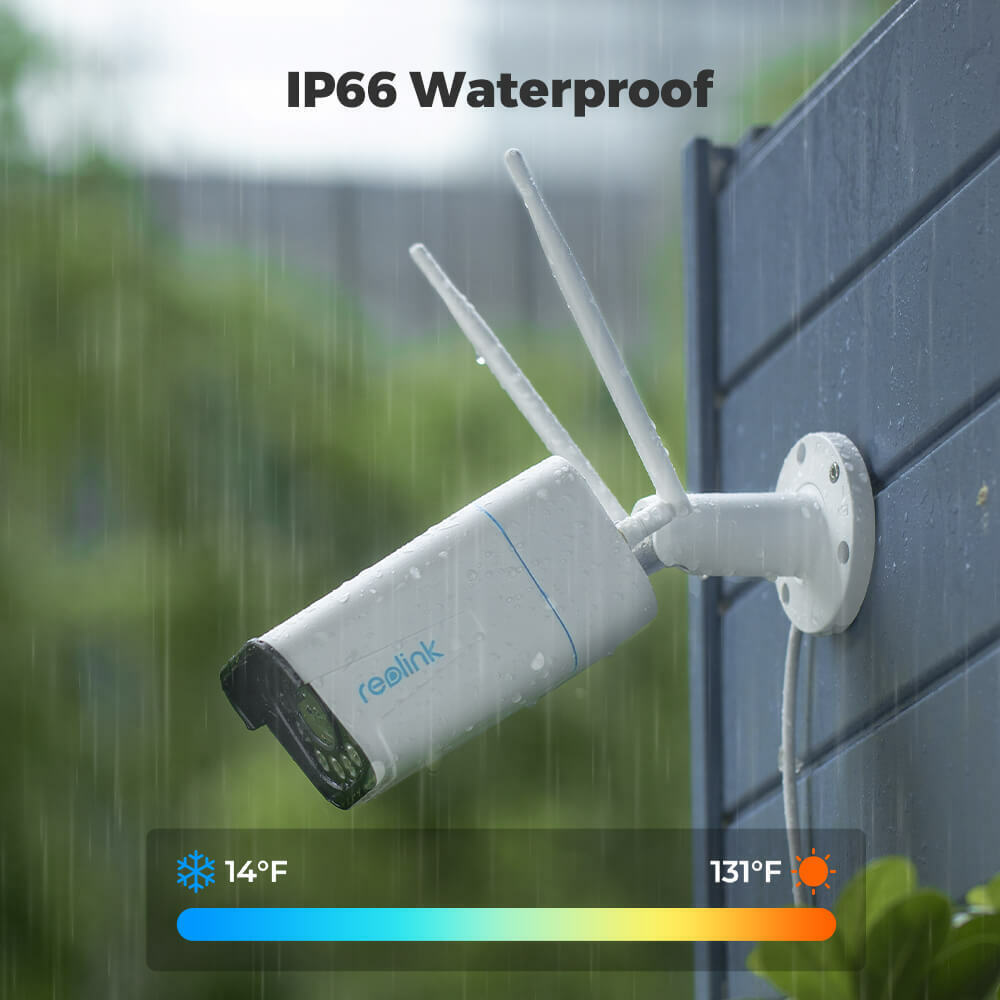

Waterproof
IP67
Size & Weight
Dimension
Φ80 x 72x 238mm
Weight
838g
