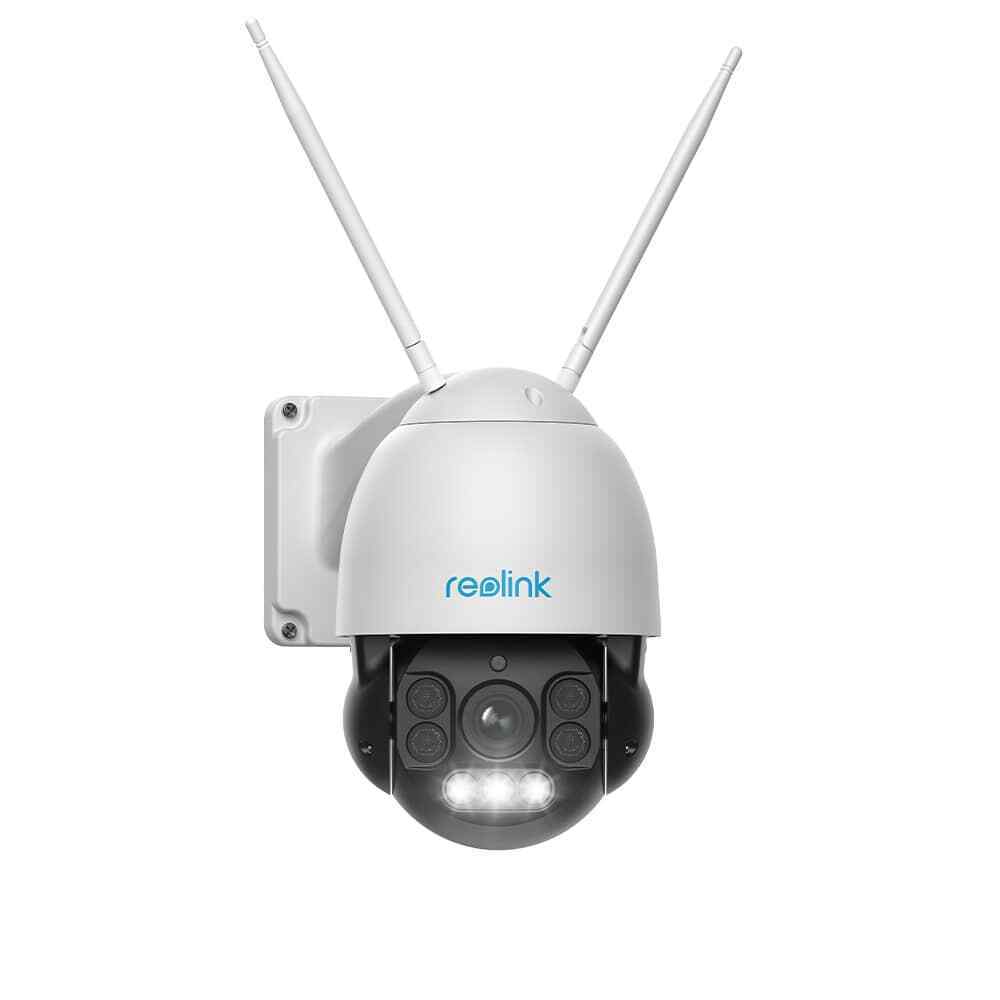

Reolink 5MP PTZ WiFi Security Camera Auto Tracking with Spotlight Night Vision
Reolink 5MP PTZ WiFi Security Camera Auto Tracking with Spotlight Night Vision
SKU:RLC-523WA
- Auto Tracking
- Manual Pan & Tilt
- 27° - 96° Viewing Angle
- 2.74 mm - 13.5 mm Motorized Lens
* This feature is incompatible when camera is connected to NVRs.
Specifications:
Video & Audio
Image Sensor
1/2.7" CMOS Sensor
Video Resolution
Default: 2560 x 1920 (5.0 megapixels) at 20 frames/sec
Lens
f=2.7-13.5mm F=1.6-3.3, zoom module
Video Format
H.264
Field of View
• Horizontal: 27°-96°
• Vertical: 21°-69°
Day & Night
IR-cut filter with auto-switching
Infrared Night Vision
Up to 60 meters (190ft) (LED: 4pcs/28mil/850nm)
Color Night Vision
Spotlights: 3pcs/5700K/945 lumens
Audio
Two-way audio
Power
DC Power
DC 12.0V⎓2A, <24W
Interface
Power
DC power port
System
Reset button
Ethernet
One 10M/100Mbps RJ45
Storage
microSD card slot (Max. 256GB)
Audio
Built-in microphone and speaker
Pan&Tilt
Pan & Tilt Range
Pan: 360°, Tilt: 0°~90°
Pan Speed
2.5°-150°/s (speed can be set)
Tilt Speed
1.5°-60°/s (speed can be set)
Preset
64
Patrol
1 patrol; up to 16 presets per patrol
Auto Tracking
Support
Power-Off Memory Function
Support
Wi-Fi
Wireless Standard
IEEE 802.11a/b/g/n
Operating Frequency
2.4GHz/5GHz
Wireless Security
WPA-PSK/WPA2-PSK
Software Features
Frame Rate
• Mainstream: 2fps - 30fps (default: 20fps)
• Substream: 4fps - 15fps (default: 10fps)
Code Rate
• Mainstream: 1024Kbps - 8192Kbps (default: 4096Kbps)
• Substream: 64Kbps - 512Kbps (default: 256Kbps)
Browsers Supported
Edge, Chrome, Firefox, Safari
OS Supported
PC: Windows, Mac OS; Smartphone: iOS, Android
Smart Alarm
Person detection/vehicle detection/motion detection
Recording Modes
Motion recording (default)/scheduled Recording; 24/7 recording
Protocols & Standards
HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, P2P, IPv4, FTP
Maximal User Access
Supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams);
20 users (1 admin account & 19 user accounts)
Work with
Google Assistant
Working Environment
Temperature
Operating temperature: -10°C~+55°C (14°F~131°F)
Humidity
Operating humidity: 10% ~ 90%

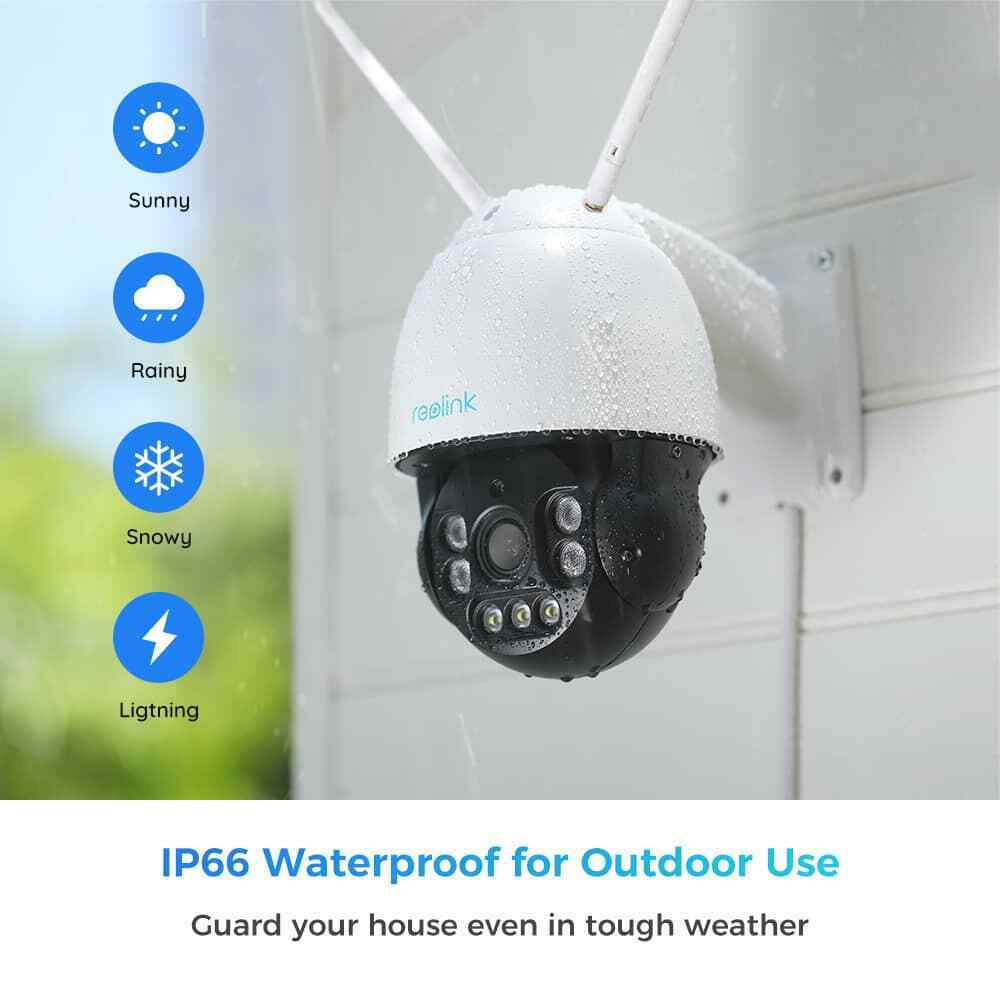

Waterproof
IP66
Size & Weight
Dimension
Φ136 x 201mm
Weight
1.8kg
