Reolink 16CH NVR 4K UHD PoE Audio Recording 4TB HDD Smart Security Camera System

Reolink 16CH NVR 4K UHD PoE Audio Recording 4TB HDD Smart Security Camera System

SKU:RLK16-820D8-A

Regular price $1,200.00 USD
Regular price Sale price $1,200.00 USD
Sale Sold out
Shipping calculated at checkout.
Reolink 4K Security Camera System H.265, 8pcs 8MP Person/Vehicle Detection Smart Wired Turret Outdoor PoE IP Cameras, 8MP 16-Channel NVR with 4TB HDD for 24/7 Recording

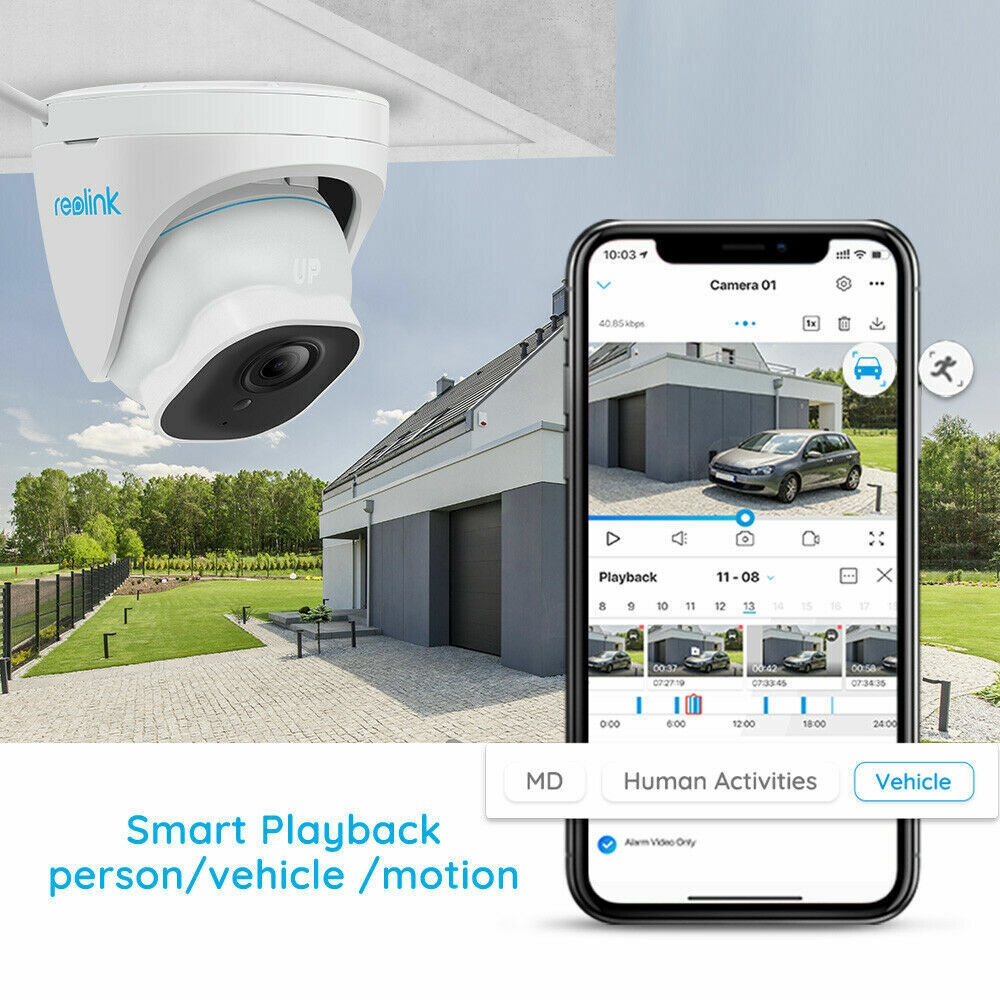

Human/Vehicle Detection & Smart Playback
This IP camera is equipped with on-device detection technology to identify human and vehicles from other objects. With its accurate detection, you can keep a sharper eye on the true threats and release your mind from the unnecessary alerts.
Fliter clips by person, vehicle or motion. Finding important video is much easier.

Flawless Video in 4K Ultra HD
Home security jumps from 1080p to 4K Ultra HD – 1.6X clearer than Super HD and 4X clearer than 1080p HD. Details you see around home or store will be reproduced perfectly in live streaming and playback.


Seamless Surveillance with Night Vision
The cameras’ infrared lights enable excellent nighttime recording. With up to 100ft night vision, this security system continues to keep your family firmly guarded after sundown.


Set schedule and area as you want
Create motion schedule and specific areas that you want to receive motion alerts from. It can save you the trouble of unwanted alarms from out of designated areas.


PoE System - 100% Plug and Play
Power, video, and sound run through a single PoE cable, making the installation simple. Cameras come with 60ft 8Pin network cables so you will find it easy to get everything up and running in no time.

Work with Reolink Wifi Camera
This security camera system also work with all Reolink WIFI cameras except the battery powered cameras.

Customize Your Own Security Camera System
This security system kit RLK16-820D8-A supports all Reolink 4K/5MP/4MP IP cams(except Battery-powered cameras), apart from this NVR, you can choose up to 16 cameras to build your own video surveillance system. (It needs two unoccupied channels of the Reolink NVR to add Duo PoE/WiFi security camera.)
DO IT YOURSELF
B400 D400 410 520 Duo PoE Duo WiFi 510A 510A-B 520A 810A 820A 812A 1212A
Add-on Cameras 5MP PoE Cameras Dual-Lens Cameras PoE Cameras with Person/Vehicle Detection
811A 822A 842A 823A 511WA 542WA 523WA E1 Outdoor 510WA 410W 410W-B Lumus E1 Series
PoE Cameras with Person/Vehicle Detection and Zoom WiFi Cameras with Person/Vehicle Detection and Zoom Indoor/Outdoor WiFi Cameras

Reliable Security Grade HDD
Reolink NVR uses security certified hard drive that has been engineered specifically for the 7x24 high workload demands of security monitoring. RLK16-820D8-A is with a pre-installed 4TB HDD. If you want a more bigger storage, you can change the 4TB HDD to 2 PCS of 6TB HDD, support up to 12TB.
7/24 Non-stop Recording
The 4K security camera system continuously records every single minute of what occurs in your home or business.

Smart Motion Alerts
This 4K 8MP security camera can detect motion and notify you instantly through push notifications, emails alerts or buzzer sounds. You can personalize all kinds of alerts to fit your needs.

Remote Access and Playback
With FREE Reolink software, users can access footage via their smart phone (IOS/Android) or computer (Windows/Mac). When replaying all-day videos, you also can easily find the clip you need by date or type of motion event (Human/Vehicle/Motion Detection).

Data Encryption, Cyber Security
We use AWS server to achieve remote access to your system, meaning your data stays your data as the Reolink servers are not involved at all. All the data is dynamically encrypted and well protected.

Durable IP66 Certified Weatherproof
Your 4K PoE cameras can operate efficiently both indoors and outdoors. With IP66 waterproof rating, these cameras can withstand various conditions, such as freezing rain, heavy snow and extreme heat.

Applied to Multiple Occasions


RLN16-410-4K Specifications
Hardware Hardware V2
Video/Audio Input IP Video Input PoE IP Camera x 16 Audio Input Cameras with Built-in Mic
Video/Audio Output Video Output VGA, HDMI Display Resolution
• HDMI: 3840*2160, 1920*1080, 1280*1024, 1280*720,1024*768
• VGA: 1920*1080, 1280*1024, 1280*720, 1024*768
Audio Output 1-Channel, RCA
Decoding Video Format H.265, H.264 Live View/Playback Resolution 3840*2160, 2560x1920, 2560*1440, 2048*1536, 2304*1296, 1080P, 720P
Synchronous Playback 1-4 Channel(s)
Storage SATA 2 SATA Interfaces for 2HDDs Capacity Up to 6TB Capacity for Each HDD
External HDD NO
External Interface USB Interface 2 x USB 2.0 Network Interface
• 1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface for LAN/WAN
• 16, RJ-45 10/100 Mbps Self-Adaptive PoE Ethernet Interface for IP Cameras
PoE Max. Power Consumption/Port 25w Supported Standard
IEEE 802.3 af/at
Network Network Protocol HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP Browsers Supported
Edage, Firefox, Chrome, Safari
OS Supported PC: Windows, Mac OS; Smart Phone: iOS, Android Max. User Access
20 Users
General Power Supply DC 48V/2.5A Power Consumption
<10W(Without HDD & PoE)
Working Environment Temperature: -10°C ~+55°C (14°F~131°F); Humidity: 10%~90% Dimensions (mm)
330 x 45 x 285
Weight 1.8 kg (Without HDD)




PoE Camera Specifications
Video & Audio Image Sensor 1/2.49" CMOS sensor Video Resolution Default: 3840X2160 (8.0 Megapixels) at 25 frames/sec
Lens f=4.0mm fixed; F=2.0, with IR-cut filter Video Format H.265
Field of View
• Horizontal: 87°
• Vertical: 44°
Day & Night IR-cut filter with auto-switching
Night Vision 30 meters (100 ft) (LED: 18pcs/14mil/850nm) Audio Audio recording
Power PoE IEEE 802.3af, 48V Active DC Power DC 12.0V⎓1A, <12W
Interface Power DC power port System Reset button
Ethernet One 10M/100Mbps; RJ45
Audio Built-in microphone
Software Features Frame Rate
• Mainstream: 2fps - 25fps (default: 25fps)
• Substream: 4fps - 15fps (default: 10fps)
Code Rate
• Mainstream: 1024Kbps - 8192Kbps (default: 6144Kbps)
• Substream: 64Kbps - 512Kbps (default: 256Kbps)
Browser Supported
IE, Edge, Chrome, Firefox, Safari
OS Supported
PC: Windows, Mac OS; Smartphone: iOS, Android
Smart Alarm
Motion detection/Person detection/Vehicle detection
Record Mode
Motion-triggered recording (default); scheduled recording
Maximal User Access 20 users (1 admin account & 19 user accounts); support up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
Working Environment Temperature
Operating temperature: -10°C ~ +55°C (14°F ~ 131°F)
Humidity Operating humidity: 10% ~ 90%
Waterproof
IP66

Size & Weight Dimension
Φ105*93mm
Weight 467.5g
