Reolink 16CH NVR 4K UHD 8MP PoE 4TB HDD Human Car Detect Smart Security System
Reolink 16CH NVR 4K UHD 8MP PoE 4TB HDD Human Car Detect Smart Security System
SKU:RLK16-810B8-A
Regular price
$1,200.00 USD
Regular price
Sale price
$1,200.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

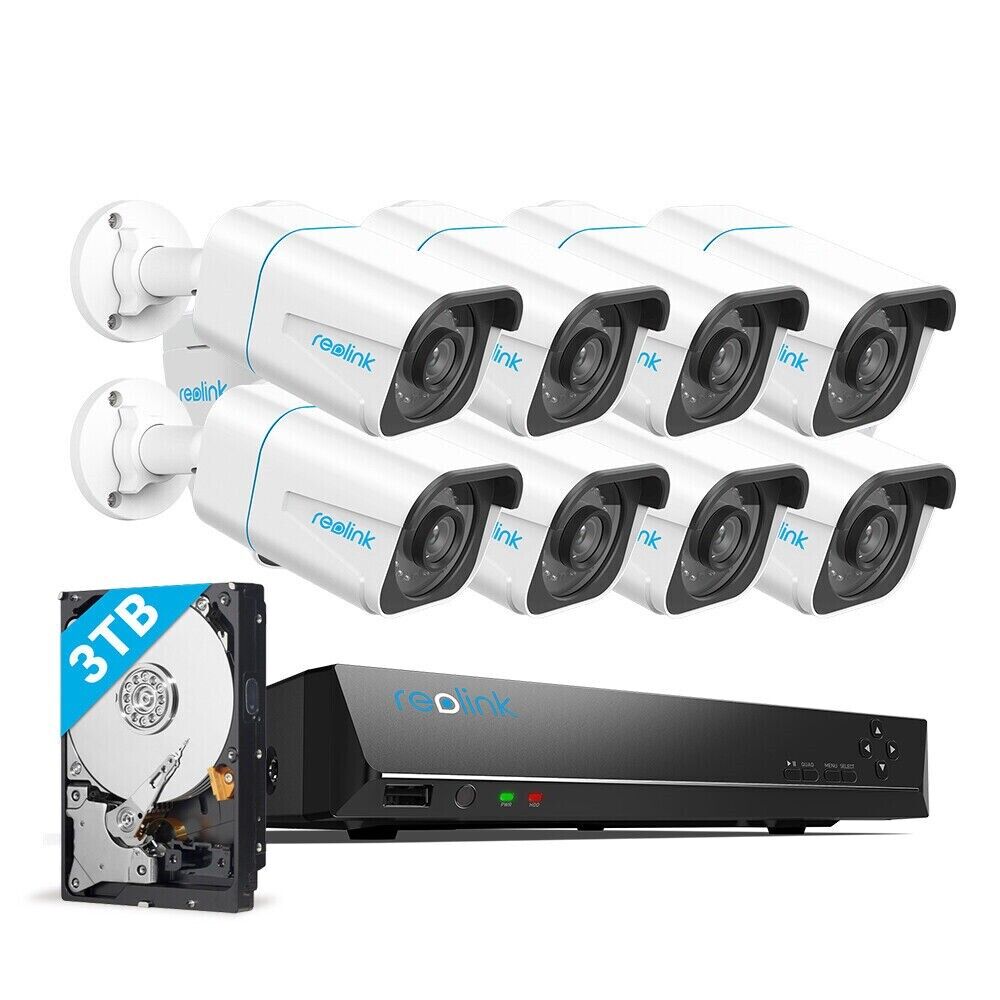

Reolink 4K Security Camera System H.265, 8pcs 8MP Person/Vehicle Detection Smart Wired Outdoor PoE IP Cameras, 8MP 16-Channel NVR with 4TB HDD for 24/7 Recording
Smart Alerts, Less trifle
Powered by smart motion detection technology, this camera can tell people and vehicles from other objects. Get alerts when suspicious person or car is loitering around your house or store. Protect your property from potential threat.
4K Ultra HD, Better in Details!
Futuristic 4K Ultra HD Has Arrived. This 4K 8MP IP camera boasts the pixel resolution of 3840x2160, delivering the highest level of imagery like never before.
See Through the Darkness
Thanks to 18pcs powerful infrared LEDs and enhanced 3D-DNR technology, the 4K ip camera can capture every move of would-be burglars or naughty fence-jumping animals at night with vivid and noise-free details.
Smart Playback, Easy locate key moment
Fliter clips by person, vehicle or motion. Finding important video is much easier.
Set schedule and area as you want
Create motion schedule and specific areas that you want to receive motion alerts from. It can save you the trouble of unwanted alarms from out of designated areas.
Easy PoE Setup
No power cable or adapter is needed. RLK16-810B8-A with Power over Ethernet (PoE) technology needs only a network cable for each camera. Less wiring, less cost, more convenience.
Work with Reolink Wifi Camera
This security camera system also work with all Reolink WiFi cameras except the battery powered cameras.
Remote Access and Playback
With FREE Reolink software, users can access footage via their smart phone (IOS/Android) or computer (Windows/Mac). When replaying all-day videos, you also can easily find the clip you need by date or type of motion event (Human/Vehicle/Motion Detection).
Data Encryption, Cyber Security
We use AWS server to achieve remote access to your system, meaning your data stays your data as the Reolink servers are not involved at all. All the data is dynamically encrypted and well protected.

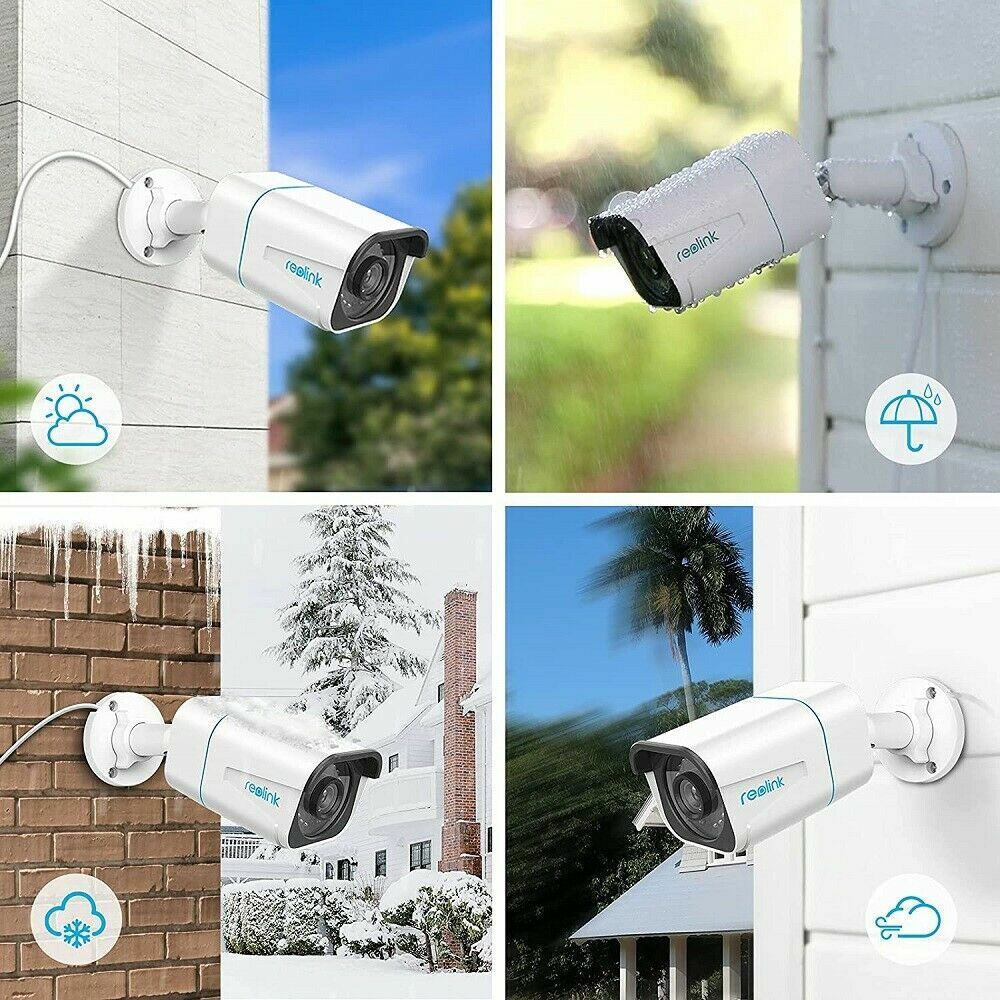

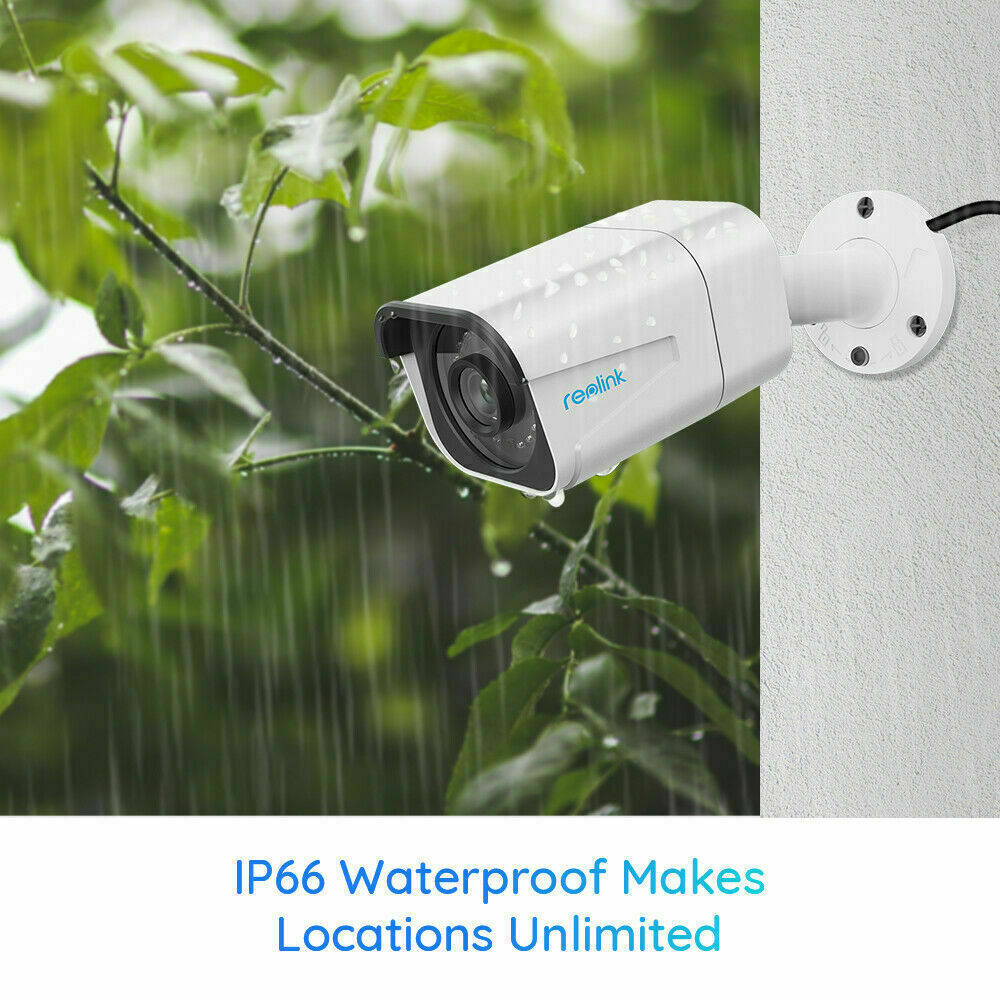

Durable IP66 Certified Weatherproof
Your 4K PoE cameras can operate efficiently both indoors and outdoors. With IP66 waterproof rating, these cameras can withstand various conditions, such as freezing rain, heavy snow and extreme heat.
Applied to Multiple Occasions
| RLN16-410-4K Specifications | ||||
| Hardware | Hardware | V2 | ||
| Video/Audio Input | IP Video Input | PoE IP Camera x 16 | Audio Input | Cameras with Built-in Mic |
| Video/Audio Output | Video Output | VGA, HDMI | Display Resolution |
• HDMI: 3840*2160, 1920*1080, 1280*1024, 1280*720,1024*768
• VGA: 1920*1080, 1280*1024, 1280*720, 1024*768
|
| Audio Output | 1-Channel, RCA | |||
| Decoding | Video Format | H.265, H.264 | Live View/Playback Resolution | 3840*2160, 2560x1920, 2560*1440, 2048*1536, 2304*1296, 1080P, 720P |
| Synchronous Playback | 1-4 Channel(s) | |||
| Storage | SATA | 2 SATA Interfaces for 2HDDs | Capacity | Up to 6TB Capacity for Each HDD |
| External HDD | NO | |||
| External Interface | USB Interface | 2 x USB 2.0 | Network Interface |
• 1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface for LAN/WAN
• 16, RJ-45 10/100 Mbps Self-Adaptive PoE Ethernet Interface for IP Cameras
|
| PoE | Max. Power Consumption/Port | 25w | Supported Standard | IEEE 802.3 af/at |
| Network | Network Protocol | HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP | Browsers Supported | Edge, Firefox, Chrome, Safari |
| OS Supported | PC: Windows, Mac OS; Smart Phone: iOS, Android | Max. User Access | 20 Users |
|
| General | Power Supply | DC 48V/2.5A | Power Consumption | <10W（Without HDD & PoE） |
| Working Environment | Temperature: -10°C ~+55°C (14°F~131°F); Humidity: 10%~90% | Dimensions (mm) | 330 x 45 x 285 |
|
| Weight | 1.8 kg (Without HDD) | |||
| PoE Camera Specifications | ||||
| Video & Audio | Image Sensor | 1/2.49" CMOS Sensor | Video Resolution | 3840x2160 (8.0 Megapixels) at 25 frames/sec |
| Lens | f=4.0mm fixed; F=2.0, with IR-cut filter | Video Format | H.265 | |
| Field of View |
• Horizontal: 87°
• Vertical: 44°
|
Day & Night | Auto-switching IR-cut filter | |
| Night Vision | 30 meters (100ft) (LED: 18pcs/14mil/850nm) | Audio | Audio recording | |
| Power | PoE | IEEE 802.3af, 48V Active | DC Power | DC 12.0V⎓1A, <12W |
| Interface | Power | DC power port | System | Reset button |
| Ethernet | One 10M/100Mbps; RJ45 | |||
| Audio | Built-in microphone | |||
| Software Features | Frame Rate |
• Mainstream: 2fps - 25fps (default: 25fps)
• Substream: 4fps - 15fps (default: 10fps)
|
Code Rate |
• Mainstream: 1024Kbps - 8192Kbps (default: 6144Kbps)
• Substream: 64Kbps - 512Kbps (default: 160Kbps)
|
| Browser Supported | IE, Edge, Chrome, Firefox, Safari |
OS Supported | PC: Windows, Mac OS; Smartphone: iOS, Android |
|
| Smart Alarm | Person detection; vehicle detection; motion detection |
Record Mode | Motion-triggered recording (default); scheduled recording |
|
| Maximal User Access | 20 users (1 admin account & 19 user accounts); support up to 12 simultaneous video streams (10 substreams & 2 mainstreams) | |||
| Working Environment | Temperature | Operating temperature: -10°C - +55°C (14°F - 131°F) |
Humidity | Operating humidity: 10% - 90% |
| Waterproof | IP66 |
|||
| Size & Weight | Dimension | Φ192*66mm |
Weight | 485g |
