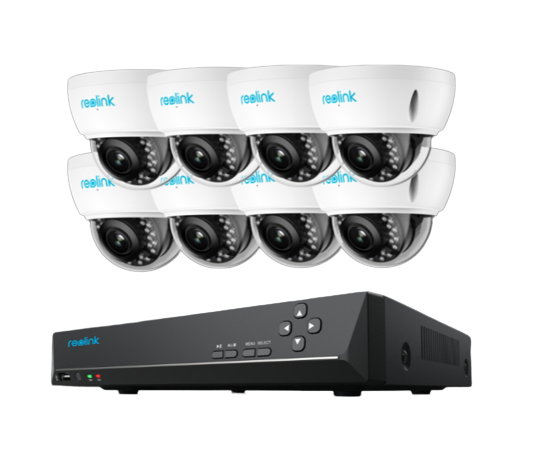

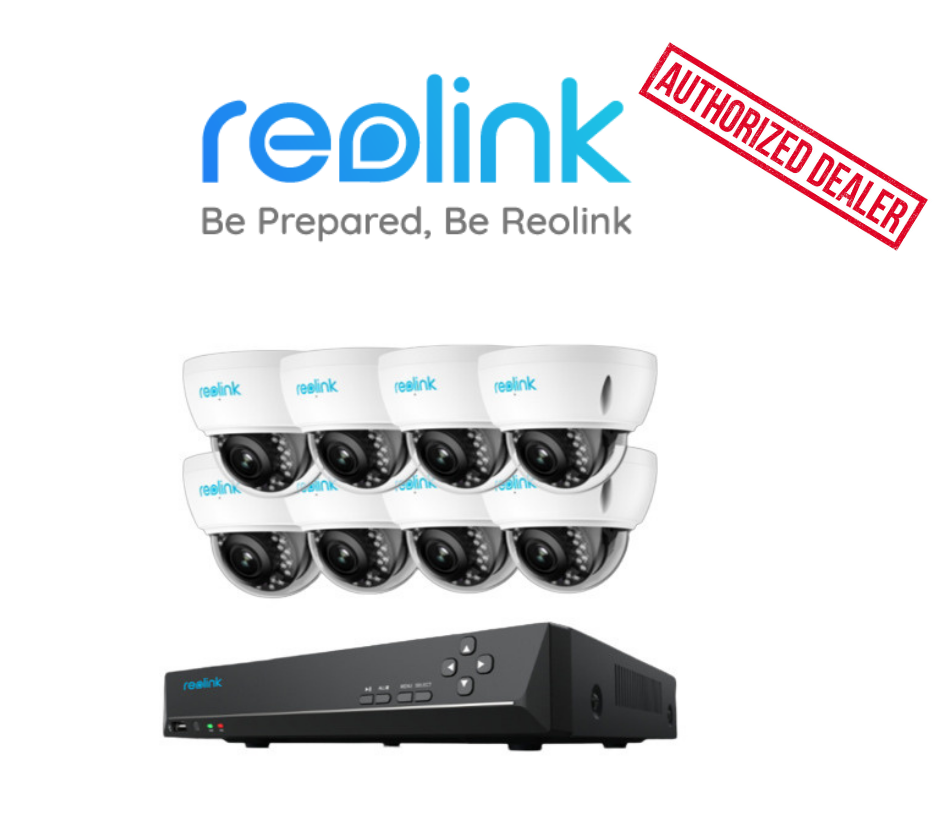

Reolink 16CH NVR 4K 8MP Ultra HD PoE 4TB HDD Human/Car Detect Security System
Reolink 16CH NVR 4K 8MP Ultra HD PoE 4TB HDD Human/Car Detect Security System
SKU:RLK16-842D8-A
4K IK10 PoE
Security System with 24/7 Recording & Smart Detection
4K 8MP Ultra HD
5X Optical Zoom
IK10 Vandal Proof
16-Channel 4TB NVR
Accurate Detection, Premium
Protection
Thanks to advanced detection technology, this security system can better keep an eye on your home and business. You can receive alarms only when the cameras detect a person, vehicle, or pet within their monitoring area. No subscription fees are required.
Marvelous 4K Day & Night
Blurry images are already a thing of the past. Now enjoy a 4K visual experience with this system! Whatever you see around your home or store, you'll get a sharp and clear live feed and playback of it, day or night.
Make Distant Details Closer with 5X
Optical Zoom
Cameras in this security system feature a motorized varifocal lens, offering a wide angle of 27° to 96° and 5X optical zoom. Feel free to zoom out for a large field of view or zoom in on faraway objects for more details without sacrificing clarity.
IK10 Vandal-Proof
The cameras are covered with certified IK10 rugged housing to withstand malicious damage. Shatter-proof and vandal-proof, even "professional" thieves cannot destroy them.
Easy PoE Installation within Minutes
Applying the Power over Ethernet (PoE) technology, cameras in this kit transmit videos and electric power using only one network cable. Enjoy more convenience with fewer costs and less wiring.
Withstand Any Weather
Cameras of this PoE system are equipped with robust IP66 aluminum metal housing to withstand extreme weather conditions such as rain, sleet, or strong winds. Ideal for outdoor use.
Specifications:
Video & Audio
Image Sensor
1/2.8" CMOS Sensor
Resolution
Standard: 3840 x 2160 (8.0 Megapixel) at 25 fps
Lens
f=2.7-13.5 mm F=1.6-3.3
Optical Zoom
5X
Video Compression
H.265
Viewing Angle
• Horizontal: 96° - 27°
• Vertical: 69° - 21°
Day/Night Mode
Automatic switching
Night Vision
Up to 30M (LED: 24 pcs/14 mil/850 nm)
Audio
Audio recording
Power Supply
PoE
IEEE 802.3 af, 48V Active
DC Power
DC 12.0V⎓1A, < 12W
Interface
Power
DC power input
System
Reset button
Ethernet
1 × 10M/100 Mbps RJ45
Storage
Micro SD card slot (Max. 256 GB)
Audio
Built-in microphone
Software Features
Frame Rate
• Mainstream: 2 fps - 25 fps (Standard: 25 fps)
• Substream: 4 fps - 15 fps (Standard: 10 fps)
Bitrate
• Mainstream: 4096 Kbps - 8192 Kbps (Standard: 6144 Kbps)
• Substream: 64 Kbps - 512 Kbps (Standard: 256 Kbps)
Browser
Edge, Chrome, Firefox, Safari
Operating System
PC: Windows, Mac OS; Smartphone: iOS, Android
Smart Alerts
Motion/people/car detection; pet detection
Recording Mode
Motion recording (default); schedule recording; 24/7 recording
Protocol & Default
HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Max.User Access
20 users (1 administrator account & 19 user accounts); supports up to 12 simultaneous video streams (10 × substream & 2 × mainstream)
Smart Home
Google Assistant
Working Environment
Temperature
Working temperature: -10°C - +55°C (14°F - 131°F)
Humidity
Working humidity: 10% - 90%
Weatherproof
IP66
Vandal-proof
IK10
Height & Weight
Size
Φ133 x 100.25 mm
Weight
686 g
RLN16-410:
Video & Audio
Image Sensor
1/2.8" CMOS Sensor
Resolution
Standard: 3840 x 2160 (8.0 Megapixel) at 25 fps
Lens
f=2.7-13.5 mm F=1.6-3.3
Optical Zoom
5X
Video Compression
H.265
Viewing Angle
• Horizontal: 96° - 27°
• Vertical: 69° - 21°
Day/Night Mode
Automatic switching
Night Vision
Up to 30M (LED: 24 pcs/14 mil/850 nm)
Audio
Audio recording
Power Supply
PoE
IEEE 802.3 af, 48V Active
DC Power
DC 12.0V⎓1A, < 12W
Interface
Power
DC power input
System
Reset button
Ethernet
1 × 10M/100 Mbps RJ45
Storage
Micro SD card slot (Max. 256 GB)
Audio
Built-in microphone
Software Features
Frame Rate
• Mainstream: 2 fps - 25 fps (Standard: 25 fps)
• Substream: 4 fps - 15 fps (Standard: 10 fps)
Bitrate
• Mainstream: 4096 Kbps - 8192 Kbps (Standard: 6144 Kbps)
• Substream: 64 Kbps - 512 Kbps (Standard: 256 Kbps)
Browser
Edge, Chrome, Firefox, Safari
Operating System
PC: Windows, Mac OS; Smartphone: iOS, Android
Smart Alerts
Motion/people/car detection; pet detection
Recording Mode
Motion recording (default); schedule recording; 24/7 recording
Protocol & Default
HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Max.User Access
20 users (1 administrator account & 19 user accounts); supports up to 12 simultaneous video streams (10 × substream & 2 × mainstream)
Smart Home
Google Assistant
Working Environment
Temperature
Working temperature: -10°C - +55°C (14°F - 131°F)
Humidity
Working humidity: 10% - 90%
Weatherproof
IP66
Vandal-proof
IK10
Height & Weight
Size
Φ133 x 100.25 mm
Weight
686 g
