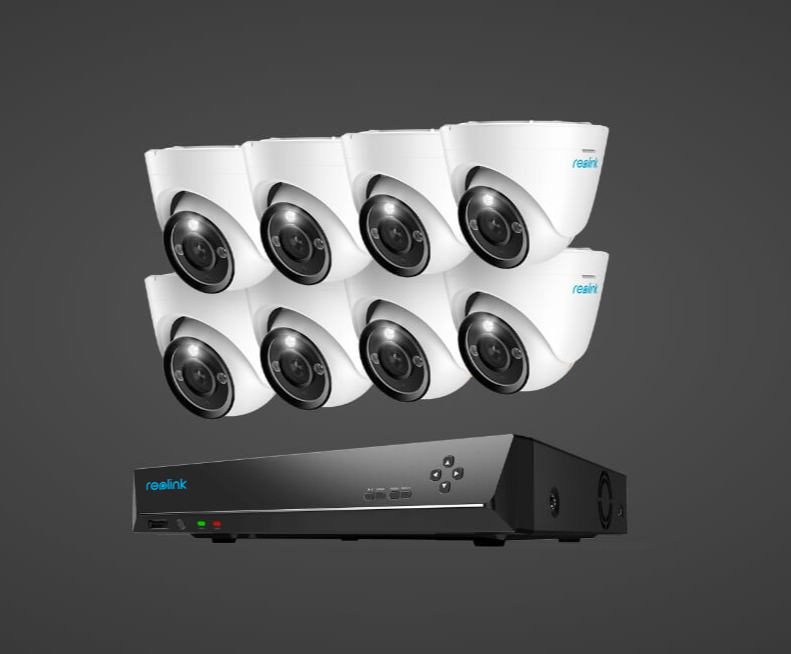

Reolink 12MP HD PoE Person Detection Security System with Color Night Vision
Reolink 12MP HD PoE Person Detection Security System with Color Night Vision
SKU:RLK16-1200D8-A
12MP PoE
Security System with Color Night Vision
12MP Ultra HD
Person/Vehicle Detection
Power over Ethernet
16-Channel NVR
Find Beauty in the Details with 12MP
Enjoy the breathtaking details and hues with 12MP ultra-high resolution and F1.6 large aperture lens. Even the tiniest subjects such as raindrops and rose petals look extraordinary.
Precise Detection, Premium Protection
Featuring person/vehicle detecting technology, RLK16-1200D8-A will let you know whether a person or a vehicle is on your property and send you accurate alerts. Also, it can help you keep an eye on your pets. You don’t have to waste time checking all alarms to find the important ones.
Night Vision with Ultra Clarity &
Color
Each camera of this surveillance kit is equipped with a powerful spotlight that keeps on at night, making night scenes as vivid as day. You can see more details in full color without worrying about poor lights.
Easy PoE Setup
No power cable or adapter is needed. RLK16-1200D8-A with Power over Ethernet (PoE) technology needs only one single network cable for each camera. Less wiring, less cost, more convenience.
Continuous 24/7 Recording
With a 4TB HDD and the storage capacity of up to 12TB, the PoE video surveillance kit supports all cameras to record continuously at the same time. You will have all-day videos without missing a beat.
Work with Various Reolink IP Cameras
This security camera system can be expanded up to 16-camera kit with Reolink IP cameras - bullet, dome or PTZ; 12MP, 8MP, 5MP or 4MP – to cover every corner in your home, store or factory.
Easy Management
You can get remote access to your cameras and control them via free Reolink APP and Client, besides NVR. Just a touch away, manage your home, store or factory easily.
Motion Alerts
Once something suspicious is detected, the cameras will
inform you by sending to your device an instant push notification or email.
Know what's happening all the time.
Multi-Cam Live Feed
See the live feed of multiple cams on the same screen. Easier to have an overview of your property.
Smart Playback
You can not only replay saved videos to find key information but also filter the video by detection modes and control the timeline to quickly locate what you want to see.
Record Scheduling
You can choose to have the camera record 24/7 continuously, only when the movement is detected, or in accordance with your daily schedule.
Motion Zone
You can customize the motion zone to your liking, deciding where objects’ movements will be detected and where they will not.
Note:
The cameras of the kit cannot work without the NVR.
Video & Audio
Image Sensor
1/2.49" CMOS Sensor
Video Resolution
Default: 4512X2512 (12 Megapixels) at 20 frames/sec
Lens
f=4.0mm; F=1.6, with IR-cut filter
Video Format
H.265
Field of View
• Horizontal: 93°
• Vertical: 49°
Day & Night
Auto-switching with IR-cut filter
Infrared Night Vision
30 meters (LED: 2pcs/28mil/850nm)
Color Night Vision
Spotlight: 1pcs/4.3W/6500K/700 Lumens
Audio
Two-way audio (via Reolink App/Client)
Power
PoE
IEEE 802.3af, 48V Active
DC Power
DC 12.0V⎓1A, <12W
Interface
Power
DC power port
System
Reset button
Ethernet
One 10M/100Mbps; RJ45
Audio
Built-in microphone and speaker
Software Features
Frame Rate
• Mainstream: 2fps - 20fps (default: 20fps)
• Substream: 4fps - 20fps (default: 10fps)
Code Rate
• Mainstream: 3072Kbps - 10240Kbps (default: 8192Kbps)
• Substream: 128Kbps - 1024Kbps (default: 768Kbps)
Smart Alarm
Motion detection; person detection; vehicle detection; pet detection
Record Mode
Motion-triggered recording (default); scheduled recording; 24/7 recording
Working Environment
Temperature
Operating temperature: -10°C~+55°C (14°F~131°F)
Humidity
Operating humidity: 10% ~ 90%
Waterproof
IP67
Size & Weight
Hardware
Hardware
V2
Video/Audio Input
IP Video Input
PoE IP camera x 16
Audio Input
Cameras with built-in mic
Video/Audio Output
Video Output
VGA, HDMI
Display Resolution
• HDMI: 3840*2160, 1920*1080, 1280*1024, 1280*720, 1024*768
• VGA: 1920*1080, 1280*1024, 1280*720, 1024*768
Audio output
1-channel, RCA
Decoding
Live View/Playback Resolution
4096*3072/3840*2160/2560*1920/2560*1440/2048*1536/2304*1296/1080p/720p
Video Format
H.265, H.264
Synchronous Playback
Up to 4 channels
HDD
SATA
2 x SATA interface (1 x 4TB HDD included)
Capacity
Up to 12TB (max. 6TB capacity for each HDD)
External HDD
No
External Interface
USB Interface
2 x USB 2.0
Network Interface
• 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface for LAN/WAN
• 16, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera
PoE
Max. Power Per Port
25W
Supported Standard
IEEE 802.3 af/at
Network
Network Protocol
HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
Browser Supported
Firefox, Chrome, Edge, Safari
OS Supported
PC: Windows, Mac OS; Smartphone: iOS, Android
Max. User Access
20 users (1 admin account & 19 user accounts); up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
General
Power Supply
DC 48V~54V
Power Consumption
<10W (without HDD & PoE)
Working Environment
Temperature: -10°C~+45°C (14°F~113°F); humidity: 10%~90%
Dimensions
330 x 45 x 285mm
Weight
2.4kg
Note:
The camera is only applicable for bundle sale.
Video & Audio
Image Sensor
1/2.49" CMOS Sensor
Video Resolution
Default: 4512X2512 (12 Megapixels) at 20 frames/sec
Lens
f=4.0mm; F=1.6, with IR-cut filter
Video Format
H.265
Field of View
• Horizontal: 93°
• Vertical: 49°
Day & Night
Auto-switching with IR-cut filter
Infrared Night Vision
30 meters (100ft) (LED: 2pcs/28mil/850nm)
Color Night Vision
Spotlight: 1pcs/4.3W/6500K/700 Lumens
Audio
Two-way audio
Power
POE
IEEE 802.3af, 48V Active
DC Power
DC 12.0V⎓1A, <12W
Interface
Power
DC power port
System
Reset button
Ethernet
One 10M/100Mbps; RJ45
Storage
microSD card slot (Max. 256GB)
Audio
Built-in microphone and speaker
Software Features
Frame Rate
• Mainstream: 2fps - 20fps (default: 20fps)
• Substream: 4fps - 20fps (default: 10fps)
Code Rate
• Mainstream: 3072Kbps - 10240Kbps (default: 8192Kbps)
• Substream: 128Kbps - 1024Kbps (default: 768Kbps)
Browsers Supported
Edge, Chrome, Firefox, Safari
OS Supported
PC: Windows, Mac OS; Smartphone: iOS, Android
Smart Alarm
Motion detection/person detection/vehicle detection/pet detection
Record Mode
Motion-triggered recording (default); scheduled recording
Protocols & Standards
HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Maximal User Access
20 Users (1 admin account & 19 user accounts); support up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
Work with
Google Assistant
Working Environment
Temperature
Operating temperature: -10°C~+55°C (14°F~131°F)
Humidity
Operating humidity: 10% ~ 90%
Waterproof
IP67
Size & Weight
Dimension
Φ117.4*103.8mm
Weight
515g
Dimension
Φ117.4*103.7mm
Weight
510g
