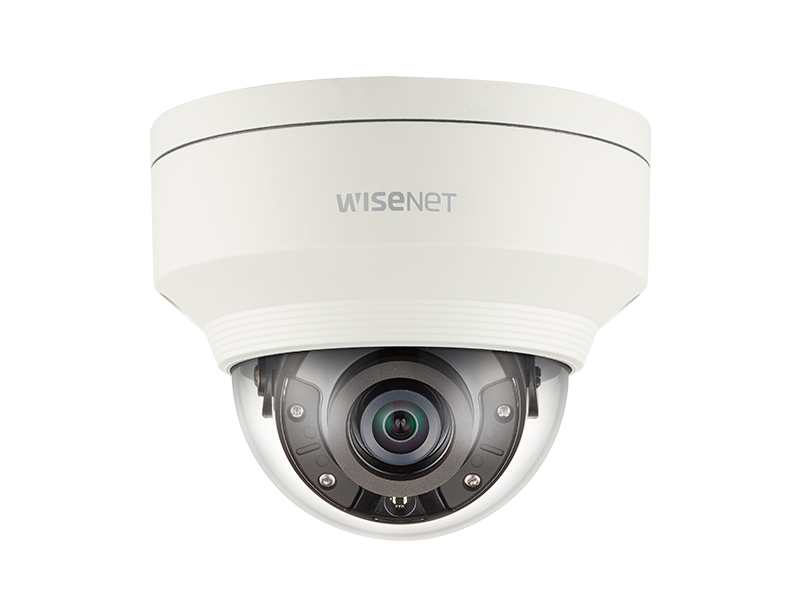

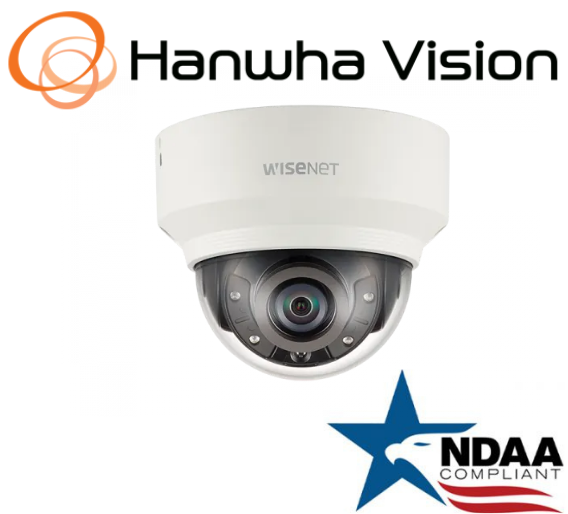

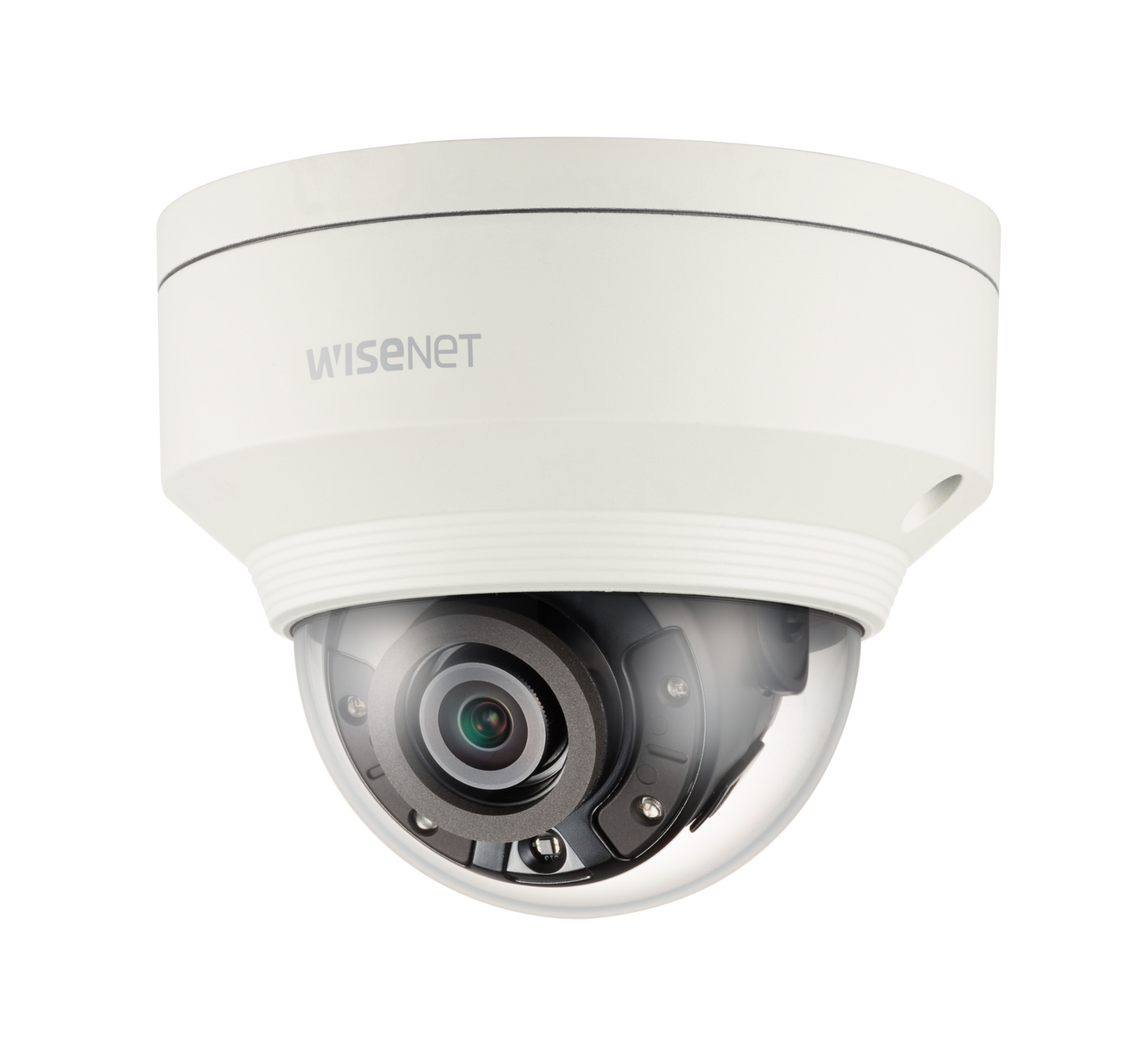

Hanwha Techwin  XNV-8020R 5MP IP Network Vandal Dome Security Camera

XNV-8020R

5MP IR Outdoor Dome

• Built-in 3.7mm fixed lens
• 30fps@all resolutions (H.265/H.264)
• Loitering, Directional detection, Fog detection, Digital auto tracking, Sound classification, Heatmap, People counting, Queue management, Tampering
• Motion detection, Handover
• Hallway view, WiseStream II support
• IR viewable length 30m, IP67/IP66, IK10

Product Specification

• Video
  Imaging Device		1/1.8" 6MP CMOS
  Resolution		2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
  Max. Framerate		H.265/H.264: Max.30fps/25fps(60Hz/50Hz) MJPEG: Max.30fps/25fps(60Hz/50Hz)
  Min. Illumination		Color: 0.16Lux(F1.6, 1/30sec) BW: 0Lux(IR LED on)
  Video Out		CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation
  Lens
  Focal Length (Zoom Ratio)		3.7mm fixed focal
  Max. Aperture Ratio		F1.6
  Angular Field of View		H: 97.5° / V: 71.9° / D: 126.2°
  Min. Object Distance		0.4m(1.31ft)
  Focus Control		Fixed
  Pan / Tilt / Rotate
  Pan / Tilt / Rotate Range		0°~354° / 0°~67°/ 0°~355°
  Operational
  Camera Title		Displayed up to 85 characters
  Day & Night		Auto(ICR)
  Backlight Compensation		BLC, HLC, WDR
  Wide Dynamic Range		120dB
  Digital Noise Reduction		SSNRV
  Digital Image Stabilization		Support(built-in gyro sensor)
  Defog		Support(built-in optical filter)
  Motion Detection		8ea, 8point polygonal zones
  Privacy Masking		32ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic
  Gain Control		Low / Middle / High
  White Balance		ATW / AWC / Manual / Indoor / Outdoor
  LDC		Support
  Electronic Shutter Speed		Minimum / Maximum / Anti flicker (2~1/12,000sec)
  Video Rotation		Flip, Mirror, Hallway view(90°/270°)
  Analytics		Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification
  Business Intelligence		People counting, Queue management, Heatmap
  Alarm I/O		Input 1ea / Output 1ea
  Alarm Triggers		Analytics, Network disconnect, Alarm input
  Alarm Events		File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output
  Audio In		Selectable(mic in/line in), Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
  Audio Out		Line out, Max.output level: 1Vrms
  IR Viewable Length		30m(98.43ft)
  Network
  Ethernet		RJ-45(10/100BASE-T)
  Video Compression		H.265/H.264: Main/Baseline/High, MJPEG
  Audio Compression		G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC : 48Kbps at 8/16/32/48KHz
  Smart Codec		Manual(5ea area), WiseStreamⅡ
  Bitrate Control		H.264/H.265: CBR or VBR MJPEG: VBR
  Streaming		Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
  Protocol		IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
  Security		HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access Log 802.1X Authentication(EAP-TLS, EAP-LEAP)
  Application Programming Interface		ONVIF Profile S/G SUNAPI(HTTP API) Wisenet open platform
  General
  Web Viewer		Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser : MS Explore11, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
  Edge Storage		Micro SD/SDHC/SDXC 2slot 512GB
  Memory		1024MB RAM, 256MB Flash
  Environmental & Electrical
  Operating Temperature / Humidity		-30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH
  Storage Temperature / Humidity		-50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
  Certification		IP66/IP67, IK10
  Input Voltage		PoE(IEEE802.3af, Class3), 12VDC
  Power Consumption		PoE: Max 9.00W 12VDC: Max 8.00W
  Mechanical
  Color / Material		Ivory / Aluminum
  Product Dimensions / Weight		Ø120.0x97.5mm(Ø4.72x3.84"), 615g(1.36 lb)

• • Design and specifications are subject to change without notice.
  • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
