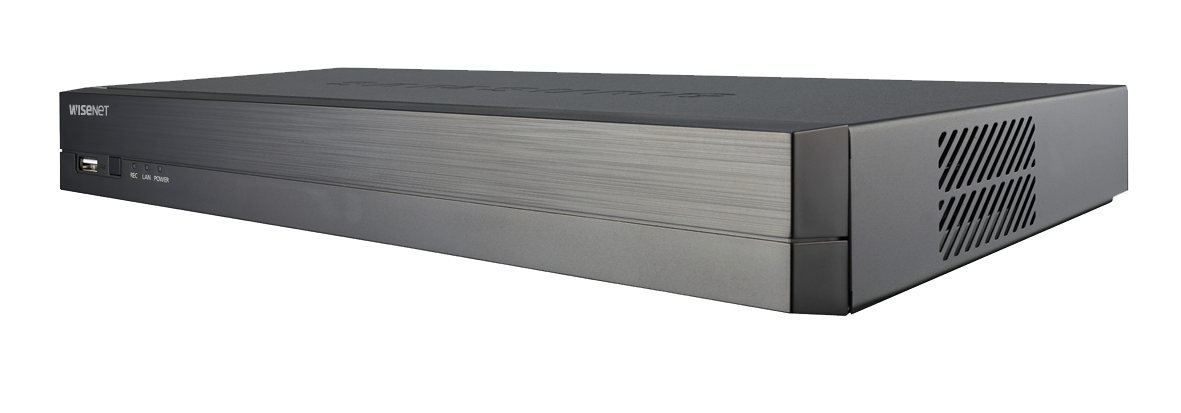

Hanwha Techwin WiseNet XSeries XRN-410S 4CH 8MP PoE+ NVR IP Security Recorder

XRN-410S

No HDD

4CH 8M H.265 NVR with PoE Switch

Product Spec

• Display
  Network camera
  	Inputs	Max. 4CH
  	Resolution	8MP ~ CIF
  	Protocols	Wisenet, ONVIF
  Decoding
  	Local Display	[Clone Display] HDMI: 3840 x 2160, 1920x1080, 1280x720 VGA: 1920x1080, 1280x720
  	Resolution	8MP(60fps), 5MP(90fps), 3MP(120fps), 2MP(240fps), 720p(240fps), D1(240fps)
  Performance
  Record
  	Compression	H.265, H.264, MJPEG
  	Recording Bandwidth	Max. 50Mbps
  	Resolution	8MP ~ CIF
  	Mode	Normal, Schedule(Continuous/Event), Event (Pre/Post)
  	Event Trigger	Alarm Input, Video Loss, Camera Event(Alarm, MD, Video Analytics, Defocus)
  	Event Action	e-Mail, PTZ Preset, Alarm Out, Buzzer, Monitor Out
  Search & Play
  	Playback Bandwidth	Max. 32Mbps(4CH simultaneously)
  	User	Max. 4 Users (Local 1, Remote 3)
  	Simultaneous playback	Max. 4CH(Local Monitor, Network)
  	Fisheye Dewarping	WEB / CMS
  Storage
  	Supported HDD	Up to 6TB
  	HDD Slot	SATA 1ea(Max. 6TB)
  Backup
  	File backup	BU/Exe(GUI), JPG/AVI(Network)
  	Function	Multi channel(Upto 4CH) Play, Date-Time/Title display
  Network
  Protocol		IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
  DDNS		Wisenet DDNS
  Transmission Bandwidth		Max. 64Mbps
  Audio
  	Input/Output	4 CH(network)
  	Compression	G.711, G.726, AAC(16/48KHz)
  	Audio Communication	2-Way
  Max Remote Users		Search(3), Live Unicast(10), Multicast(20)
  Security		IP address filtering, User access Log, 802.1x, Encryption
  Web viewer
  	Supported OS	Windows 7, 8, 10, Mac OS X 10.9. 10.10. 10.11
  	Supported browser	Plug-in free web viewer - Supported Browser: Google Chrome 47, MS Edge 20 Plug-in Webviewer - Supported MS Explore 11, Apple Safari 9 * Mac OS X only
  Viewer Software		SSM, Webviewer, Smart Viewer, Wisenet mobile Support SDK/CGI(SUNAPI) for integration to 3'rd party VMS
  Functions
  Camera Setup
  	Item	IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage
  PTZ
  	Control	Via GUI, Webviewer, SPC-2000
  Smart phone
  	Support Model	iOS, Android
  	Protocol Support	RTP, RTSP, HTTP, CGI(SUNAPI)
  	Control	Live(Multi-Profile Support), Playback
  	Max. Remote Users	Search(3), Live Unicast(10)
  Redundancy
  	ARB	Support
  Easy configuration		P2P(QR code)
  Interface
  HDMI		1EA
  VGA		1EA
  e-SATA		1EA
  Audio		Out(1EA, RCA, Line)
  Ethernet		RJ-45(10/100/1000BASE-T) x 1 RJ-45(PoE+) x 4
  Alarm		In 4EA, Out 2EA
  USB		2EA(Front 1, Rear 1)
  System
  System Control		Mouse, IR remocon, Web, Controller (SPC-2000)
  Language		English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai
  Environmental
  Operating Temperature		0°C to +40°C(32℉ to 104℉)
  Operating Humidity		20% ~ 85% RH
  Electrical
  Power Input		54V DC / 1.67A
  Power Consumption		MAX. 13W (44BTU, 2TB HDD x 1ea)
  PoE Budget		Max. 50W
  Mechanical
  Color / Material		Black / Metal
  Dimension (WxHxD)		W300 x H47 x D208.7mm (11.81”X1.85”X8.22”) (1U)
  Weight		1.694Kg

• • Design and specifications are subject to change without notice.
  • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
