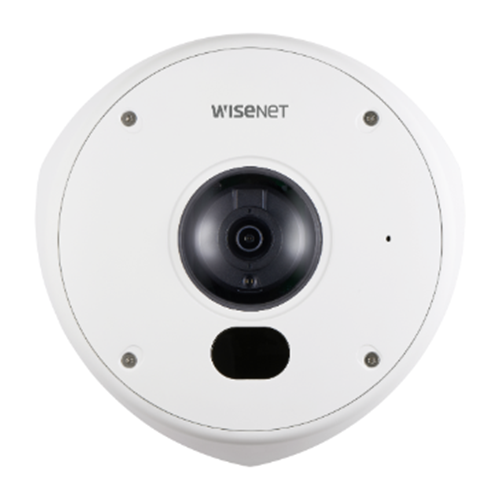

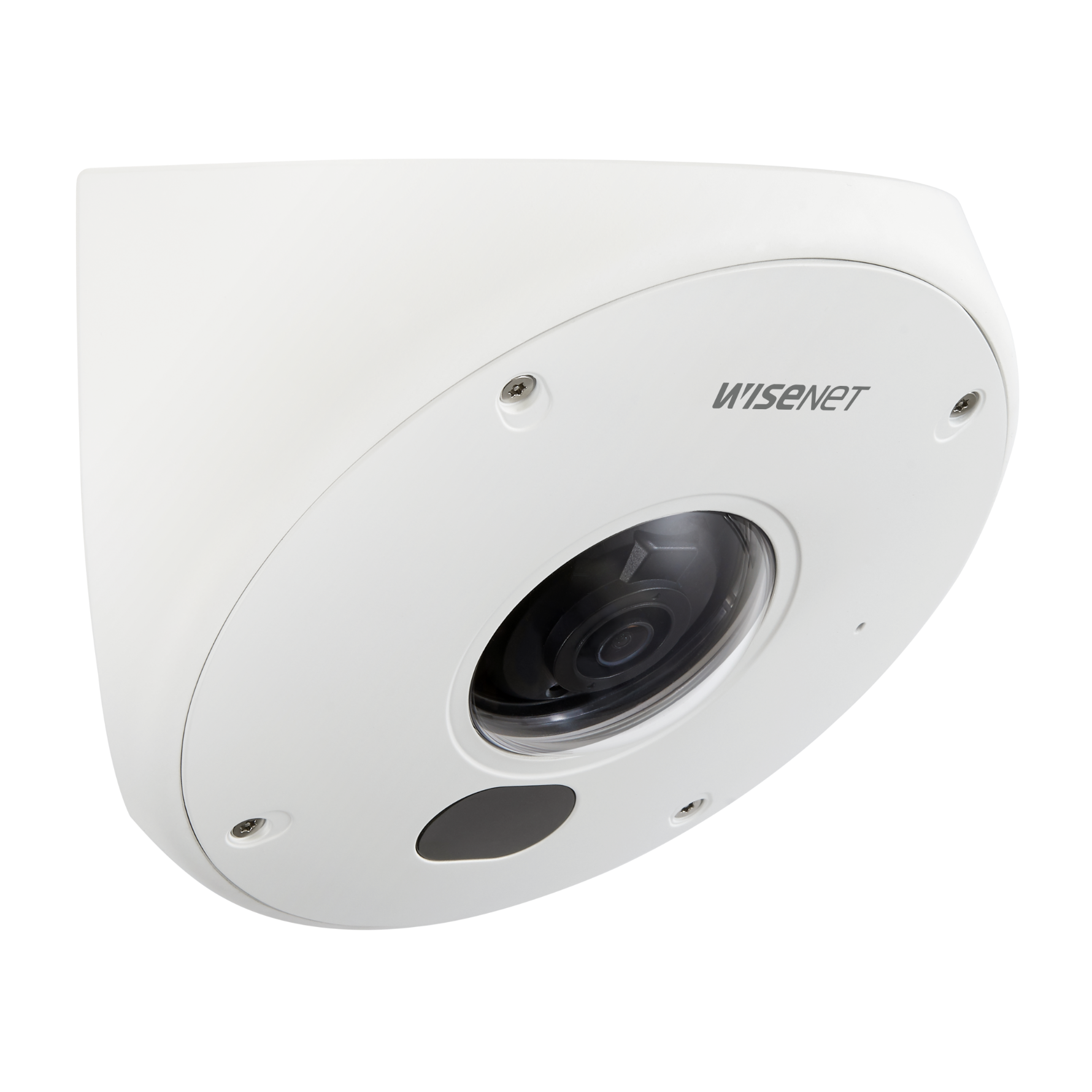

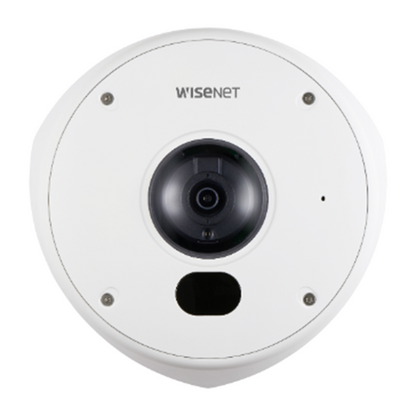

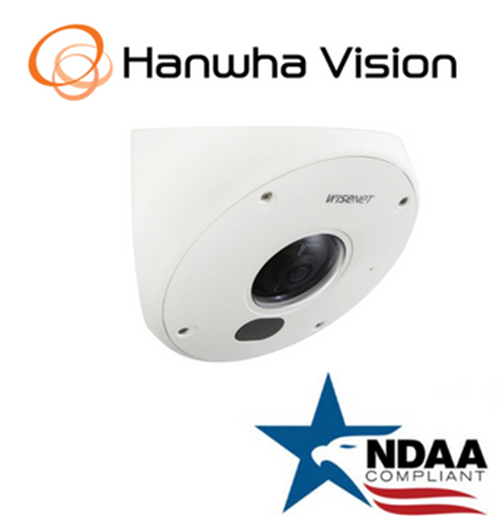

Hanwha Techwin TNV-7010RC 3MP IP  Corner Mount Security Camera 2.8mm fixed lens

TNV-7010RC

3M H.265 NW Corner Mount Camera

Product Spec

• Video
  Imaging Device		1/2.8" 3.2M CMOS
  Resolution		2048x1536, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
  Max. Framerate		H.265/H.264/MJPEG: Max. 30fps at all resolutions
  Min. Illumination		Color: 0.3 lux (F2.0, 1/30sec) B/W: 0 lux (F2.0, 1/30sec)
  Video Out		CVBS : 1.0 Vp-p / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation
  Lens
  Focal Length (Zoom Ratio)		2.8mm fixed focal
  Max. Aperture Ratio		F2.0
  Angular Field of View		H: 102° / V: 75° / D: 129°
  Min. Object Distance		0.4m(1.31ft)
  Focus Control		Manual
  Pan / Tilt / Rotate
  Pan / Tilt / Rotate Range		0° / ±15° / 0°
  Operational
  Camera Title		Displayed up to 85 characters
  Day & Night		Auto(ICR)
  Backlight Compensation		BLC, HLC, WDR
  Wide Dynamic Range		120dB
  Digital Noise Reduction		SSNRⅤ
  Digital Image Stabilization		Support
  Defog		Support
  Motion Detection		8ea, 8point polygonal zones
  Privacy Masking		32ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic
  Gain Control		Low / Middle / High
  White Balance		ATW / AWC / Manual / Indoor / Outdoor
  LDC		Support
  Electronic Shutter Speed		2 ~ 1/12,000sec
  Video Rotation		Flip, Mirror, Hallway view(90°/270°)
  Analytics		Tampering, Loitering, Directional detection, Defocus detection, Fog detection, Virtual line, Enter/Exit, Appear/Disappear, Audio detection, Face detection, Motion detection, Digital auto tracking, Sound classification, Shock detection
  Alarm I/O		Input 1ea / Output 1ea
  Alarm Triggers		Analytics, Network disconnect, Alarm input, Motion detection
  Alarm Events		File upload via FTP & E-Mail, Notification via E-Mail, Local storage (SD/SDHC/SDXC) or NAS recording at event triggers, External output, DPTZ preset
  Audio In		Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
  Audio Out		Line out, Max.output level: 1Vrms
  IR Viewable Length		10m(32.8ft)
  Network
  Ethernet		RJ-45(10/100BASE-T)
  Video Compression		H.265/H.264: Main/Baseline/High, MJPEG
  Audio Compression		G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 8/16/32/48KHz
  Smart Codec		Manual(5ea area), WiseStreamⅡ
  Bitrate Control		H.264/H.265: CBR or VBR MJPEG: VBR
  Streaming		Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
  Protocol		IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
  Security		HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)
  Application Programming Interface		ONVIF Profile S/G SUNAPI(HTTP API) Wisenet open platform
  General
  Web Viewer		Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
  Edge Storage		Micro SD/SDHC/SDXC 1slot 256GB
  Environmental & Electrical
  Operating Temperature / Humidity		-10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
  Storage Temperature / Humidity		-50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
  Certification		IP66, IP5K9K, IK10
  Input Voltage		PoE(IEEE802.3af, Class3), 12VDC
  Power Consumption		12VDC: Max. 11W PoE: Max. 12
  Mechanical
  Color / Material		White / Aluminum
  RAL Code		RAL9003
  Product Dimensions / Weight		236(W) x 236(H) x 126.5(V)mm(9.29" x 9.29" x 4.98"), 2200g(4.85 lb)

•
  • Design and specifications are subject to change without notice.
  • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
