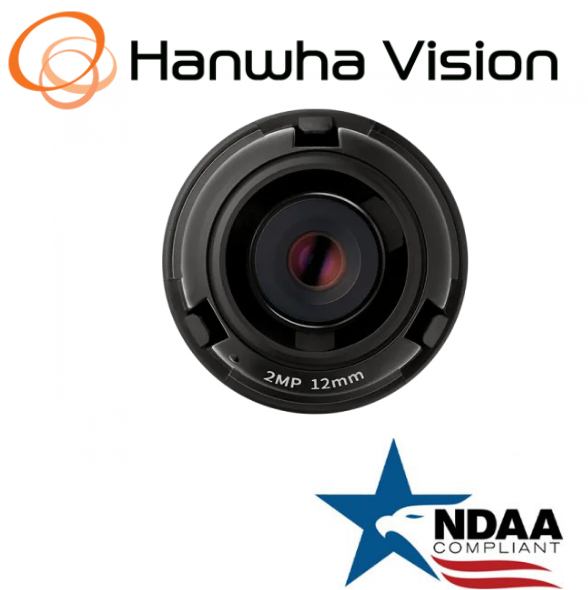

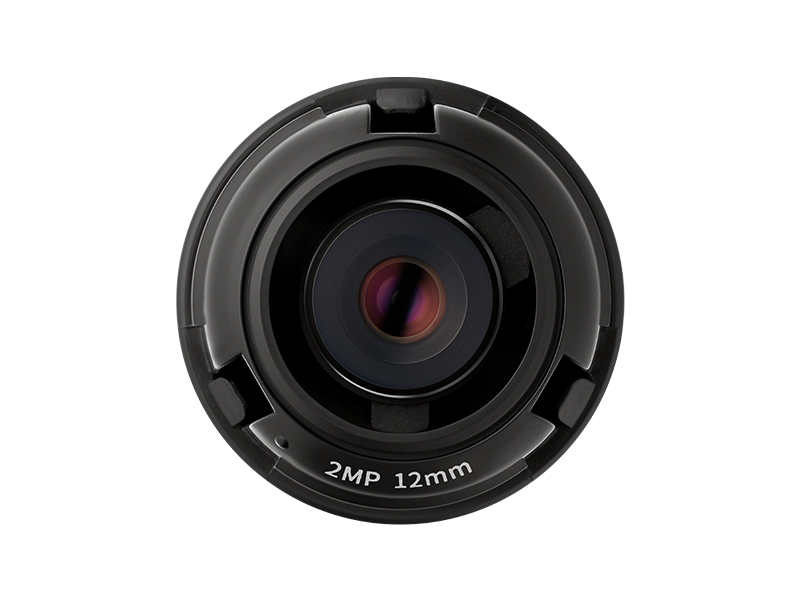

Replaceable lens for the PNM-9320VQP / PNM-9321VQP
- 1/2.8" 2MP CMOS
- 12.0mm fixed focal lens
- FoV: H: 26.3°, V: 14.9°
Product specifications
| Imaging Device |
1/2.8" 2MP CMOS |
| Effective Pixels |
1945(H)x1109(V) |
| Min. Illumination |
Color: 0.055Lux(F2.0, 1/30sec) B/W: 0.055Lux(F2.0, 1/30sec) |
| Focal Length (Zoom Ratio) |
12.0mm fixed focal |
| Max. Aperture Ratio |
F2.0 |
| Angular Field of View |
H: 26.3? V: 14.9? D: 30.0? |
| Focus Control |
Fixed |
| Pan / Tilt / Rotate Range |
-90?~+90? / +10~+97? / -180?~+180? |
| Color / Material |
Black / Plastic |
| Product dimensions / weight |
?35.5x35.9mm, 30g |
