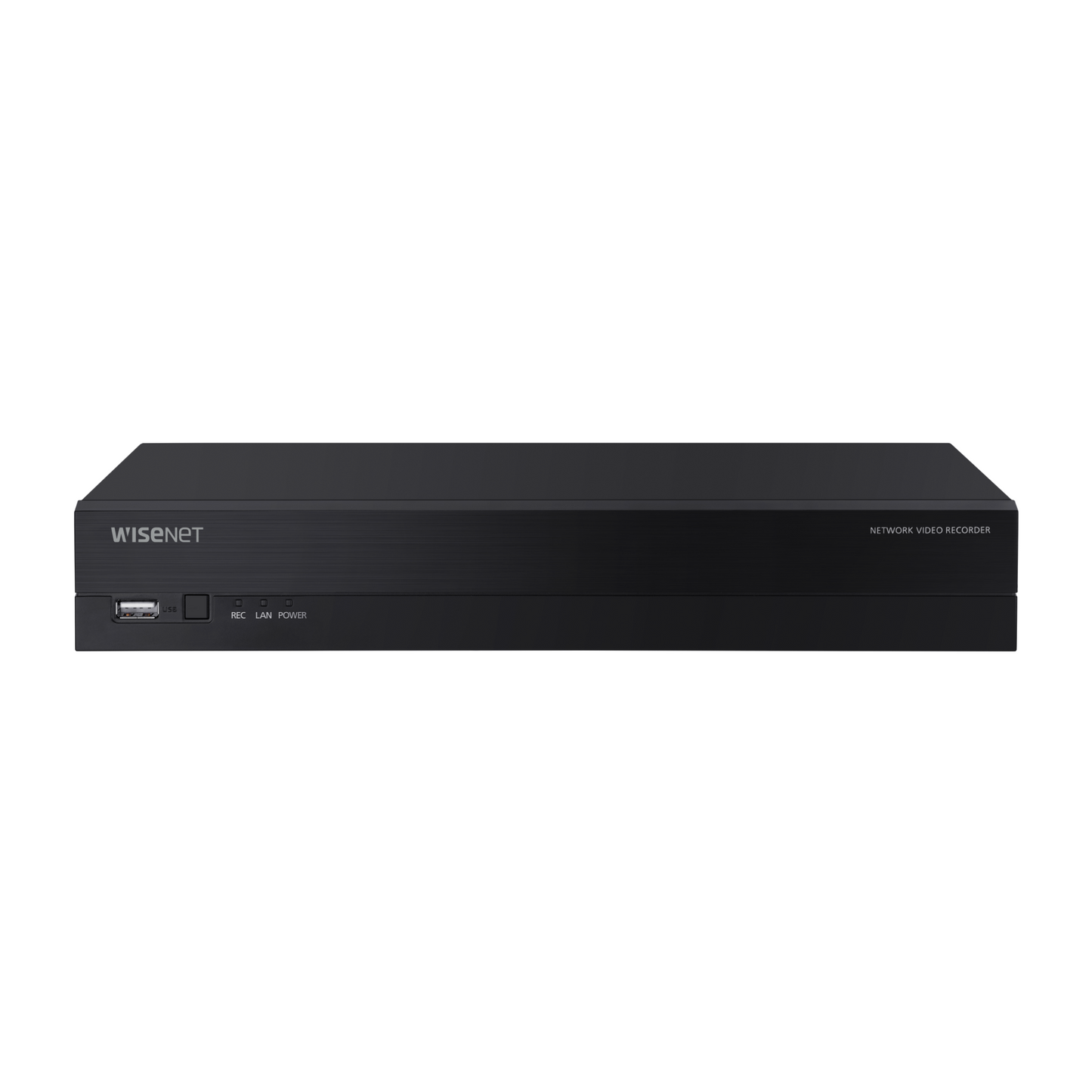

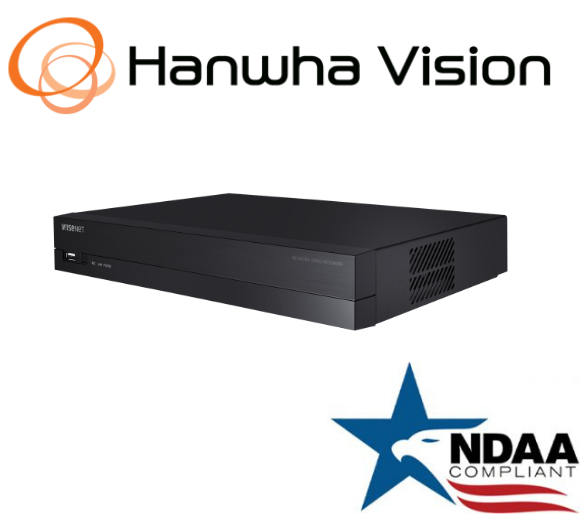

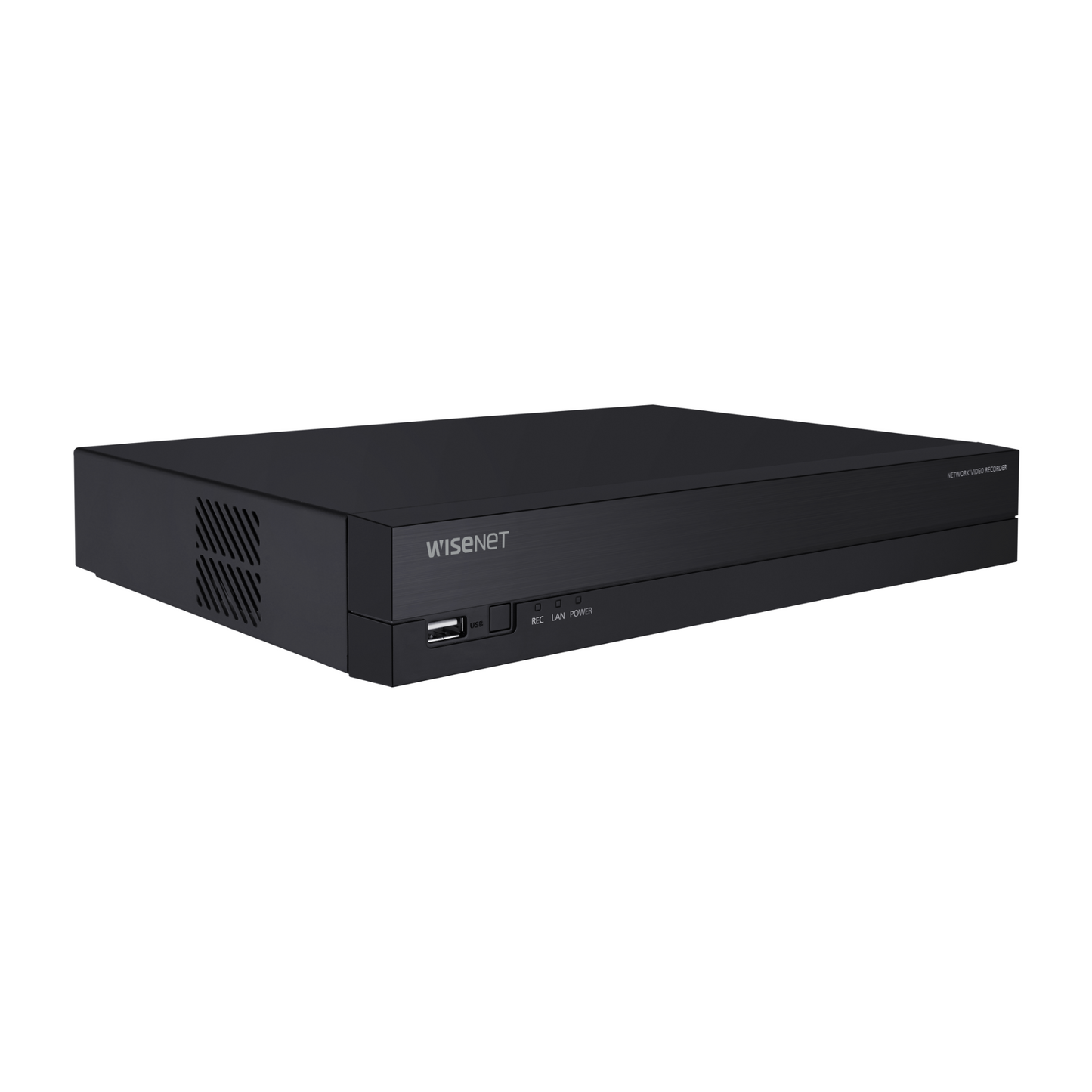

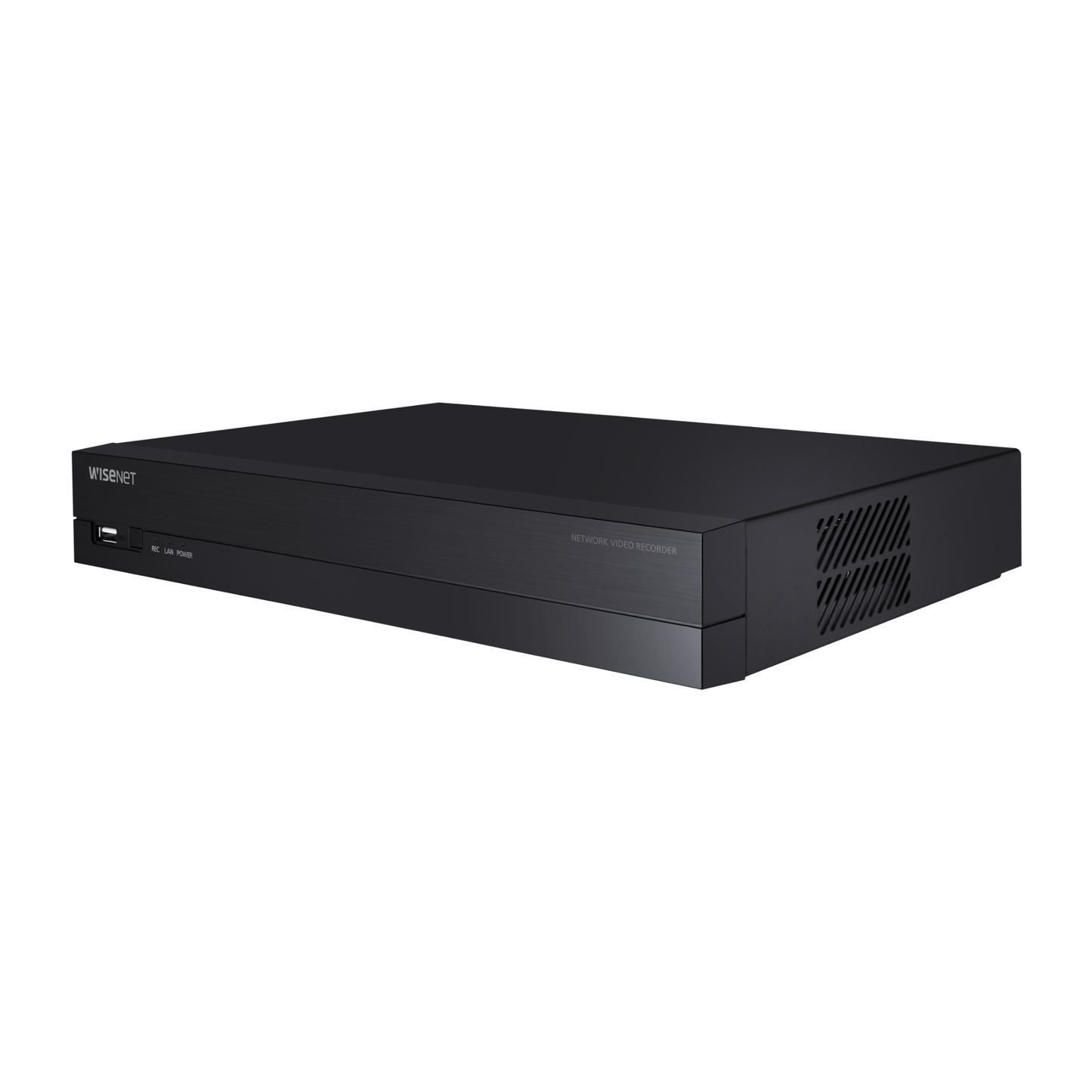

Hanwha Techwin QRN-820S 8-Ch 8MP 4K PoE NVR IP Security Recorder (No HDD)
Hanwha Techwin QRN-820S 8-Ch 8MP 4K PoE NVR IP Security Recorder (No HDD)
SKU:QRN-820S
Regular price
$760.00 USD
Regular price
Sale price
$760.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Hanwha Techwin QRN-820S 8-Channel 8MP PoE NVR IP Security Recorder No HDD
QRN-820S
8CH 8MP NVR with PoE switch No HDD
• Up to 8CH 8MP resolution
• H.265, H.264, MJPEG codec
• WiseStream support
• 80Mbps network camera recording
• Plug & play by 8 PoE port
• Max. 1 HDD(Up to 6TB)
• HDMI output
• P2P service(QR code)
• H.265, H.264, MJPEG codec
• WiseStream support
• 80Mbps network camera recording
• Plug & play by 8 PoE port
• Max. 1 HDD(Up to 6TB)
• HDMI output
• P2P service(QR code)
Product Specification
Display Network camera
Inputs
Max. 8CH
Resolution
8MP ~ CIF
Protocols
Wisenet, ONVIF
Decoding
Local Display
HDMI: 3840 x 2160, 1920x1080, 1280x720
Resolution
8MP(60fps), 5MP(90fps), 3MP(120fps), 2MP(240fps), 720p(240fps), D1(240fps)
Performance Record
Compression
H.265, H.264, MJPEG
Recording Bandwidth
Max. 80Mbps
Resolution
8MP ~ CIF
Mode
Normal, Schedule(Continuous/Event), Event (Pre/Post), Dual track Recording
Event Trigger
Alarm Input, Video Loss, Camera Event(Alarm, MD, Video Analytics, Defocus)
Event Action
e-Mail, PTZ Preset, Buzzer, Monitor Out
Search & Play
Playback Bandwidth
Max. 32Mbps(8CH simultaneously)
User
Max. 4 Users (Local 1, Remote 3)
Simultaneous playback
Max. 8CH(Local Monitor, Network)
Fisheye Dewarping
WEB / CMS / Mobile
Storage
Supported HDD
Up to 6TB
HDD Slot
SATA 1ea(Max. 6TB)
Backup
File backup
BU/Exe(GUI), JPG/AVI(Network)
Function
Multi channel(Upto 8CH) Play, Date-Time/Title display
Network
Protocol
IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
DDNS
Wisenet DDNS
Audio
Input/Output
8CH(network)
Compression
G.711, G.726, AAC(16/48KHz)
Audio Communication
2-Way
Max Remote Users
Search(3), Live Unicast(10), Multicast(20)
Security
HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Device Certificate(Hanwha Techwin Root CA)
Viewer Software
SSM, Webviewer, Smart Viewer, Wisenet mobile
Support SDK/CGI(SUNAPI) for integration to 3'rd party VMS
Functions Camera Setup
Item
IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup, Wisestream, Dynamic GOV/FPS, VA Setup
Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage
PTZ
Control
Via GUI, Webviewer
Smart phone
Support Model
iOS, Android
Protocol Support
RTP, RTSP, HTTP, HTTPS, CGI(SUNAPI)
Control
Live(Multi-Profile Support), Playback
Max. Remote Users
Search(3), Live Unicast(10)
Redundancy
ARB
Support
Easy configuration
P2P(QR code)

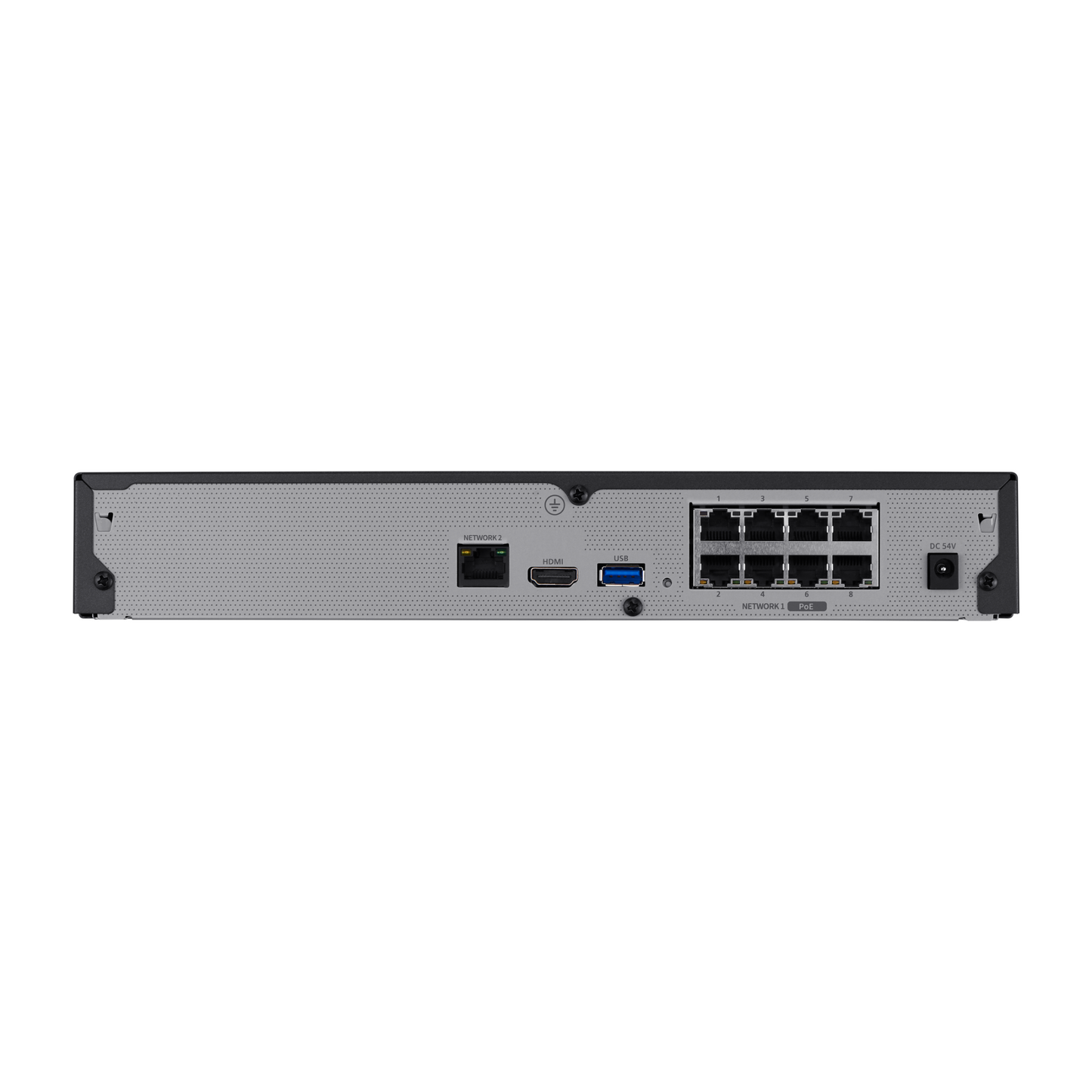

Interface
HDMI
1EA
Ethernet
RJ-45(10/100/1000BASE-T) x 1
RJ-45(PoE+) x 8
USB
2EA(Front 1, Rear 1)
System
System Control
Mouse, IR remocon, Web
Language
English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese
Environmental
Operating Temperature
0°C to +40°C(32℉ to 104℉)
Operating Humidity
20% ~ 85% RH
Electrical
Power Input
54VDC / 1.67A
Power Consumption
Max. 76.2W(1HDD, PoE on)
Max. 8.1W(1HDD, PoE off)
PoE Budget
Max. 65W
Mechanical
Color / Material
Black / Metal
Dimension (WxHxD)
W300.0 x H47.1 x D208.4 mm (11.8" x 1.85" x 8.2") (1U)
Weight
1.01Kg (2.23lb)
- • Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
