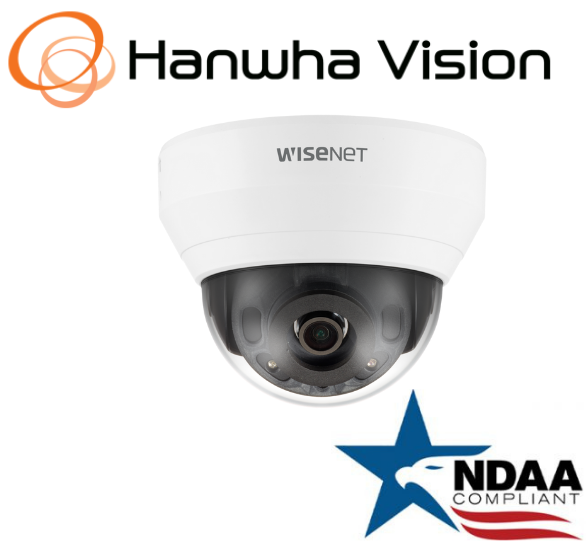

Hanwha Techwin QND-6022R 2MP IR Dome Network IP Security Camera

QND-6022R

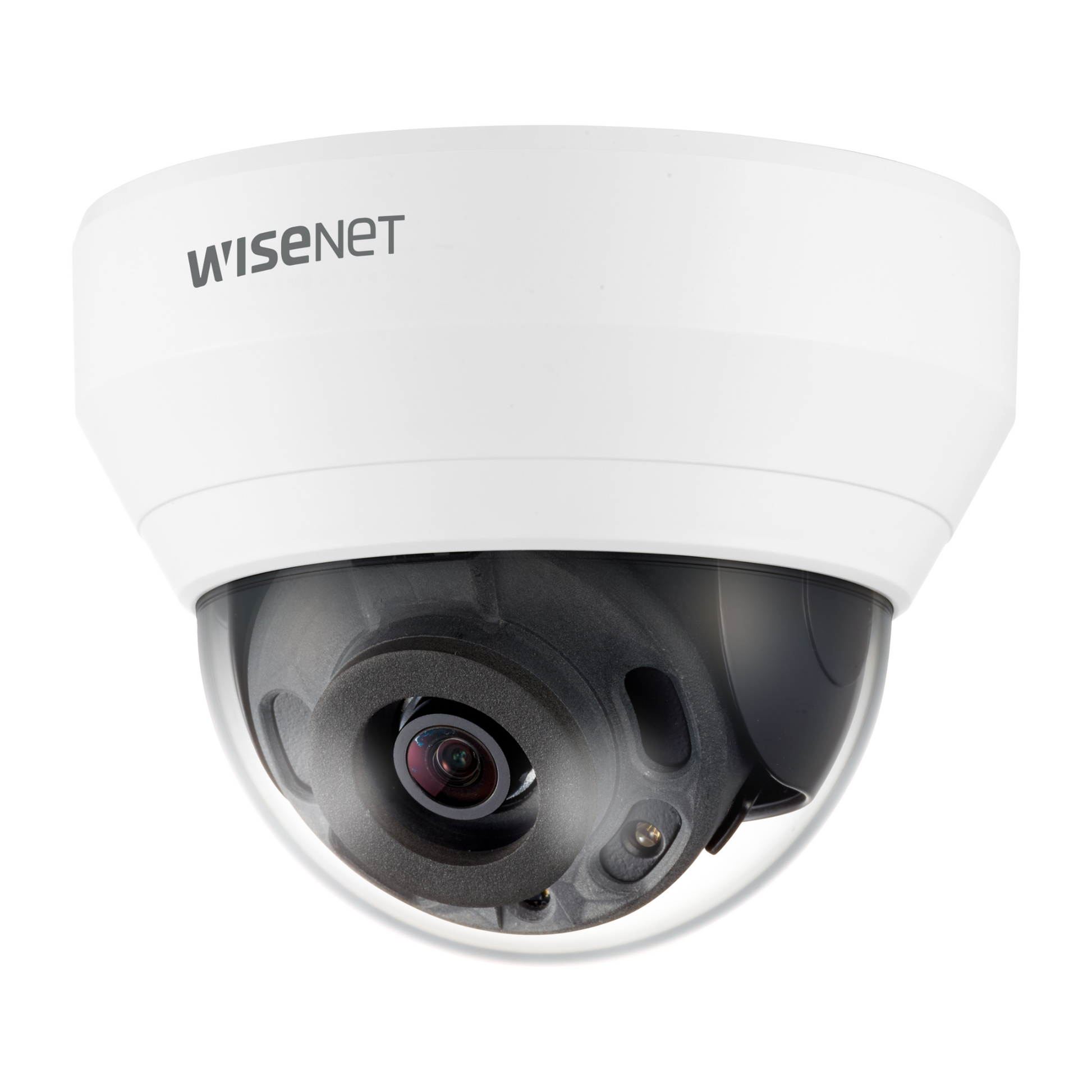

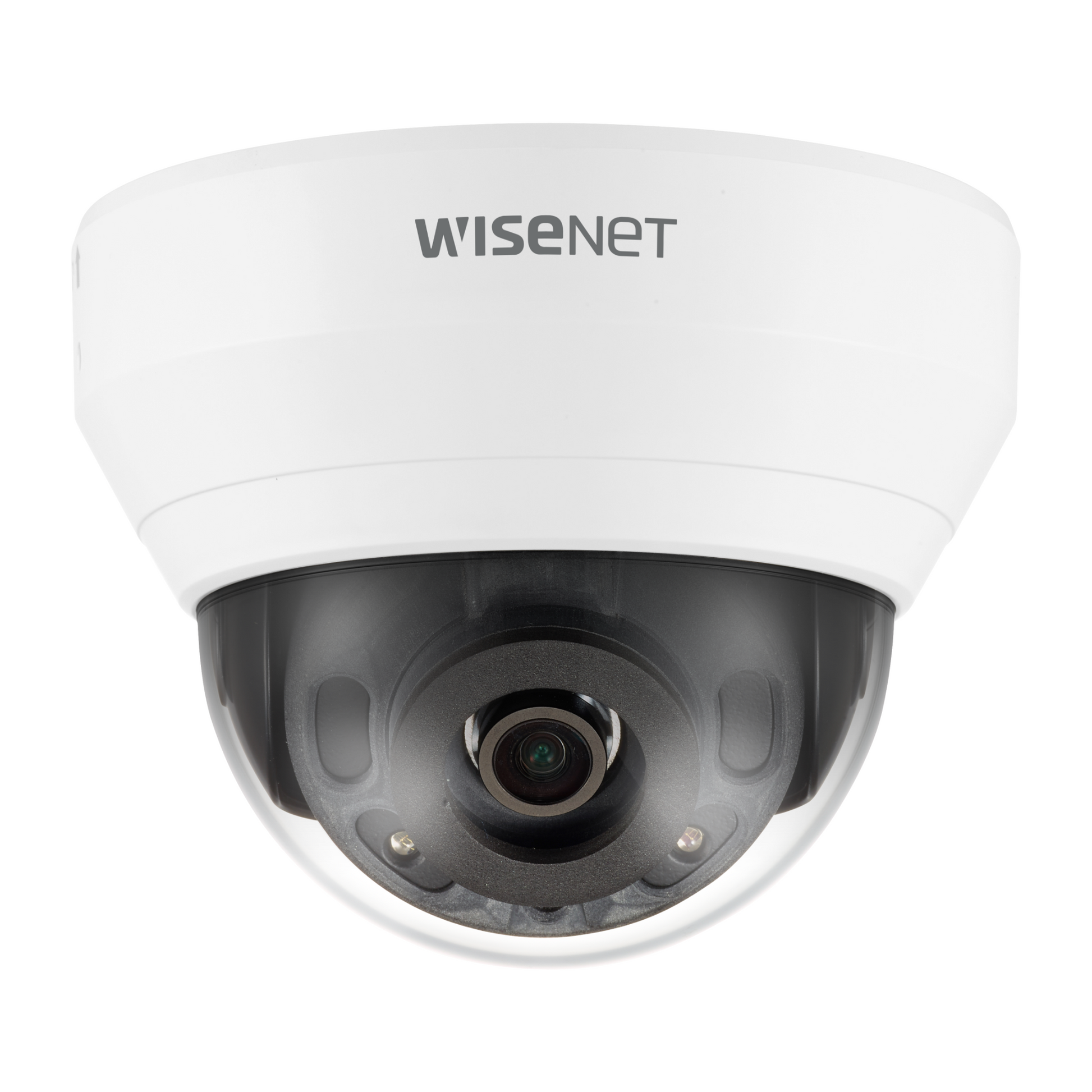

2 MP Network IR Dome Camera with 4mm Lens

• 2 Megapixel (1920 x 1080) resolution
• Built-in 4mm fixed lens
• 30fps@all resolutions (H.265/H.264)
• H.265, H.264, MJPEG codec supported, Multiple streaming
• Day & Night (ICR), WDR (120dB)
• Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
• micro SD (128GB) memory slot, PoE / 12V DC
• IR viewable length 20m
• Hallway view support
• Analog video out for easy installation
• LDC support (Lens Distortion Correction)
• Built-in microphone
• Genetec Stratocast compatible

Product Specification

• Video
  Imaging Device		1/2.8" 2MP CMOS
  Resolution		1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
  Max. Framerate		H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz)
  Min. Illumination		Color: 0.03Lux(F1.6, 1/30sec) BW: 0Lux(IR LED on)
  Video Out		CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
  Lens
  Focal Length (Zoom Ratio)		4.0mm fixed focal
  Max. Aperture Ratio		F1.6
  Angular Field of View		H: 87.6 / V: 46.4° / D: 104.5°
  Focus Control		Fixed
  Pan / Tilt / Rotate
  Pan / Tilt / Rotate Range		0°~350° / 0°~67° / 0°~355°
  Operational
  Camera Title		Displayed up to 85 characters
  Day & Night		Auto(ICR)
  Backlight Compensation		BLC, WDR, SSDR
  Wide Dynamic Range		120dB
  Digital Noise Reduction		SSNR
  Motion Detection		4ea, polygonal zones
  Privacy Masking		6ea, rectangular zones
  Gain Control		Low / Middle / High
  White Balance		ATW / AWC / Manual / Indoor / Outdoor
  LDC		Support
  Electronic Shutter Speed		Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
  Video Rotation		Flip, Mirror, Hallway view(90°/270°)
  Analytics		Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
  Alarm I/O		Input 1ea / Output 1ea
  Alarm Triggers		Analytics, Network disconnect, Alarm input
  Alarm Events		File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output
  Audio In		Built-in mic
  IR Viewable Length		20m(65.62ft)
  Network
  Ethernet		RJ-45(10/100BASE-T)
  Video Compression		H.265/H.264: Main/High, MJPEG
  Audio Compression		G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
  Smart Codec		WiseStreamⅡ
  Bitrate Control		H.264/H.265: CBR or VBR MJPEG: VBR
  Streaming		Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles)
  Protocol		IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
  Security		HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)
  Application Programming Interface		ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
  General
  Webpage Language		English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch
  Web Viewer		Supported OS: Windows 7, 8.1, 10, Mac OS X 10.12, 10.13, 10.14 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
  Edge Storage		Micro SD/SDHC/SDXC 1slot 128GB
  Memory		512MB RAM, 256MB Flash
  Environmental & Electrical
  Operating Temperature / Humidity		-10°C ~ +55°C(-14°F ~ +131°F) / Less than 90% RH
  Storage Temperature / Humidity		-30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH
  Input Voltage		PoE(IEEE802.3af, Class3), 12VDC
  Power Consumption		PoE: Max 7.40W, typical 6.00W 12VDC: Max 6.40W, typical 5.10W

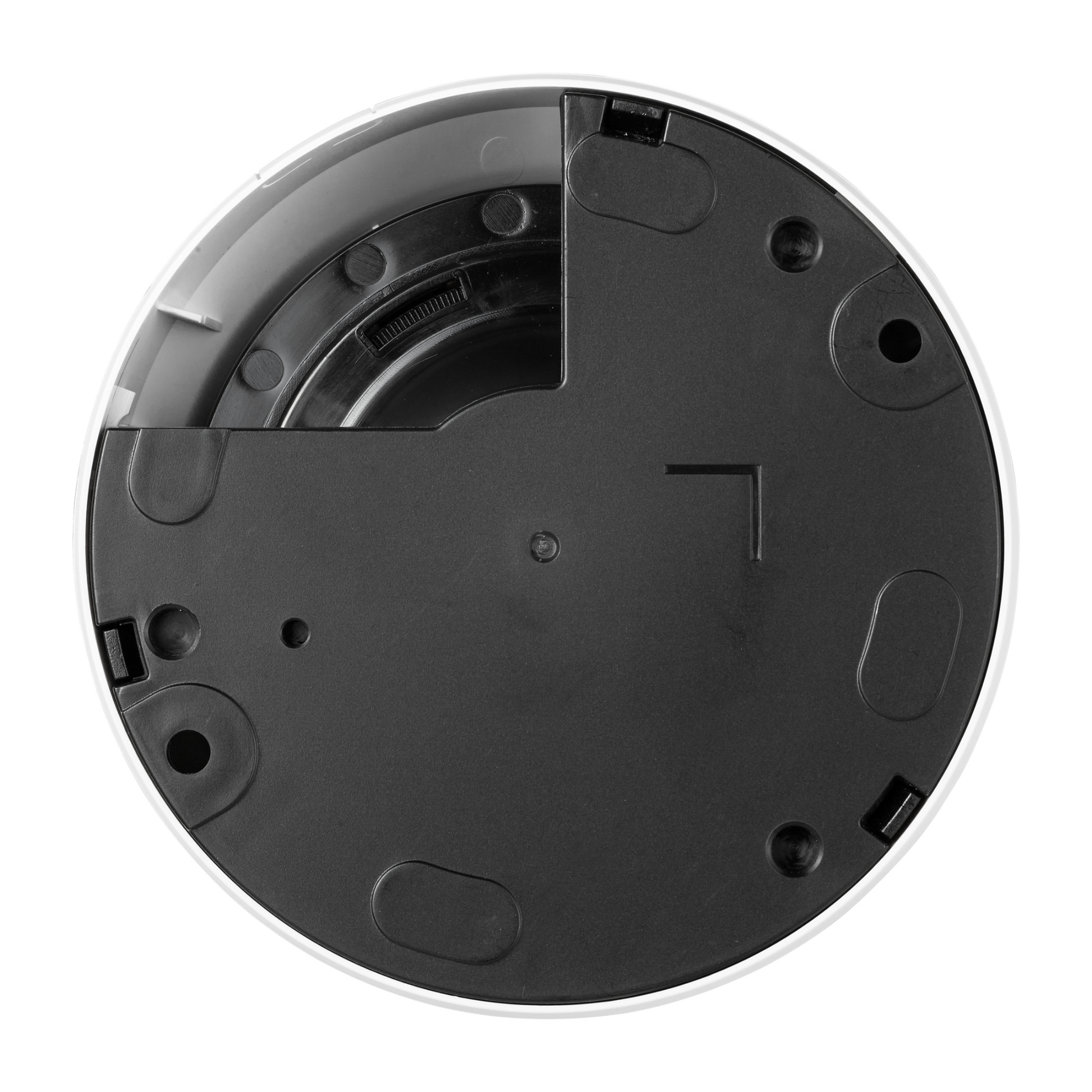

  Mechanical
  Color / Material		White / Plastic
  RAL Code		RAL9003
  Product Dimensions / Weight		Ø110.0x86.0mm(Ø4.33x3.39"), 255g(0.56 lb)
  DORI (EN62676-4 standard)
  Detect (25PPM/ 8PPF)		40.0m(131.36ft)
  Observe (63PPM/ 19PPF)		16.0m(52.54ft)
  Recognize (125PPM/ 38PPF)		8.0m(26.27ft)
  Identify (250PPM/ 76PPF)		4.0m(13.14ft)

• • Design and specifications are subject to change without notice.
  • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
