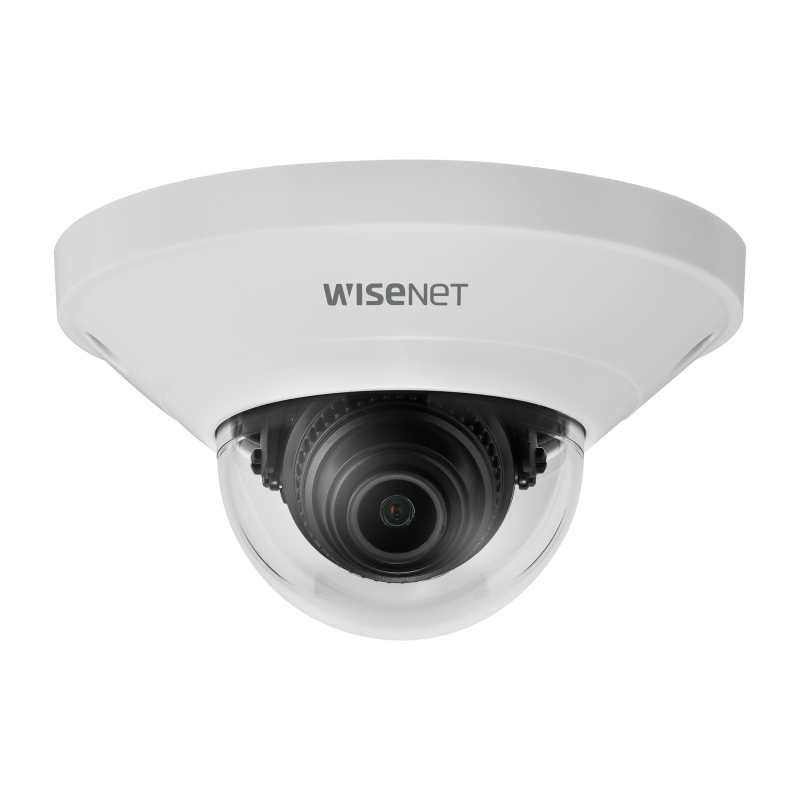

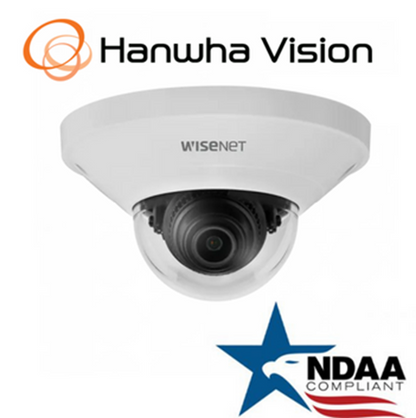

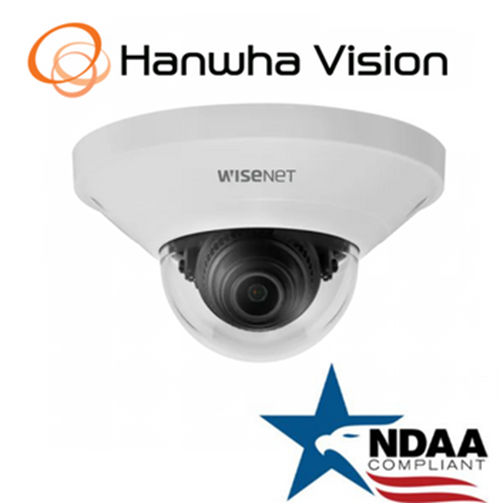

Hanwha Techwin QND-6011 2MP Indoor Mini Dome Network Security Camera

QND-6011

2 MP Network Super-Compact Dome Camera with 2.8mm Lens

• 2 Megapixel resolution
• Built-in 2.8mm fixed lens
• Ultra-compact design
• 30fps@all resolutions (H.265/H.264)
• H.265, H.264, MJPEG codec supported, Multiple streaming
• Day & Night (ICR), WDR (120dB)
• Defocus detection, Motion detection, Tampering detection
• People counting for retail business intelligence
• micro SD (128GB) memory slot, PoE / 12V DC
• Hallway view support
• IP42, IK08 rated
• LDC support (Lens Distortion Correction)
• Genetec Stratocast compatible

Product Specification

• Video
  Imaging Device		1/2.8" 2MP CMOS
  Resolution		1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
  Max. Framerate		H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz)
  Min. Illumination		Color: 0.03Lux(F2.0, 1/30sec)
  Lens
  Focal Length (Zoom Ratio)		2.8mm fixed focal
  Max. Aperture Ratio		F2.0
  Angular Field of View		H: 113.7 / V: 61.5° / D: 134.5°
  Focus Control		Fixed
  Pan / Tilt / Rotate
  Pan / Tilt / Rotate Range		0°~350° / 0°~69° / 0°~355°
  Operational
  Camera Title		Displayed up to 85 characters
  Day & Night		Auto(Electrical)
  Backlight Compensation		BLC, WDR, SSDR
  Wide Dynamic Range		120dB
  Digital Noise Reduction		SSNR
  Motion Detection		4ea, polygonal zones
  Privacy Masking		6ea, rectangular zones
  Gain Control		Low / Middle / High
  White Balance		ATW / AWC / Manual / Indoor / Outdoor
  LDC		Support
  Electronic Shutter Speed		Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
  Video Rotation		Flip, Mirror, Hallway view(90°/270°)
  Analytics		Defocus detection, Motion detection, Tampering
  Business Intelligence		People counting
  Alarm Triggers		Analytics, Network disconnect
  Alarm Events		File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers
  Network
  Ethernet		RJ-45(10/100BASE-T)
  Video Compression		H.265/H.264: Main/High, MJPEG
  Smart Codec		WiseStreamⅡ
  Bitrate Control		H.264/H.265: CBR or VBR MJPEG: VBR
  Streaming		Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles)
  Protocol		IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
  Security		HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)
  Application Programming Interface		ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
  General
  Webpage Language		English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch
  Web Viewer		Supported OS: Windows 7, 8.1, 10, Mac OSx10.12, 10.13, 10.14 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OSxonly)
  Edge Storage		Micro SD/SDHC/SDXC 1slot 128GB
  Memory		512MB RAM, 256MB Flash
  Environmental & Electrical
  Operating Temperature / Humidity		-10°C ~ +55°C(-14°F ~ +131°F) / Less than 90% RH
  Storage Temperature / Humidity		-30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH
  Certification		IP42, IK08
  Input Voltage		PoE(IEEE802.3af, Class2)
  Power Consumption		PoE: Max 4.80W, typical 2.80W
  Mechanical
  Color / Material		White / Plastic
  RAL Code		RAL9003
  Product Dimensions / Weight		Ø99.0x56.0mm(Ø3.9x2.2"), 145g(0.32 lb)

• • Design and specifications are subject to change without notice.
  • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
