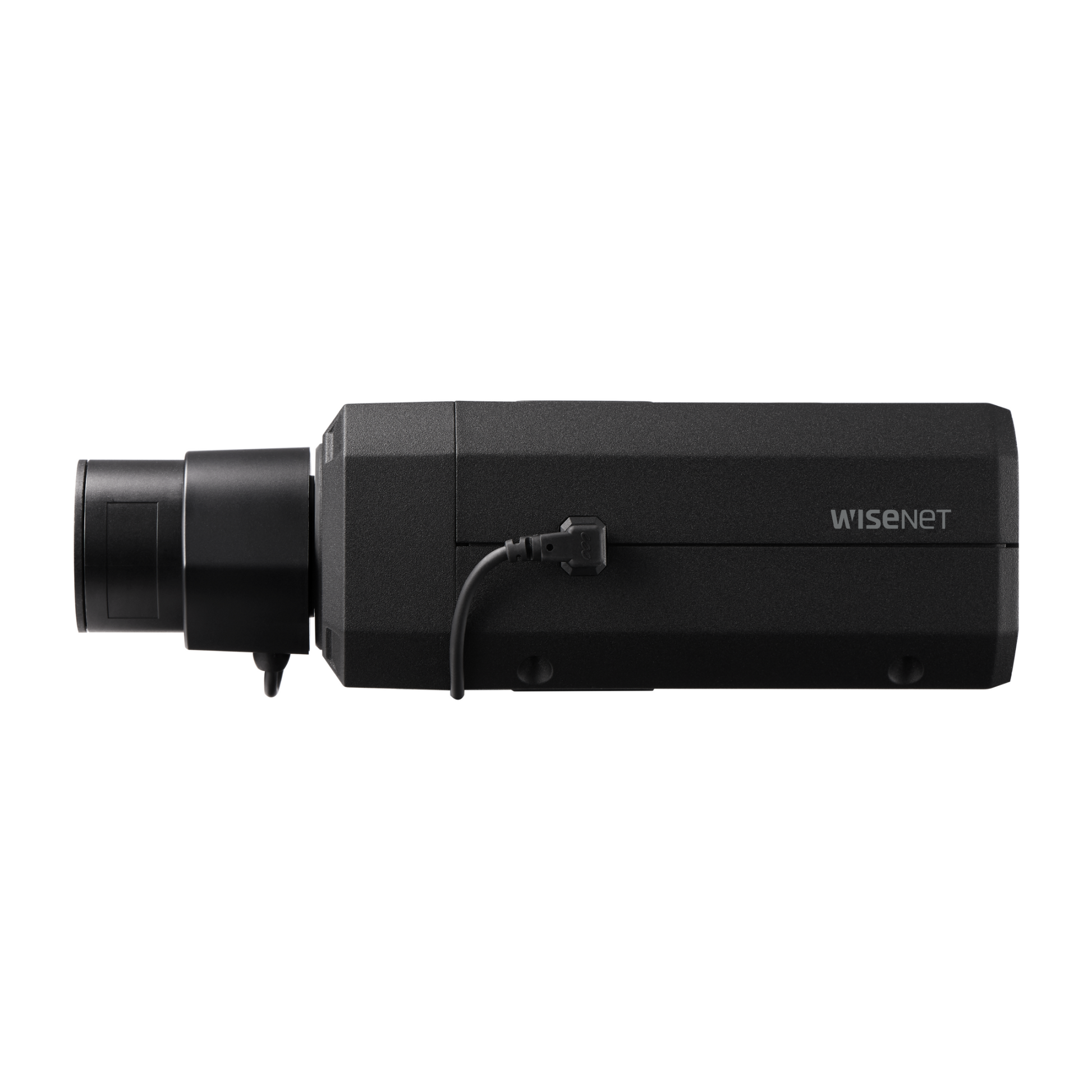

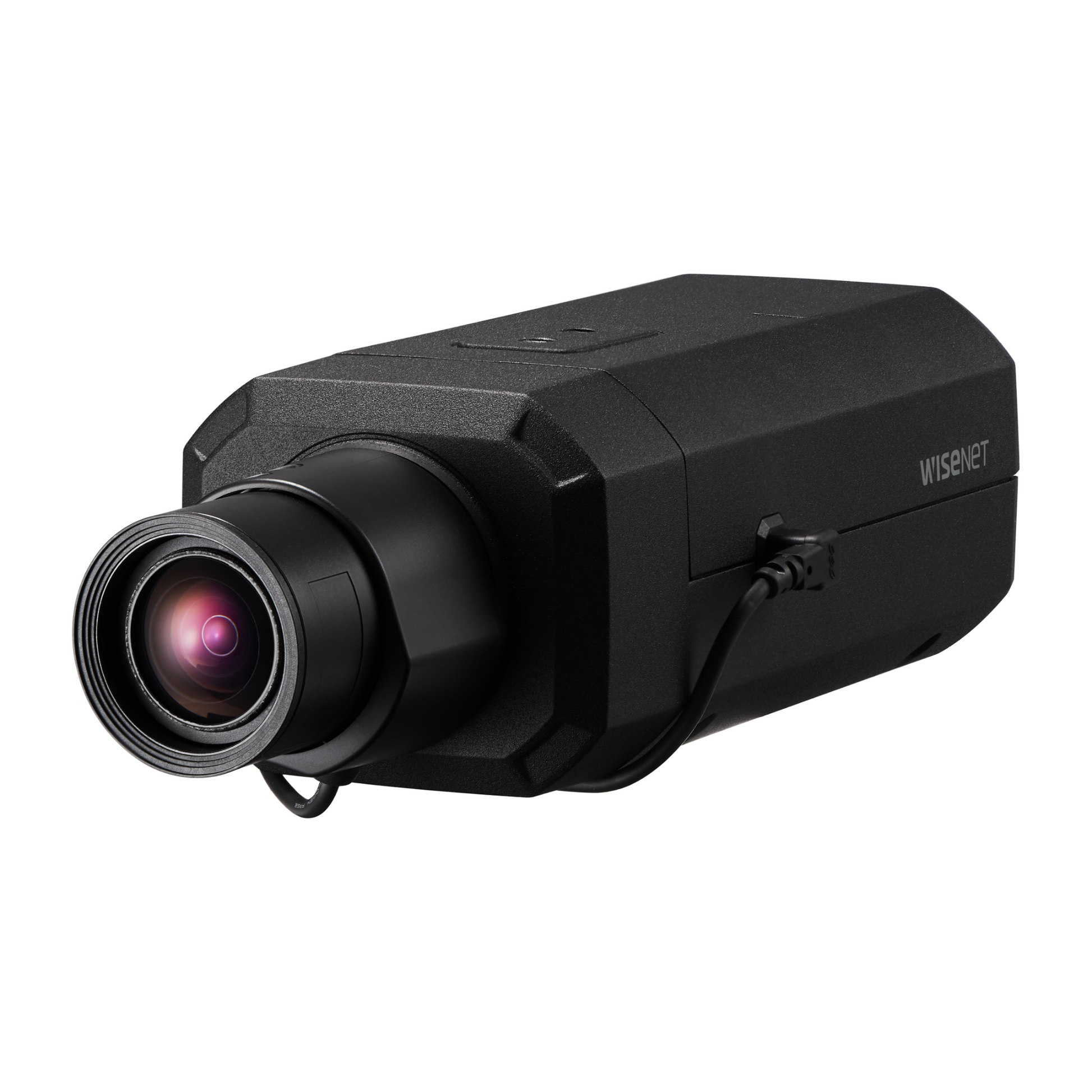

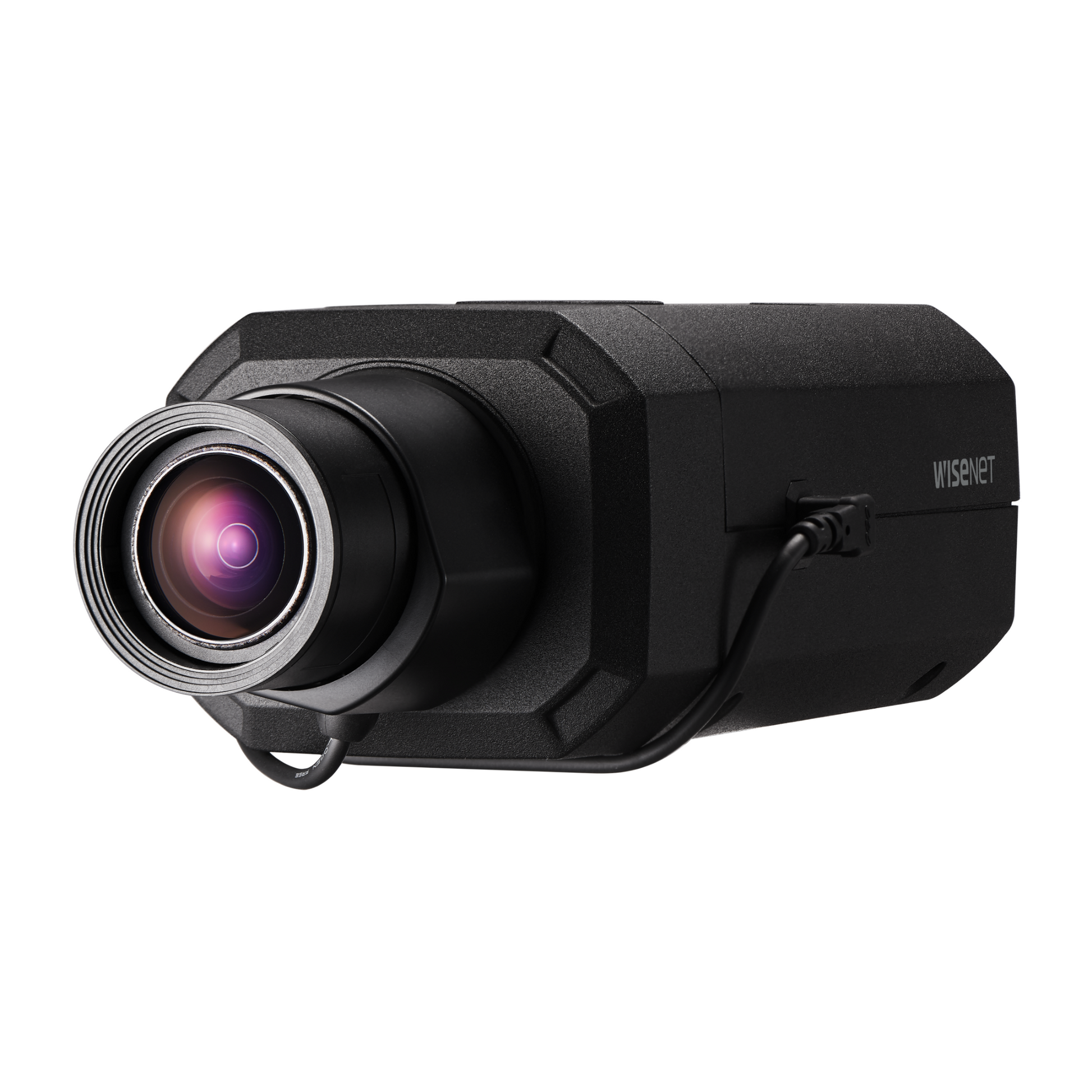

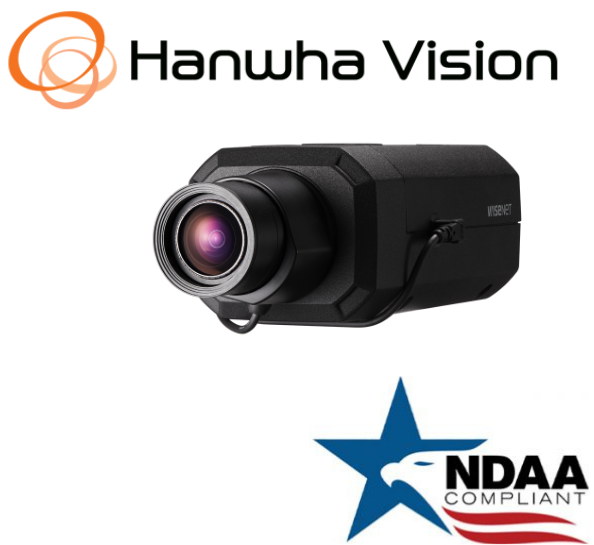

Hanwha Techwin PNB-A6001 2MP POE+ IR Box Network Dome AI IP Security Camera

Hanwha Techwin PNB-A6001 2MP POE+ IR Box Network Dome AI IP Security Camera

PNB-A6001

$1,120.00 USD
$1,120.00 USD
Sale Sold out
Shipping calculated at checkout.

Hanwha Techwin PNB-A6001 2MP POE+ IR Box Network  Dome AI IP Security Camera

PNB-A6001

2MP Box AI camera

  • 2MP resolution @120fps
  • WDR (120dB)
  • Simple focus
  • Triple codec H.265/H.264/MJPEG
  • WiseStream III compression technology
  • extreme WDR
  • USB port for easy installation
  • true D/N
  • Object detection and Attribute Extraction (Person, Face, Vehicle, License Plate)
  • BestShot
  • Compatible with Wisenet Retail Insight v2.0 for Business Intelligence
  • POE+/12VDC
  • TPM with FIPS 140-2 level 2

Specifications

Video
Imaging Device 1/2" CMOS
Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
Max. Framerate H.265/H.264: Max. 60/50fps(60Hz/50Hz, AI analytics on), Max. 120/100fps(60Hz/50Hz, AI analytics off) MJPEG: Max. 15fps/12fps(60Hz/50Hz)
NETD None
Pixel Size None
Min. Illumination Color: 0.006Lux(F1.2, 1/30sec,30IRE) B/W : 0.0006Lux(F1.2, 1/30sec,30IRE), 30/25fps Color: 0.012Lux(F1.2, 1/60sec,30IRE) B/W : 0.0012Lux(F1.2, 1/60sec,30IRE), 60/50fps Color: 0.024Lux(F1.2, 1/120sec,30IRE) B/W : 0.0024Lux(F1.2, 1/120sec,30IRE), 120/100fps
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation
Video Transmission Distance None
Lens
Focal Length (Zoom Ratio) None
Max. Aperture Ratio None
Angular Field of View None
Min. Object Distance None
Focus Control Simple focus
Lens Type DC auto iris, P iris, Manual, I-CS
Mount Type C mount, CS mount
Optional Lens None
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range None
Pan Range None
Pan Speed None
Tilt Range None
Tilt Speed None
Rotate Range None
Sequence None
Preset Accuracy None
Operational
Camera Title Displayed up to 85 characters
Direction Indicator None
Day & Night Auto(ICR)
Backlight Compensation BLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNR, WiseNR Ⅱ(using AI engine)
Digital Image Stabilization Stabilization Support(built-in gyro sensor)
Defog None
Motion Detection 8ea, polygonal zones
Privacy Masking 6ea, rectangle zones - Color: Gray/Green/Red/Blue/Black/White
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec) Auto prefer shutter control based on AI engine
Digital PTZ None
Video Rotation Flip, Mirror, Hallway view(90˚/270˚)
Analytics Classified object type : Person/Face/Vehicle/License plate Attributes : Person(Gender, Color and Bag), Face(Age, Gender, Mask and Glasses), Vehicle(Type:car/bus/truck/motorcycle/bicycle and Color) Support Bestshot per object Analytics events based on AI engine - Object detection, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit), Face mask detection, Digital auto tracking, Social distancing detection Analytics events - Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear) *Some of the video analytics only works with people and vehicle detection
Business Intelligence People counting, Queue management, Heatmap based on AI engine
Serial Interface RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
Alarm I/O 2 configurable I/O ports, DC 12V output(Max. 50mA)
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover Audio playback
Audio In Selectable(mic in/line in/Built in mic) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
IR Viewable Length None
IR Illuminator (Optional) None
Water Removal None
Auto Tracking None
Coaxial Protocol None
Color Palettes None
Radiometry
Temperature detect range None
Temperature accuracy None
Temperature detection None
Additional None
Network
Ethernet Metal shielded RJ-45(10/100/1000 BASE-T)
Video Compression H.265/H.264: Main/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(using AI engine)
Video Quality Adjustment H.264/H.265: Target bitrate level control MJPEG: Target bitrate level control
Bitrate Control H.264/H.265: CBR or VBR MJPEG: VBR
Streaming Unicast(6 users) / Multicast Multiple streaming(Up to 5 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
Security HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device Certificate(Hanwha Techwin Root CA) TPM with FIPS 140-2 level2 Secure boot, Verify firmware forgery
Application Programming Interface ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
General
Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Web Viewer None
Edge Storage Micro SD/SDHC/SDXC 2slots 512GB
Memory 4096MB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / Humidity -10°C ~ +55°C(+14°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
Certification None
Input Voltage PoE+(IEEE802.3at), 12VDC
Power Consumption PoE+: Max 17.5W, Typ 13.7W 12VDC: Max 14W, Typ 10.6W
Mechanical
Color / Material Body: Black / Aluminum
RAL Code None
Product dimensions / weight 81x67x165mm(3.19x2.64x6.48"), Weight : 0.88kg(1.94lb)
Compatible Conduit hole / Gangbox None
Hanging mount(Dome) None
Skin cover(Dome) None
Weather cap(Dome) None
Power module None
Backbox None
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) None
Observe (63PPM/ 19PPF) None
Recognize (125PPM/ 38PPF) None
Identify (250PPM/ 76PPF) None
