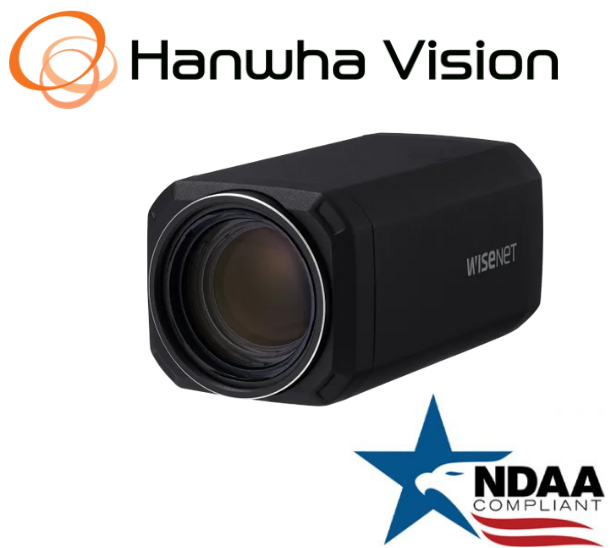

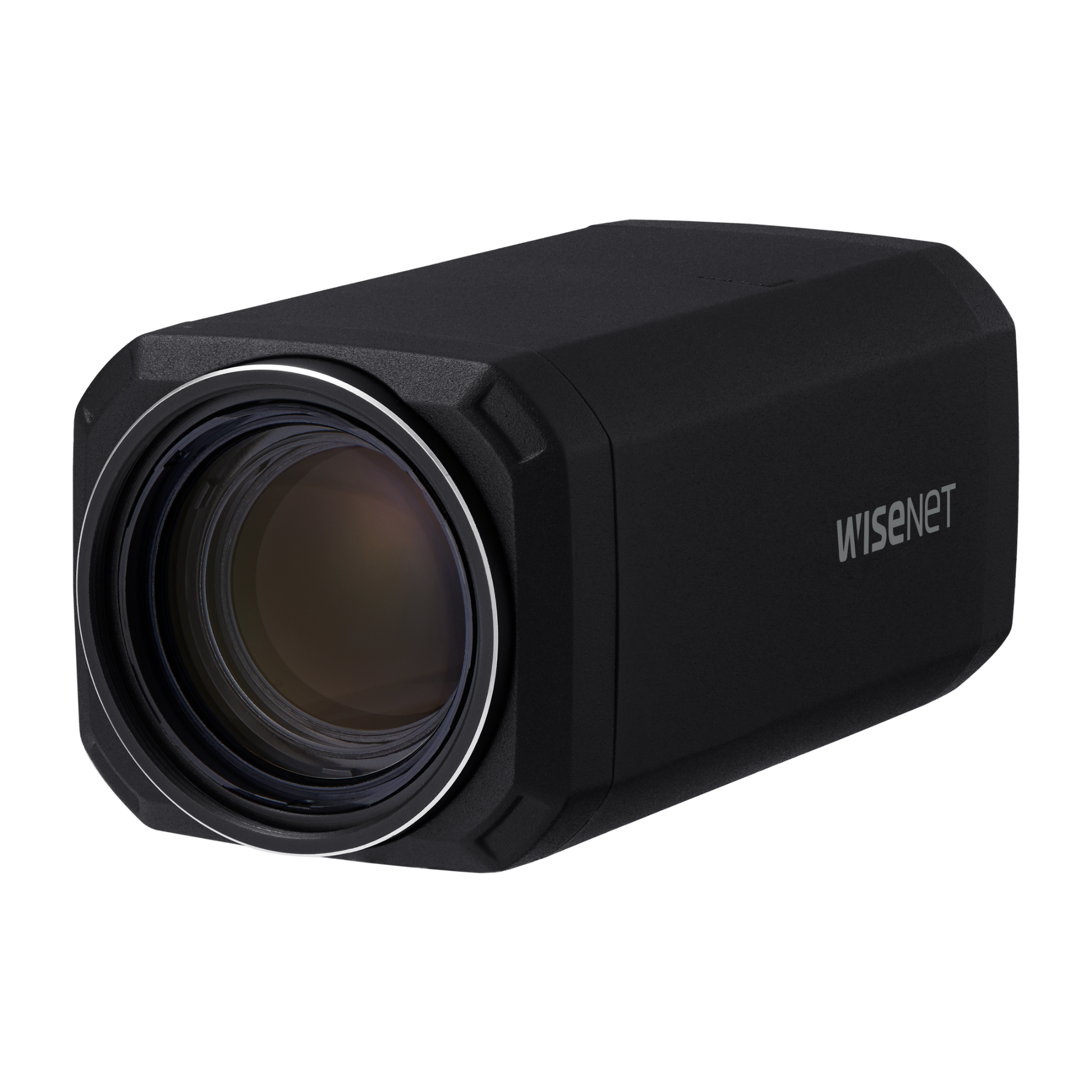

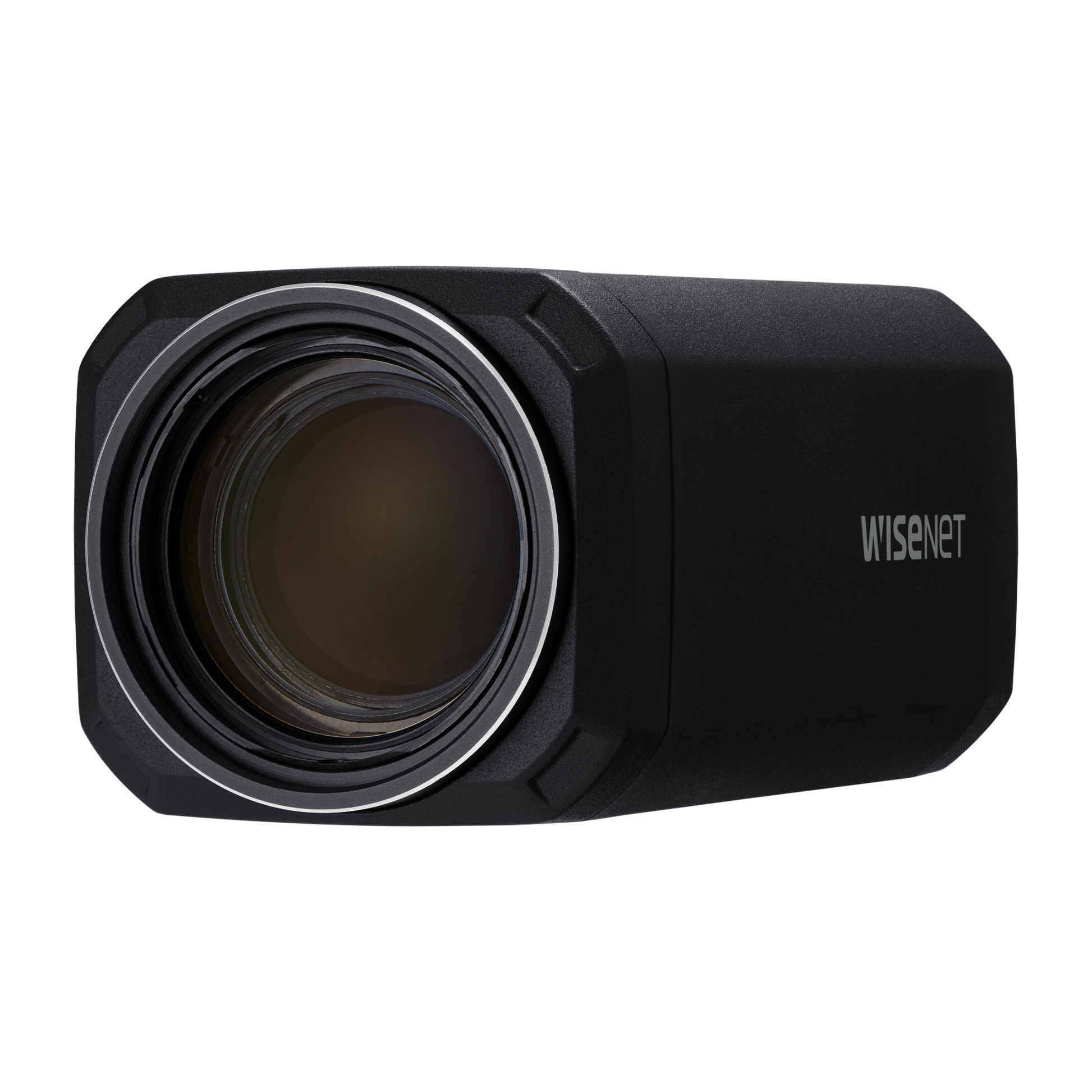

Hanwha Techwin HCZ-6321 2MP 32x AHD Zoom Box Security Camera 4.44~142.6mm Lens

HCZ-6321

2MP 32x AHD Zoom Camera

Product Specification

• Video
  Imaging Device		1/2.8" CMOS
  Resolution		1080p
  Max. Framerate		30fps/25fps(60Hz/50Hz)
  Min. Illumination		Color: 0.2 Lux (1/30sec, F1.6) B/W: 0.01 Lux (1/30sec, F1.6)
  Video Out		AHD: 1080p, BNC CVBS: SD, DIP connector type
  Video Transmission Distance		500m(5C2V Coaxial Cable)
  Lens
  Focal Length (Zoom Ratio)		4.44~142.6mm(32x) zoom
  Max. Aperture Ratio		F1.6(Wide)~F4.4(Tele)
  Angular Field of View		H: 62.8°(Wide)~2.23°(Tele) / V: 36.80°(Wide)~1.26°(Tele)
  Min. Object Distance		1.5m(4.92ft)
  Focus Control		Auto, Manual, Oneshot AF
  Lens Type		DC auto iris
  Operational
  Camera Title		Displayed up to 15 characters
  Day & Night		Auto(ICR)
  Backlight Compensation		BLC, HLC, WDR, SSDR
  Wide Dynamic Range		120dB
  Digital Noise Reduction		SSNRⅢ
  Digital Image Stabilization		Support
  Defog		Support
  Motion Detection		4ea, rectangular zones
  Privacy Masking		12ea, rectangular zones
  Gain Control		Low / Middle / High
  White Balance		ATW / AWC / Manual / Indoor / Outdoor
  Electronic Shutter Speed		Minimum / Maximum / Anti flicker (2 ~ 1/33,000sec)
  Digital PTZ		Support
  Video Rotation		H-REV/V-REV
  Analytics		Motion detection
  Serial Interface		RS-485: Samsung-T/E, Pelco-D/P, Panasonic, Bosch, AD, Vicon, Honeywell
  Alarm I/O		Output 1ea
  Coaxial Protocol		ACP(AHD Coax Protocol)
  Environmental & Electrical
  Operating Temperature / Humidity		-10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
  Storage Temperature / Humidity		-10°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
  Input Voltage		12V DC
  Power Consumption		Max 6W
  Mechanical
  Color / Material		Black / Metal
  Product Dimensions / Weight		72(W)x63.9(H)x137.25(D)mm(2.83x2.52x5.40"), 451g(0.99 lb)
  DORI (EN62676-4 standard)
  Detect (25PPM/ 8PPF)		Wide: 62.9m(206.4ft) / Tele: 1973m(6473.05ft)
  Observe (63PPM/ 19PPF)		Wide: 25.2m(82.56ft) / Tele: 789.2m(2589.22ft)
  Recognize (125PPM/ 38PPF)		Wide: 12.6m(41.28ft) / Tele: 394.6m(1294.61ft)
  Identify (250PPM/ 76PPF)		Wide: 6.3m(20.64ft) / Tele: 197.3m(647.31ft)

• • Design and specifications are subject to change without notice.
  • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
