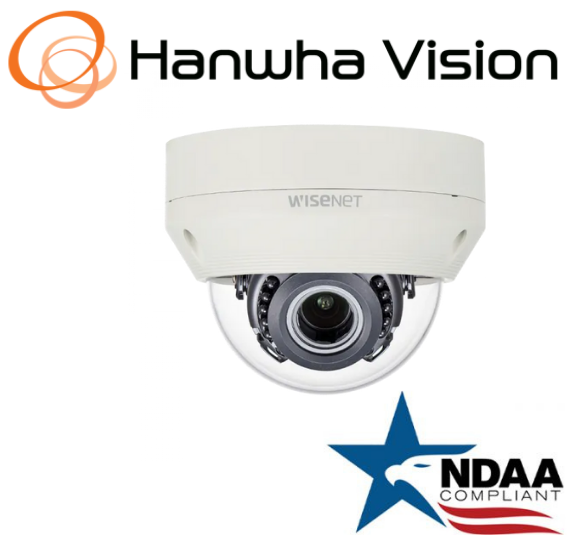

Hanwha Techwin HCV-7070RA QHD 4MP Analog HD IR Dome Security Camera 3.2~10mmLens
Hanwha Techwin HCV-7070RA QHD 4MP Analog HD IR Dome Security Camera 3.2~10mmLens
SKU:HCV-7070RA
Regular price
$300.00 USD
Regular price
Sale price
$300.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

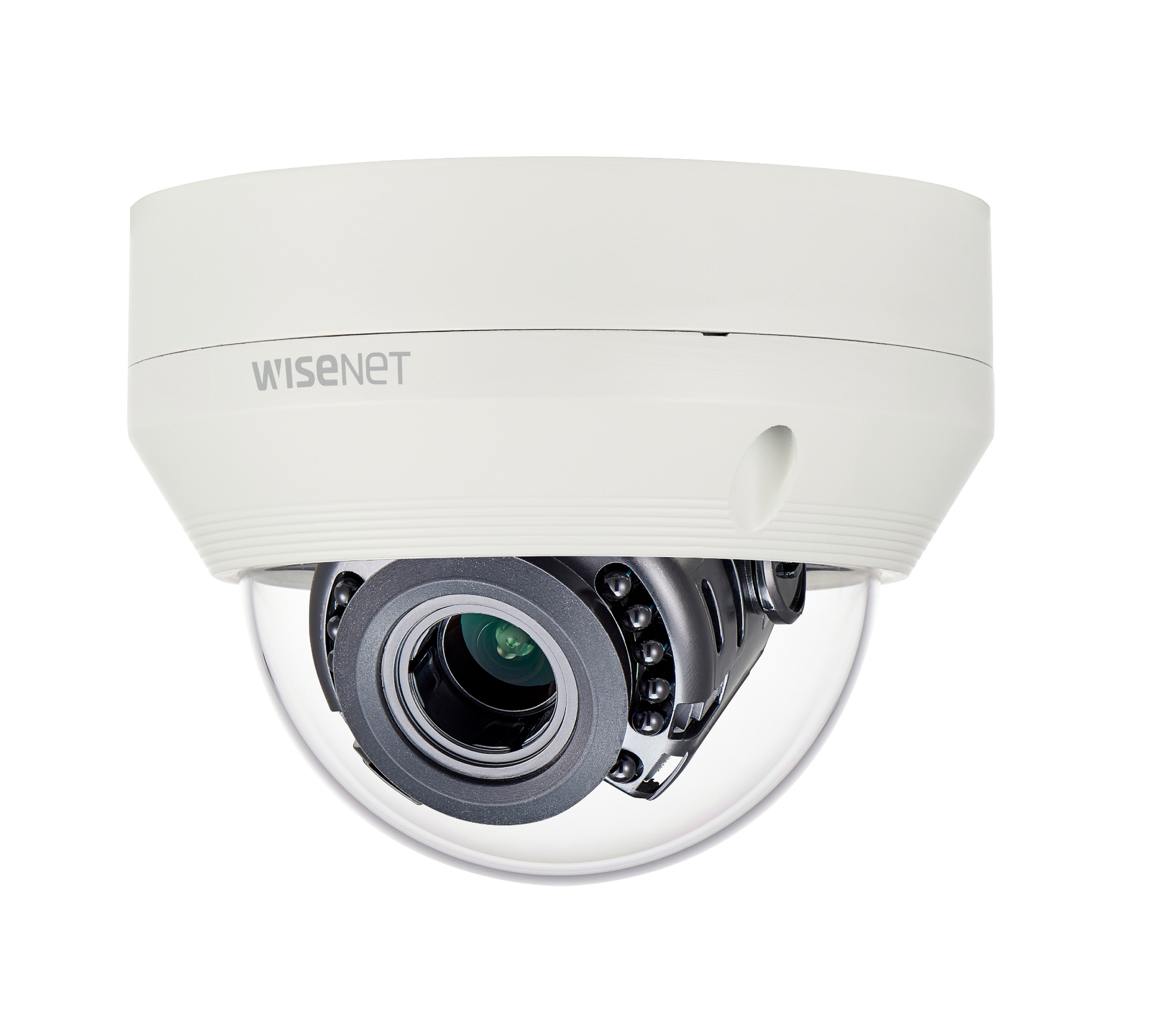

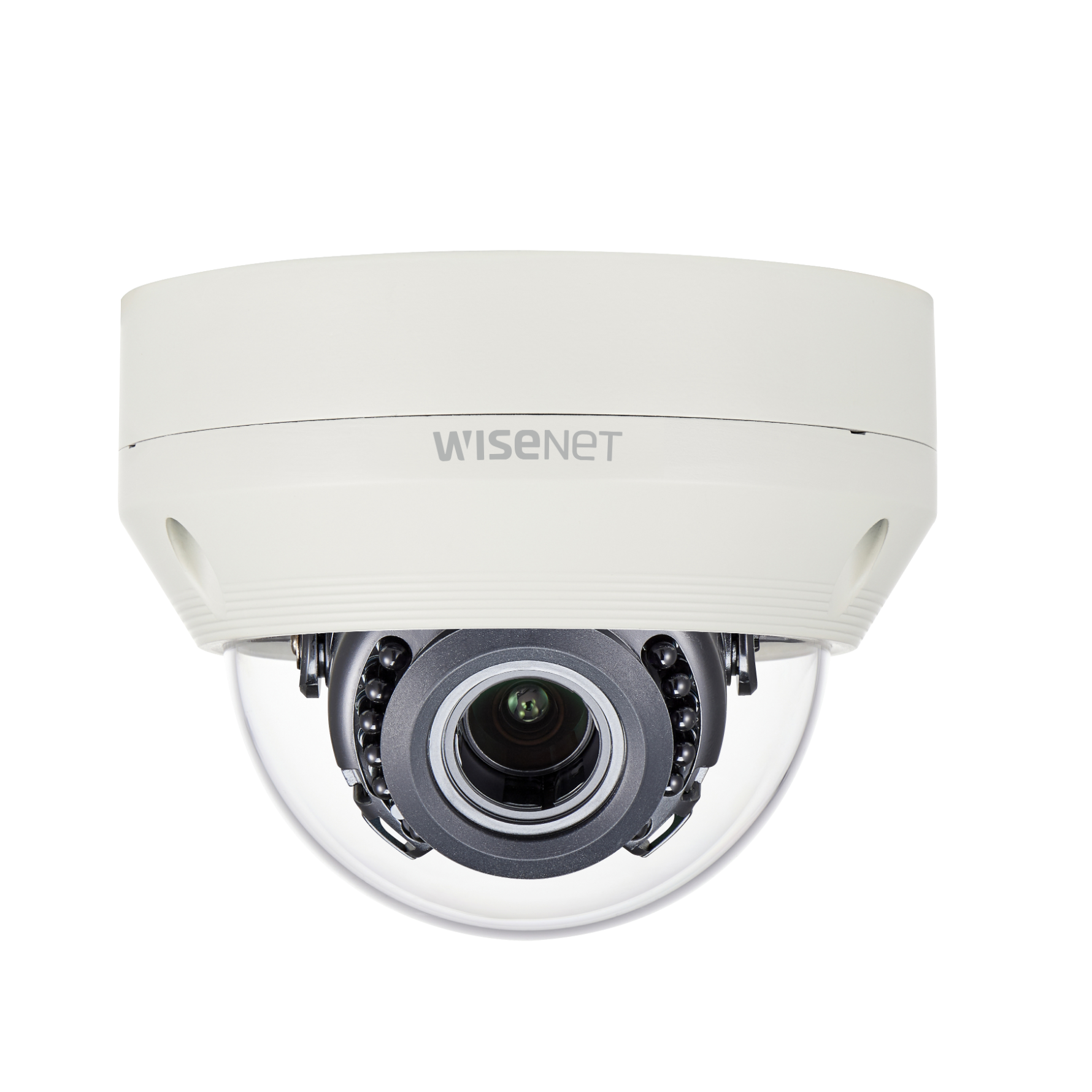

Hanwha Techwin HCV-7070RA QHD 4MP Analog HD+ IP IR Dome Security Camera
HCV-7070RA
Pentabrid compatible
QHD (4MP) Analog Vandal-Resistant IR Dome Camera
• QHD (2560 x 1440, 30fps) resolution
• 0.16 Lux@F1.6 (Color), 0 Lux (B/W : IR LED on)
• 3.2 ~ 10mm (3.1x) varifocal lens
• Day & Night (ICR), DWDR, Motion detection
• Transmission distance Max. 500m
• Easy installation (Plug & play), Dual power
• IP66, IK10 support
• 0.16 Lux@F1.6 (Color), 0 Lux (B/W : IR LED on)
• 3.2 ~ 10mm (3.1x) varifocal lens
• Day & Night (ICR), DWDR, Motion detection
• Transmission distance Max. 500m
• Easy installation (Plug & play), Dual power
• IP66, IK10 support
Product Specification
Video
Imaging Device
1/3" 4MP CMOS
Resolution
2560x1440
Max. Framerate
30fps@4M(N), 25fps@4M(P)
Min. Illumination
Color: 0.16Lux(F1.6, 1/30sec)
BW: 0Lux(IR LED on)
Video Out
BNC(AHD), additional CVBS for installation(2Pin connector type)
Video Transmission Distance
500m(5C2V Coaxial Cable)
Lens
Focal Length (Zoom Ratio)
3.2~10mm(3.1x) manual varifocal
Max. Aperture Ratio
F1.6
Angular Field of View
H: 93.48°(Wide)~29.44°(Tele), V: 50.47°(Wide)~16.64°(Tele), D: 112.53°(Wide)~33.7°(Tele)
Min. Object Distance
0.5m(1.64ft)
Focus Control
Manual
Lens Type
DC auto iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range
0°~350° / 0°~63° / 0°~355°
Operational
Day & Night
Auto(ICR)
Backlight Compensation
UserBLC, HLC, DWDR
Digital Noise Reduction
2DDNR
Motion Detection
4 zones
Privacy Masking
2 zones
Gain Control
Low / Middle / High / Very High
White Balance
ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed
1/30 ~ 1/12,000sec(N), 1/25~ 1/12,000sec(P)
Video Rotation
H-Rev/V-Rev
Analytics
Motion detection
Alarm I/O
MD Output 1ea
IR Viewable Length
30m(98.43ft)
Coaxial Protocol
ACP(AHD Coax Protocol), CVBS: Pelco-C(Coaxitron)
Environmental & Electrical
Operating Temperature / Humidity
-10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Certification
IP66, IK10
Input Voltage
24VAC, 12VDC
Power Consumption
Max 5.8W
Mechanical
Color / Material
Ivory / Aluminum
Product Dimensions / Weight
Ø137.0x106.1mm(Ø5.39”x4.18”), 715g(1.58 lb)
- • Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
Video Imaging Device 1/3" 4MP CMOS Resolution 2560x1440 Max. Framerate 30fps@4M(N), 25fps@4M(P) Min. Illumination Color: 0.16Lux(F1.6, 1/30sec)
BW: 0Lux(IR LED on)Video Out BNC(AHD), additional CVBS for installation(2Pin connector type) Video Transmission Distance 500m(5C2V Coaxial Cable) Lens Focal Length (Zoom Ratio) 3.2~10mm(3.1x) manual varifocal Max. Aperture Ratio F1.6 Angular Field of View H: 93.48°(Wide)~29.44°(Tele), V: 50.47°(Wide)~16.64°(Tele), D: 112.53°(Wide)~33.7°(Tele) Min. Object Distance 0.5m(1.64ft) Focus Control Manual Lens Type DC auto iris Pan / Tilt / Rotate Pan / Tilt / Rotate Range 0°~350° / 0°~63° / 0°~355° Operational Day & Night Auto(ICR) Backlight Compensation UserBLC, HLC, DWDR Digital Noise Reduction 2DDNR Motion Detection 4 zones Privacy Masking 2 zones Gain Control Low / Middle / High / Very High White Balance ATW / AWC / Manual / Indoor / Outdoor Electronic Shutter Speed 1/30 ~ 1/12,000sec(N), 1/25~ 1/12,000sec(P) Video Rotation H-Rev/V-Rev Analytics Motion detection Alarm I/O MD Output 1ea IR Viewable Length 30m(98.43ft) Coaxial Protocol ACP(AHD Coax Protocol), CVBS: Pelco-C(Coaxitron) Environmental & Electrical Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH Certification IP66, IK10 Input Voltage 24VAC, 12VDC Power Consumption Max 5.8W Mechanical Color / Material Ivory / Aluminum Product Dimensions / Weight Ø137.0x106.1mm(Ø5.39”x4.18”), 715g(1.58 lb) - • Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
