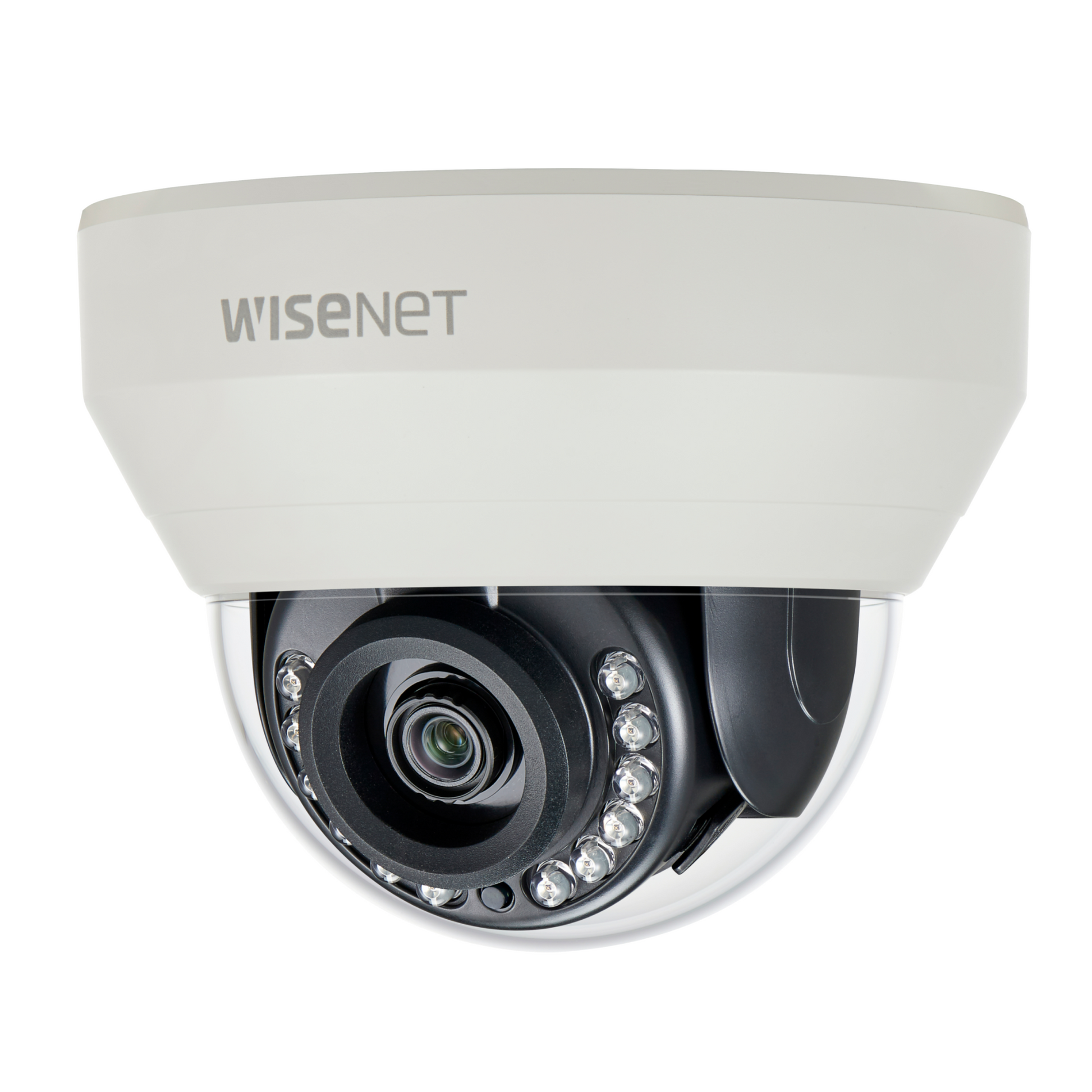

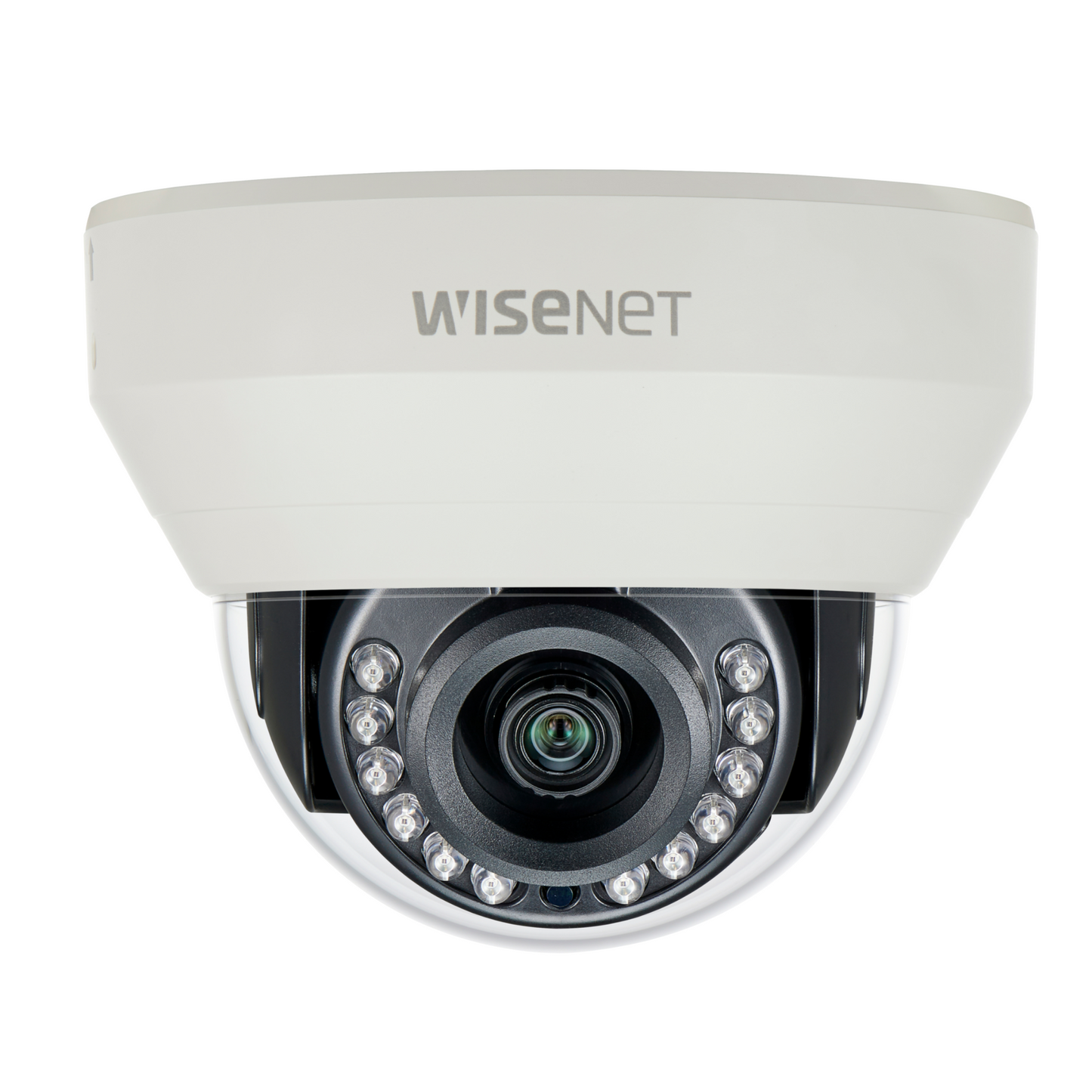

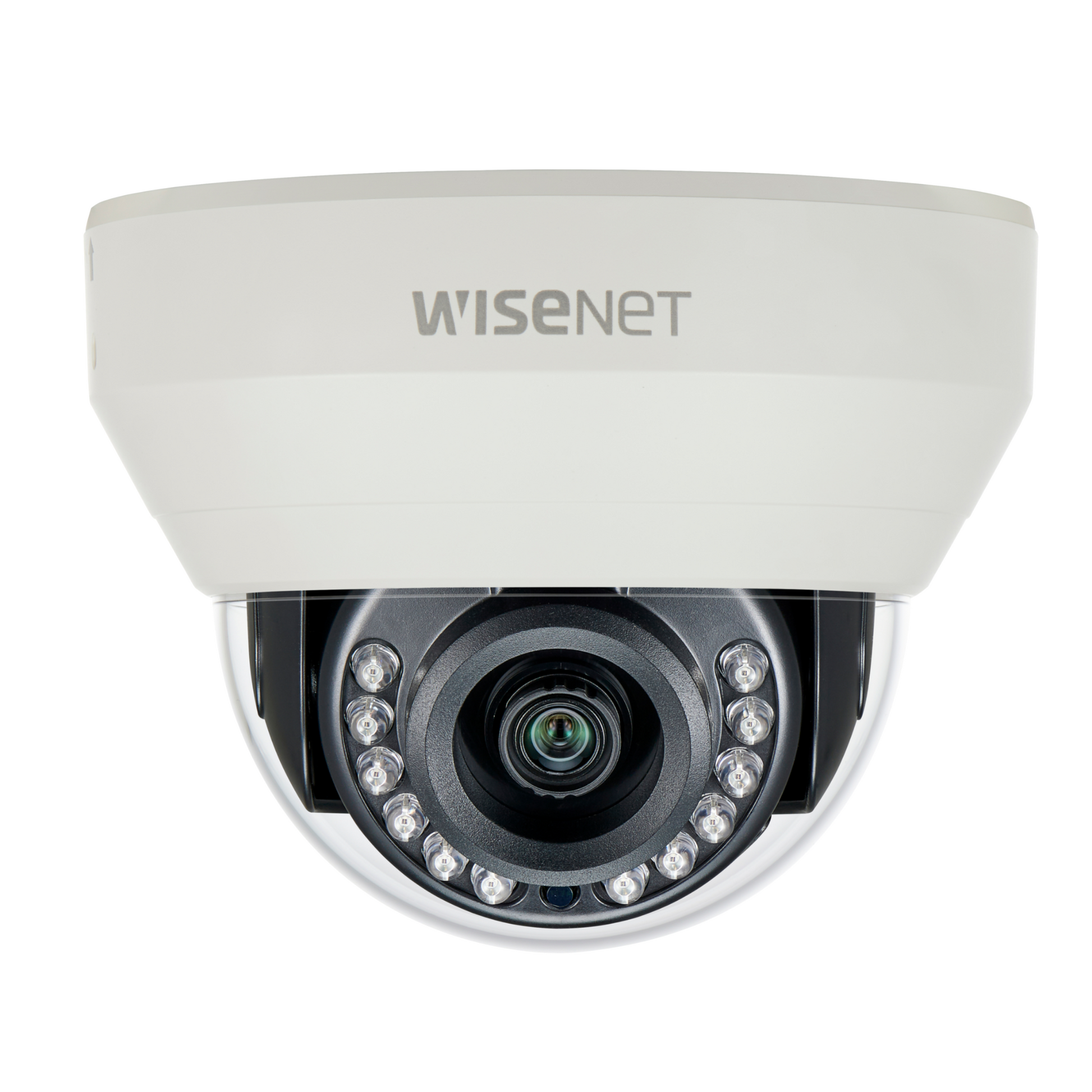

Hanwha Techwin HCD-7010RA QHD 4MP Analog IR Dome Security Camera
HCD-7010RA
Pentabrid compatible
QHD (4MP) Analog IR Dome Camera
• 0.26 Lux@F1.8 (Color),0 Lux (B/W : IR LED on) • Built-in 2.8mm fixed lens • Day & Night (ICR), DWDR, Motion detection • IR Viewable Length 20m • Transmission distance max.500m • Easy installation (Plug & play)
Product Specification
Video
Imaging Device
1/3" 4MP CMOS
Resolution
2560x1440
Max. Framerate
30fps@4M(N), 25fps@4M(P)
Min. Illumination
Color: 0.26Lux(F1.8, 1/30sec) BW: 0Lux(IR LED on)
Video Out
BNC(AHD), additional CVBS for installation(2Pin connector type)
Video Transmission Distance
500m(5C2V Coaxial Cable)
Lens
Focal Length (Zoom Ratio)
2.8mm fixed
Max. Aperture Ratio
F1.8
Angular Field of View
H: 107.48°, V: 59.67°, D: 122.01°
Min. Object Distance
0.5m(1.64ft)
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range
0°~350° / 0°~67° / 0°~355°
Operational
Day & Night
Auto(ICR)
Backlight Compensation
UserBLC, HLC, DWDR
Digital Noise Reduction
2DDNR
Motion Detection
4 zones
Privacy Masking
2 zones
Gain Control
Low / Middle / High / Very High
White Balance
ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed
1/30 ~ 1/12,000sec(N), 1/25~ 1/12,000sec(P)
Video Rotation
H-Rev/V-Rev
Analytics
Motion detection
IR Viewable Length
20m(65.62ft)
Coaxial Protocol
ACP(AHD Coax Protocol), CVBS: Pelco-C(Coaxitron)
Environmental & Electrical
Operating Temperature / Humidity
-10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Input Voltage
12VDC
Power Consumption
Max 5W
Mechanical
Color / Material
Ivory / Plastic
Product Dimensions / Weight
Ø110.1 x 86.1mm(Ø4.33”x3.39”), 240g(0.53 lb)
• Design and specifications are subject to change without notice. • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
