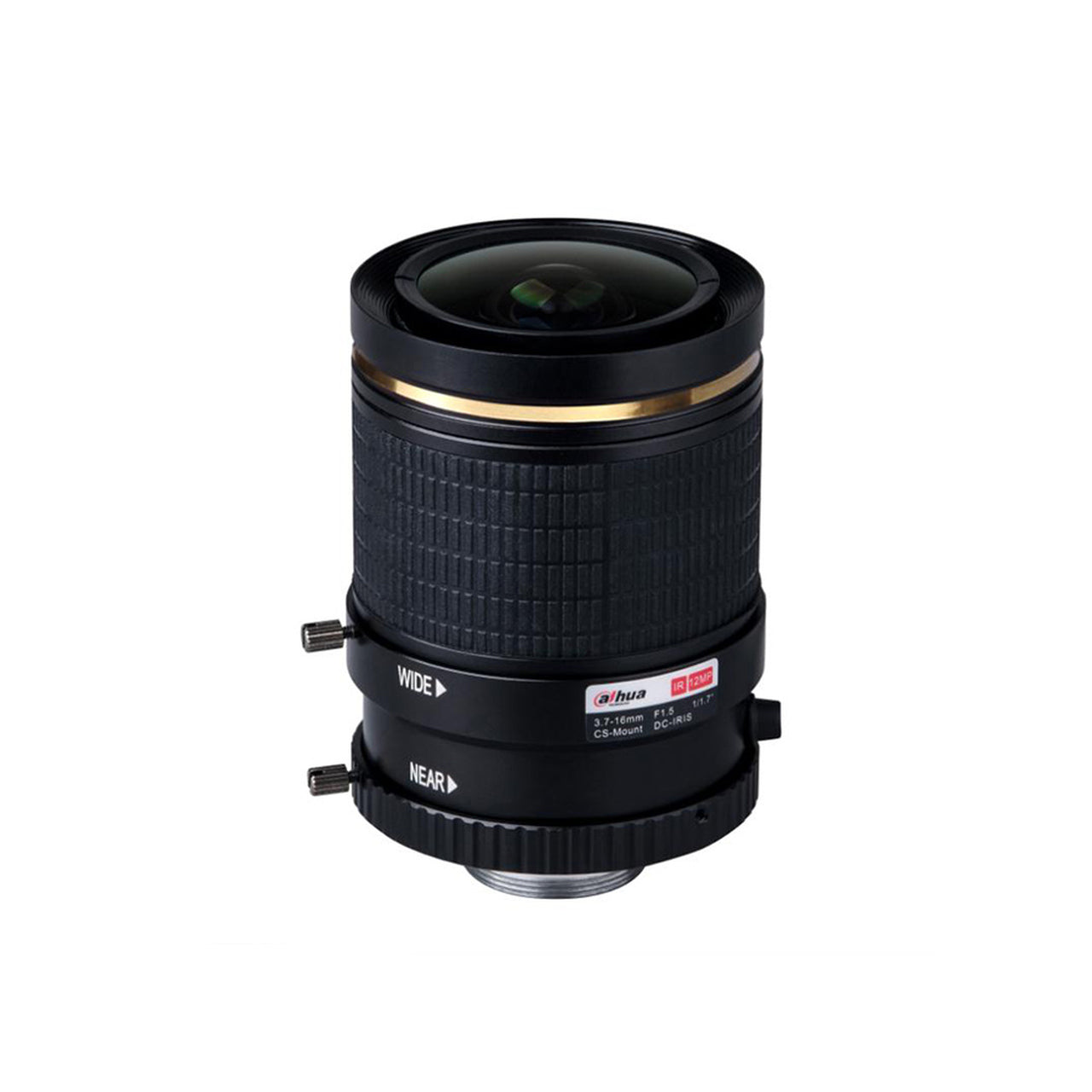

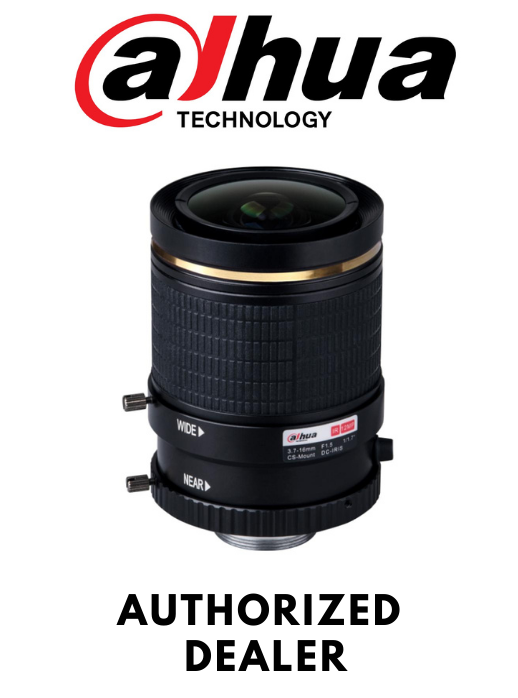

The DH-PLZ20C0-D CS-Mount 3.7-16mm Varifocal Lens from Dahua Technology is compatible with 12MP cameras that have a 1/1.7" sensor. This varifocal lens is IR corrected and has a 3.7-16mm focal length that delivers a 145-35.6° diagonal field of view. It features manual zoom and focus operation.
DC auto iris
1.64' minimum object distance
Designed for extreme temperature environments ranging from -22 to 158°F
<90% relative humidity
Electromagnetic Compatibility (EMC) Certifications
- FCC 47 CFR Part 15 Subpart B
- ANSI C63.4
- EN 55032, EN 55024, EN50130-4
Key Features
- Compatible with 1/1.7" Sensors
- Compatible with 12MP Cameras
- CS Mount
- 3.7-16mm Varifocal Lens
The DH-PLZ20C0-D CS-Mount 3.7-16mm Varifocal Lens from Dahua Technology is compatible with 12MP cameras that have a 1/1.7" sensor. This varifocal lens is IR corrected and has a 3.7-16mm focal length that delivers a 145-35.6° diagonal field of view. It features manual zoom and focus operation.
Dahua Technology DH-PLZ20C0-D Specs
| Lens Mount | CS |
| Sensor Compatibility | 1/1.7" (12 MP) |
| Focal Length | 3.7 to 16mm |
| Aperture | f/1.5 |
| Angle of View | 1/1.7" Sensor Diagonal: 145 to 35.6° Horizontal: 109 to 28.5° Diagonal: 79 to 21.4° |
| Minimum Object Distance | 1.64' / 0.5 m |
| Focus Type | Manual Focus |
| Iris Type | DC Auto |
| IR Corrected | Yes |
| Operating Temperature | -22 to 158°F / -30 to 70°C |
| Dimensions (ø x L) | 2.13 x 3.26" / 54 x 82.85 mm |
| Weight | 0.6 lb / 0.27 kg |
Packaging Info
| Package Weight | 1 lb |
| Box Dimensions (LxWxH) | 5 x 3.5 x 3" |
