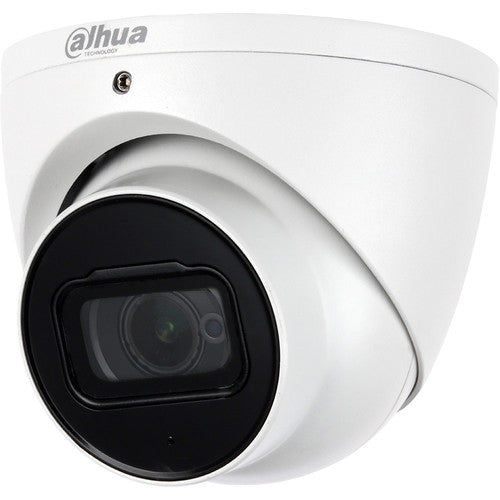

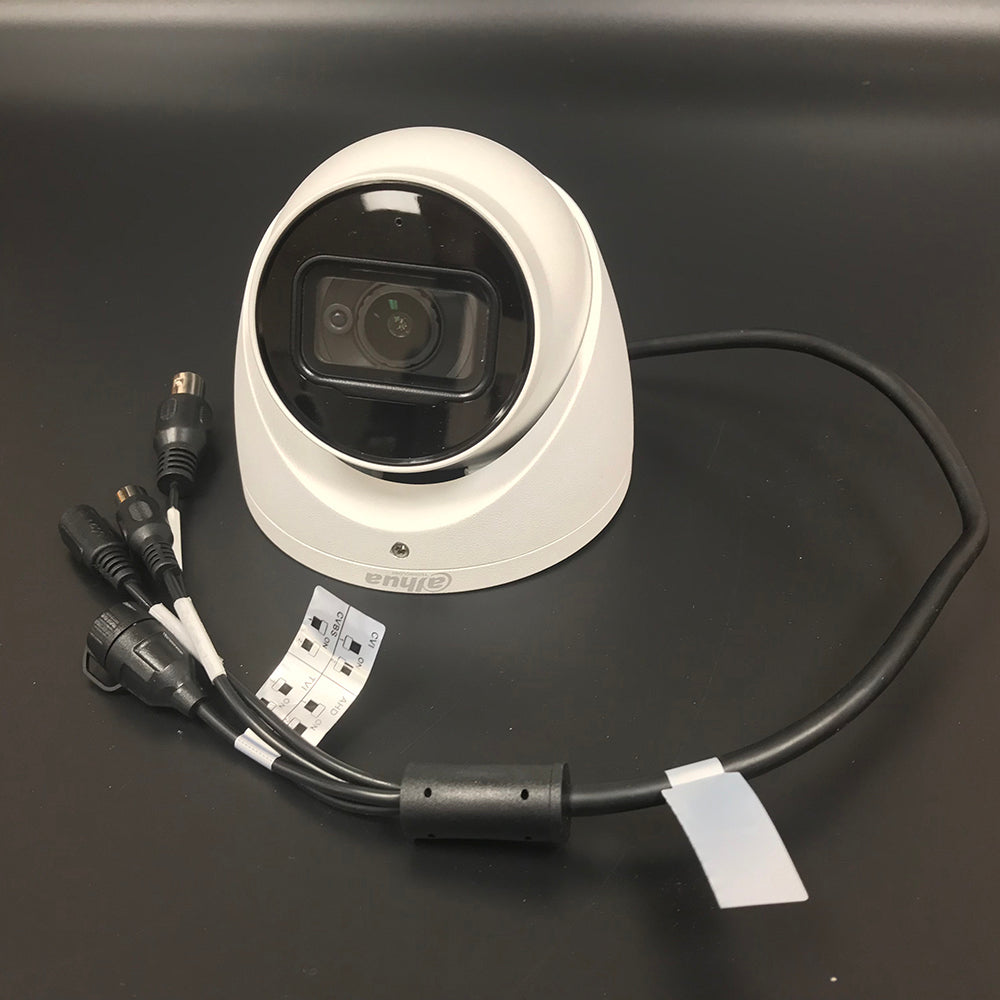

Dahua HDCVI 8MP IR IP67 HDCVI Audio Eyeball Security Camera 2.8 mm Fixed Lens
Dahua HDCVI 8MP IR IP67 HDCVI Audio Eyeball Security Camera 2.8 mm Fixed Lens
SKU:A82AG52
Couldn't load pickup availability
Dahua Technology HDCVI 8MP IR IP67 Eyeball Multi-format Security Camera 2.8 mm Fixed Lens with Night Vision, Built-in Microphone
Experience the superior clarity of Dahua’s Ultra 4K HDCVI cameras for vast coverage and superior image details. Dahua Ultra 4K HDCVI series leverages existing coax infrastructures to deliver forensic-level images seamlessly and over long distances. The 4K HDCVI camera uses next-generation ISP chip technology developed by Dahua to deliver stunning video. This home-grown ISP features the latest image processing algorithms and is optimized for surveillance camera operations. With total control of the ISP features and production, Dahua can offer the latest security systems at a cost-effective price.
For challenging low-light applications, Dahua’s Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing details in low light down to 0.005 lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.
- 1/1.8-in. 8MP Progressive-scan CMOS Imager
- 4K (3840 x 2160) at 15 fps Maximum Resolution
- 2.8 mm Fixed Lens
- Starlight Technology for Ultra Low-light Applications
- True Wide Dynamic Range (120 dB) and 2D/3D Noise Reduction
- HD or SD Output, Switchable
- Built-in Microphone
- Maximum IR Length 50 m (164 ft), Smart IR
- IP67 Ingress Protection
- Five-year Warranty (for products sold through an authorized Dahua Dealer)
Dahua Technology A82AG52 Specs
| Image Sensor | 1/2" Progressive Scan CMOS Sensor |
| Effective Pixels (H x V) | 3840 x 2160 |
| Electronic Shutter Speed | 1/100,000 to 1/3 Seconds |
| Minimum Illumination | Color: 0.005 lux at f/1.6, 30 IRE B&W: 0 lux with IR |
| S/N Ratio | >65 dB |
| IR Range | 164' / 50 m |
| IR Control | On/Off Control (Auto, Manual) |
| Number of IR LEDs | 2 |
| Lens Type | Fixed Lens, Fixed iris |
| Mount Type | Board-In |
| Focal Length | 2.8mm |
| Maximum Aperture | f/1.6 |
| Field of View | Horizontal: 87° |
| Focus Control | Auto, Manual |
| Close Focus Distance | 70.87" / 1800 mm |
| Angle Adjustment | Horizontal: 0 to 360° Vertical: 0 to 70° Rotation: 0 to 360° |
| Maximum Resolution | 3840 x 2160 |
| Frame Rate | HD-CVI: 8 MP at 15 fps, 6 MP at 20 fps, 4 MP at 30 fps HD-TVI: 5 MP at 20 fps, 4 MP at 30 fps AHD: 5 MP at 20 fps, 4 MP at 30 fps CVBS: 960H |
| Video Output | 1 x HD-CVI (BNC, 4K UHD) 1 x CVBS (BNC, Switchable) |
| Video Transmission Distance | RG-59/U: 720p: 2624.67' / 800 m 1080p: 1640.42' / 500 m 4K UHD: 1640.42' / 500 m RG-6/U: 720p: 3937.01' / 1200 m 1080p: 2624.67' / 800 m 4K UHD: 2296.59' / 700 m Cat 6 UTP (Balun Required, Available Separately): 720p: 1476.38' / 450 m 1080p: 984.25' / 300 m 4K UHD: 984.25' / 300 m |
| Day/Night | Auto IR Cut Filter/Manual |
| OSD Menu | Multi-Language |
| Backlight Compensation | BLC, HLC, True WDR |
| WDR | 120 dB |
| Automatic Gain Control | Supported |
| Noise Reduction | 2D-DNR, 3D-DNR |
| White Balance | Auto, Manual |
| Smart IR | Auto, Manual |
| Audio | Built-In Microphone 1 x Audio Input (RCA) |
| Power Supply | 12 VDC, ±30% |
| Power Consumption | Maximum 8 W at 12 VDC (IR On) |
| Operating Conditions | -22 to 140° / -30 to 360°C Less than 90% RH |
| Storage Conditions | -22 to 140° / -30 to 360°C Less than 90% RH |
| IP Rating | IP67 |
| Casing | Aluminum |
| Certifications | CE: EN55032, EN55024, EN50130-4 Safety: UL60950-1, CAN/CSA C22.2 No.60950-1 Electromagnetic Compatibility (EMC): FCC CFR 47 Part 15 subpart B, ANSI C63.4-2014 |
| Dimensions (Diam. x H) | 4.17 x 3.9" / 106 x 99.2 mm |
| Weight | 1.1 lb / 0.5 kg |
| Package Weight | 1.455 lb |
| Box Dimensions (LxWxH) | 6.25 x 6.2 x 5.45" |
