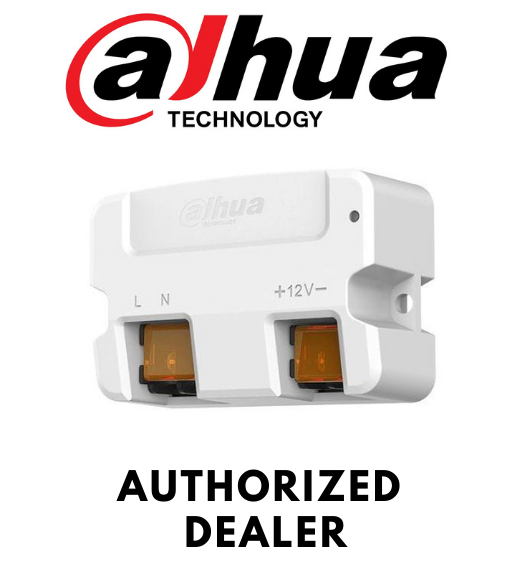

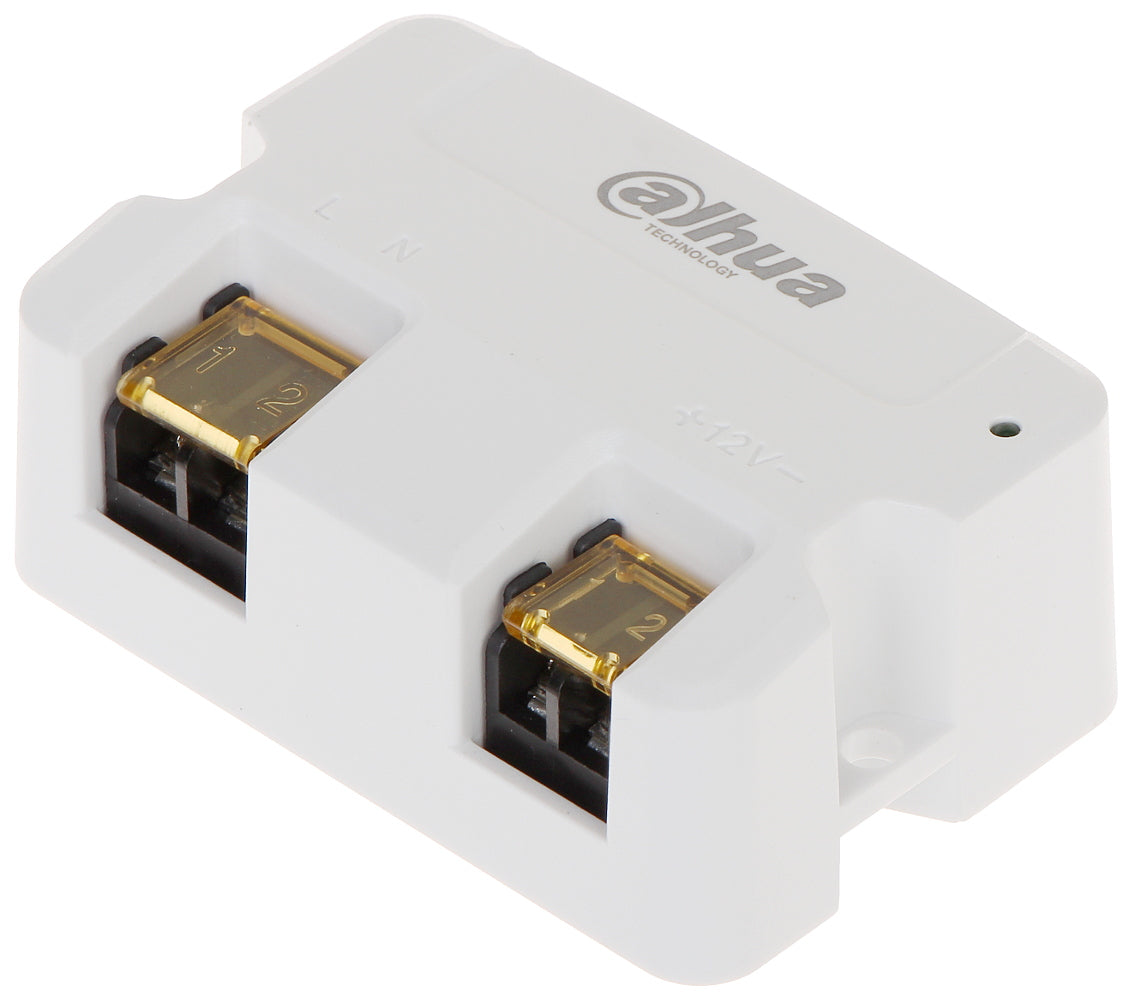

Model
|
DH-PFM320D-015
|
Electrical Specification
|
Rated input
|
AC100~240V, 50/60Hz, 0.6A
|
Output voltage
|
DC12V (+7%, -3%)
|
Output current
|
Max. 1.5A (+70℃)
|
Protection/Environmental
|
Protection
|
Surge protection, over temperature protection, over current, voltage load protection
|
ESD: EN61000-4-2
+/-6kV Contact; +/-8kV Air
|
Surge: EN61000-4-5
Combination Wave: Common Mode ±4KV(12 ohms)
Differential Mode ±2kV(2 ohms)
|
Working temperature
|
-30℃~+70℃(-22℉~+158℉)
|
Working humidity
|
5%~95% RH
|
Physical Properties
|
Weight
|
95g(0.21lb)
|
Dimension(LxWxH)
|
77.3mmx51.9mmx30.0mm(3.04”x2.04”x1.18“)
|
Installation
|
Plane installation, can be installed in junction boxes and wall mount brackets
|
Color
|
White
|
Input plug
|
2-pin plug(L/N)
|
Output plug
|
2-pin plug(+12V-)
|
Safety Standards
|
Certification
|
CE, FCC |
