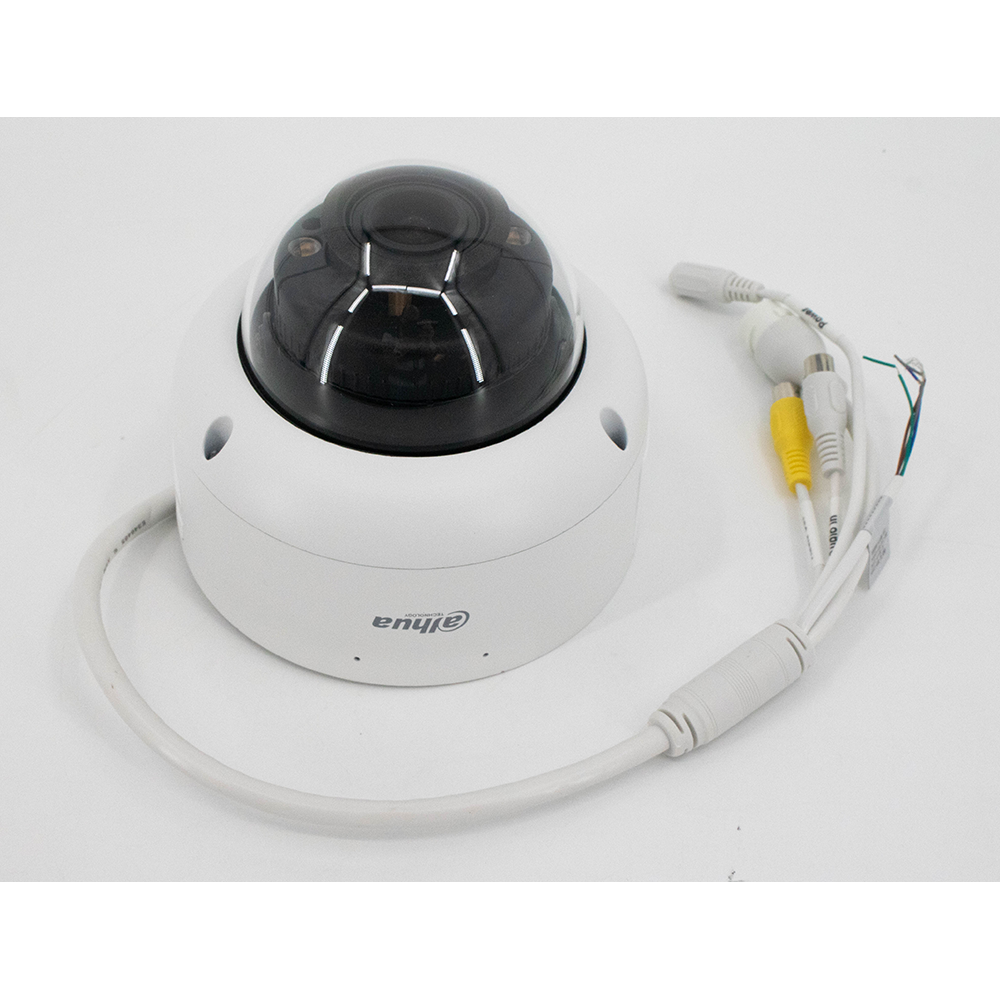

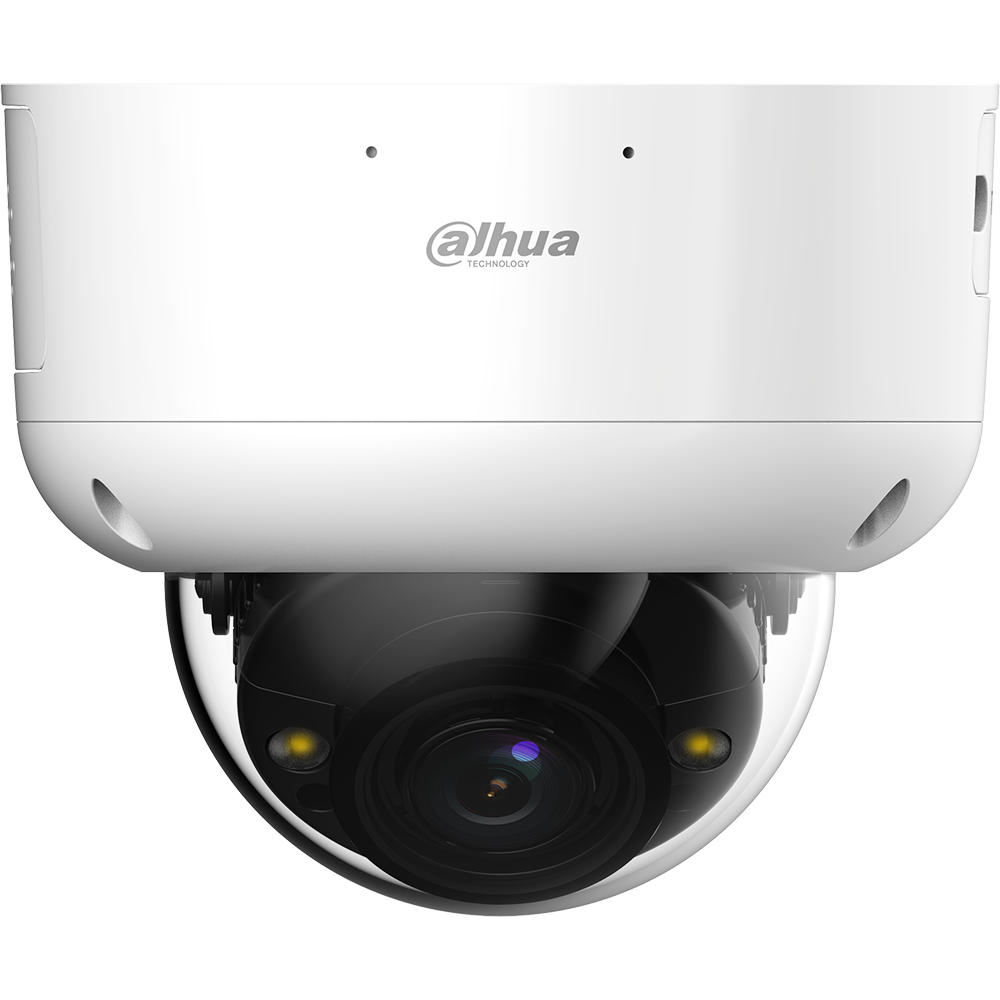

Dahua 4MP IP67,IK10 ePoE Night Color Network Dome Security Camera 2.7mm~12mm Motorized Lens with Built-in Microphone and Speaker

The Dahua 4 MP Night Color 2.0  ePoE camera offers Analytics+ functions at the edge – performing complex real-time perimeter protection surveillance, Smart Motion Detection, and face detection. The Dahua Analytics+ algorithms significantly improve accuracy and reliability as compared to standard intelligent features. The camera is ideal for a host of diverse applications — Night Color Technology and Ultra Wide Dynamic Range allow the camera to operate in any lighting condition and the IP67 rating makes the camera suitable for the harshest environments.

WizMind Series devices offer the full complement of Dahua Analytics+ functions for comprehensive, human-oriented analytic solutions. WizMind Series products deliver perimeter protection, vehicle and crowd density statistics, video metadata, and advanced people counting with heat map functionality. WizMind is ideal for complex applications with demanding requirements that need advanced analytic capabilities.

• 1/1.8-in. 4 MP Progressive-scan CMOS Sensor
• Triple-stream Encoding
• AI Coding, Smart H.265+ and Smart H.264+ Video Compression
• 4 MP (2688 x 1520) at 30 fps, 2.7 mm to 12 mm Motorized Lens
• Ultra Wide Dynamic Range (140 dB)
• Built-in Microphone and Speaker
• Analytics+ Functions — People Counting, Perimeter Protection, Smart Motion Detection+, and Face Detection
• Night Color Technology with White-light LEDS for Color Images in Total Darkness
• Enhanced Power and Data Transmission Distances (ePoE)
• IP67 Ingress Protection and IK10 Vandal Resistance
• 5-year Warranty (for products sold through an authorized Dahua dealer)

Model

Brand	Dahua
Model	N45EYNZ

Details

Network Camera	Yes
Type	Dome Camera
Outdoor	Yes

Network

Networking Protocol	HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, ICMP, IGMP, 802.1x
Ports	RJ-45 (10/100 Base-T) Audio Input One (1) Channel, RCA plus a built-in Microphone Output One (1) Channel, RCA plus a built-in Speaker Alarm Input One (1) Channel, 5mA 3V to 5V DC Output One (1) Channel, 300mA, 12V DC

Camera

Sensor	1/1.8-in. Progressive-scan CMOS
Pixels	4 MP
MAX Resolution	2688 x 1520
Video Capture Resolution	4 MP (2688 x 1520), 2560 x 1440, 2304 x 1296, 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240)
Frame Rate	Main Stream 4 MP (2688 x 1520) at 30 fps Sub Stream 1 D1 (704 x 480) at 30 fps Sub Stream 2 1080p (1920 x 1080) at 1 fps
Lens Type	Motorized Vari-focal
Shutter Control	Auto, Manual, 1/3 s to 1/100,000 s
Night Vision	Yes
Audio	G.711a, G.711Mu, G.726, G.723, PCM

Power

Power over Ethernet	Yes
Power	12 VDC +/-30%, PoE (IEEE 802.3af, Class 0), or ePoE

Dimension & Weight

Dimension	4.13" x 4.96"
Weight	1.59 lbs.
