Dahua 2MP IR IP67 AI HDCVI 4 Eyeball Cameras+ 6-Ch DVR Security System 2.8 mm
Dahua 2MP IR IP67 AI HDCVI 4 Eyeball Cameras+ 6-Ch DVR Security System 2.8 mm
SKU:C542E42B
Regular price
$403.99 USD
Regular price
Sale price
$403.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

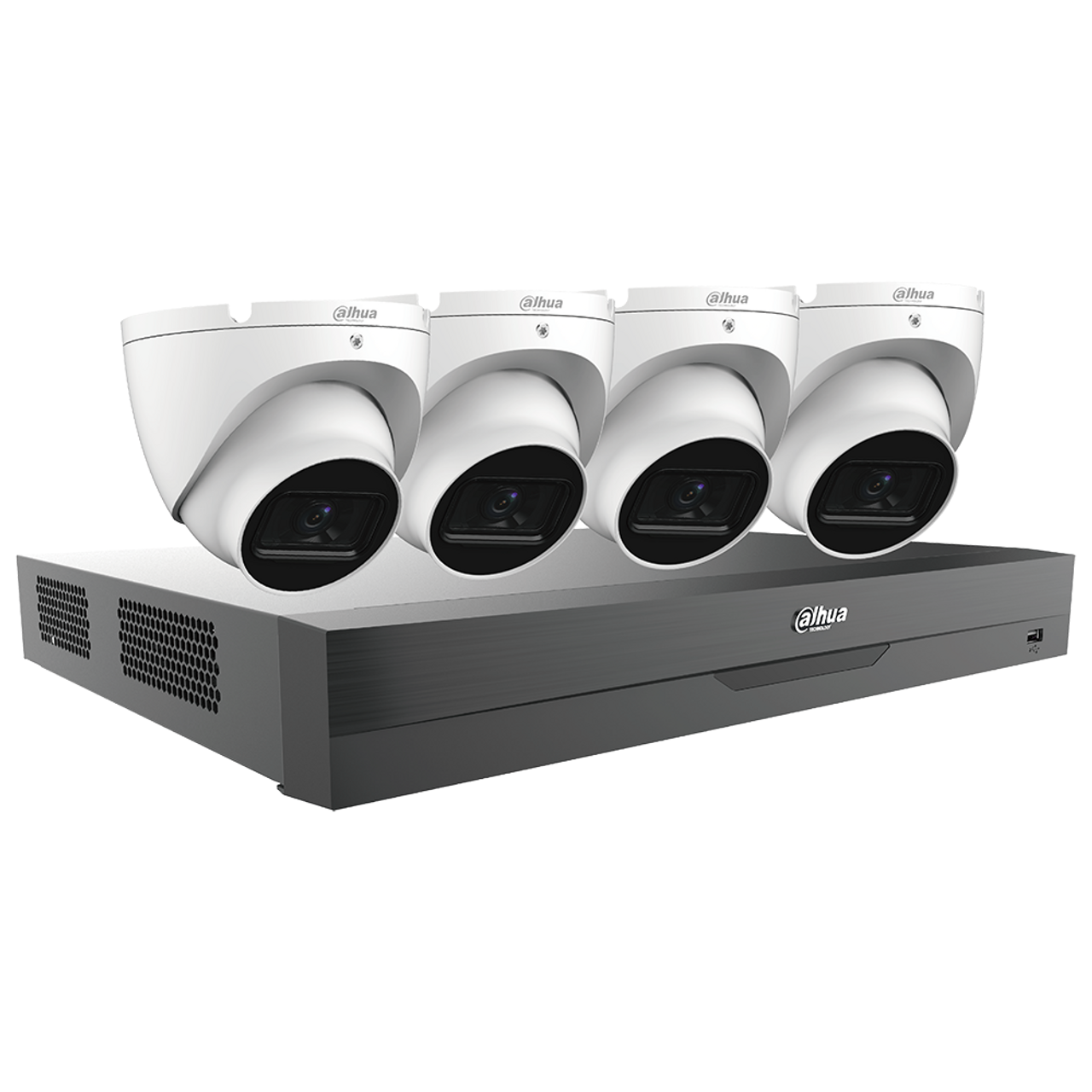

Dahua 2MP IR IP67 6-Ch Outdoor AI Coding 1080p Penta-brid HDCVI Security System (4 Eyeball Cameras+ DVR)2.8 mm Fixed Lens
The Dahua HDCVI Security System provides all the components to quickly install, configure, and employ a complete video surveillance solution. The HDCVI cameras offer the clarity of high definition video, and the HDCVI DVR offers built-in motion detection algorithms, alarm triggers, and customized recording modes. The cameras and the HDCVI DVR supports multiple video outputs making the kit compatible with many existing systems. The kit features Dehua's HDCVI technology that leverages an existing coaxial infrastructure, saving time and costs from running networking and power cables.
2MP HDCVI Cameras
- 2MP (1920 x 1080) at 30 fps Maximum Resolution
- 2.8 mm Fixed Lens
- Maximum IR Length 30 m (98 ft), Smart IR
- IP67 Environmental Protection
HDCVI DVR
- Embedded Processor
- Four (4) Channel Pentra-brid Recorder
- 4 +2 IP Camera Channels, each channel up to 6 MP
- 1080p at 15 fps Recording Resolution on All HDCVI Channels
- AI Coding Technology for High-quality Human/Vehicle Video
- Automatically Detects HDCVI, AHD, TVI, and CVBS Inputs
- Perimeter Protection and Smart Motion Detection (SMD)
- Maximum 32 Mbps Incoming Bandwidth
| Brand | Dahua |
|---|---|
| Model | C542E42B |
| Type | Surveillance System / Security Camera Kit |
| Camera Type | IP Camera |
|---|---|
| Camera inputs | 6 Channel |
| Video Input | 4 x BNC |
| Audio Input | Four (4) Channels, RCA |
| Recording Compression | AI Coding, Smart H.265+, H.265, Smart H.264+, H.264 |
| Video Output | 1 x VGA, 1 x HDMI |
|---|---|
| Audio Output | One (1) Channel, RCA |
| ONVIF | Yes |
| Max Resolution | 1080P |
| Built-In HDD | 2TB Included |
|---|---|
| Storage Capacity | One (1) SATA Port, Up to 6 TB capacity per HDD |
| Network Protocol | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P, IP Search (Supports Dahua IP cameras, DVRs, NVS) |
|---|
| Power Supply | Power Supply: 12 VDC, 1.5 A Power Consumption: < 4 W, without HDD |
|---|---|
| PoE (Power-over-Ethernet) | Yes |
| Bundled Camera Number | 4 |
|---|---|
| Bundled Camera Spec | A21BJ02 2MP HDCVI IR Eyeball Camera Image Sensor: 1/2.7-in. CMOS Effective Pixels: 1920 (H) x 1280 (V), 2MP Scanning System Progressive Electronic Shutter Speed: NTSC: 1/30 s–1/100,000 s Minimum Illumination Color: 0.02 Lux at F2.0 (30 IRE), 0 Lux with IR on S/N Ratio: More than 65 dB IR Distance: 30 m (98.4 ft) IR On/Off Control: Auto, Manual IR LEDs: One (1) IR Light Lens Type: Fixed Lens / Fixed Iris Mount Type: M12 Focal Length: 2.8 mm Maximum Aperture: F2.0 |
| Dimensions | NVR: 12.80" x 10.12" x 2.17" Camera: 3.70" x 3.70" x 3.37" |
|---|---|
| Weight | NVR: 2.70 lbs. Camera: 0.73 lb. |
