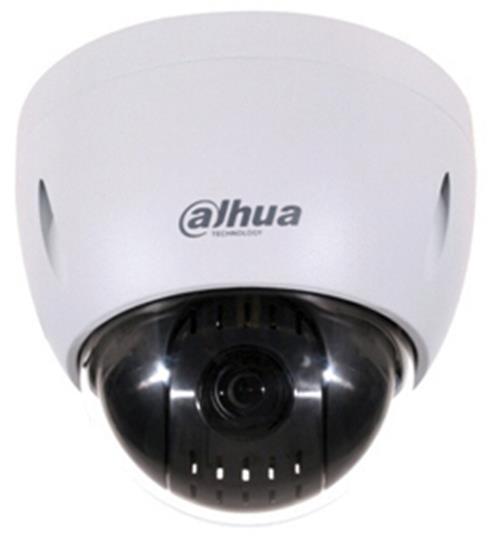

Dahua Technology  2MP IP66,IK10 PoE+ IP Outdoor PTZ Network Mini Dome Security Camera 5.3~64mm 12x Optical Zoom Lens

The 2MP network PTZ Dome camera features a 1/2.8-in. STARVIS™ CMOS Sensor with a 12x optical zoom lens, and provides an all in one solution for capturing close-range video surveillance for indoor and outdoor applications. This cost-effective PTZ camera offers Dahua’s Starlight Technology for best-in class light sensitivity and uses H.265 video compression to double the data compression ratio of older compression standards. The camera is embedded with an IR cut-filter making it suitable for applications with varying lighting conditions, True WDR for applications with direct sunlight or glare and on-board intelligent video system analytics for a more efficient surveillance system.

• 1/2.8-in. 2 MP STARVIS™ CMOS Sensor
• Starlight Technology for Ultra-low Light Sensitivity
• Powerful 12x Optical Zoom
• Triple-stream Encoding
• H.265 and H.264 Dual Codec
• 1080p at 30 fps Maximum Resolution
• Intelligent Video System (IVS) Analytics
• IP66 Ingress Protection and IK10 Vandal Resistance
• PoE+ Support
• Five-year Warranty (for products sold through authorized Dahua Dealers)

PTZ Functionality

• Endless panning
• -2 to 90° tilt range
• 180° auto flip
• 0.1 to 300°/s manual pan control speed
• 0.1 to 120°/s manual tilt control speed
• 300 presets
• 300°/s pan preset speed
• 200°/s tilt preset speed
• 5 pattern, 8 tour, auto pan, and auto scan PTZ modes
• Proportional pan/tilt speed to zoom ratio
• Auto restore to previous PTZ and lens status after power failure
• Idle motion includes activate preset, scan, tour, and pattern if there is no command in the specified area
• DH-SD protocol

DORI Distance

• 2897' / 883m (detect / 8 ppf)
• 1158' / 353m (observe / 19 ppf)
• 581' / 177m (recognize / 38 ppf)
• 289' / 88m (identify / 76 ppf)

Dahua Technology Pro Series Specs

Camera

Sensor	2 MP 1/2.8" CMOS
Focal Length	5.3 to 64mm
Maximum Aperture	f/1.6 - f/4.4
Zoom	Optical: 12x Digital: 16x
Lens Field of View	Horizontal: 58.2 to 4.8°
IR Cut Filter	Mechanical
Day/Night	Yes
Minimum Illumination	Color: 0.005 Lux B&W: 0.0005 Lux
Shutter Speed	1/30000 to 1 Seconds

Video

Streaming Resolution	1920 x 1080 at 30 fps
Supported Video Compression	H.264, H.265, MJPEG
Multi-View Streaming	Yes, 3 Streams
Automatic Gain Control	Yes

Audio

Streaming	Two-Way
Audio Formats	G.711, PCM
External Audio Input	3.5 mm
External Audio Output	3.5 mm

Networking

Security	HTTPS, IEEE 802.1X, IP Address Filtering
Supported Protocols	Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP

System Integration

Application Programming Interface (API)	ONVIF, PSIA, CGI
Analytics	Tampering, Memory Card Error, Network Error, Unauthorized Access, Motion, Tripwire, Intrusion, Scene Change, Abandoned/Missing Object, Facial Detection
Event Trigger	Yes
Event Action	Recording, Notification, Alarm
Data Streaming	Yes

System Requirements

Mobile Operating Systems

iOS, Android

Environmental

Operating Temperature	-22 to 140°F / -30 to 60°C
Operating Humidity	0 to 90%
IP Rating	IP66
IK Rating	IK10
