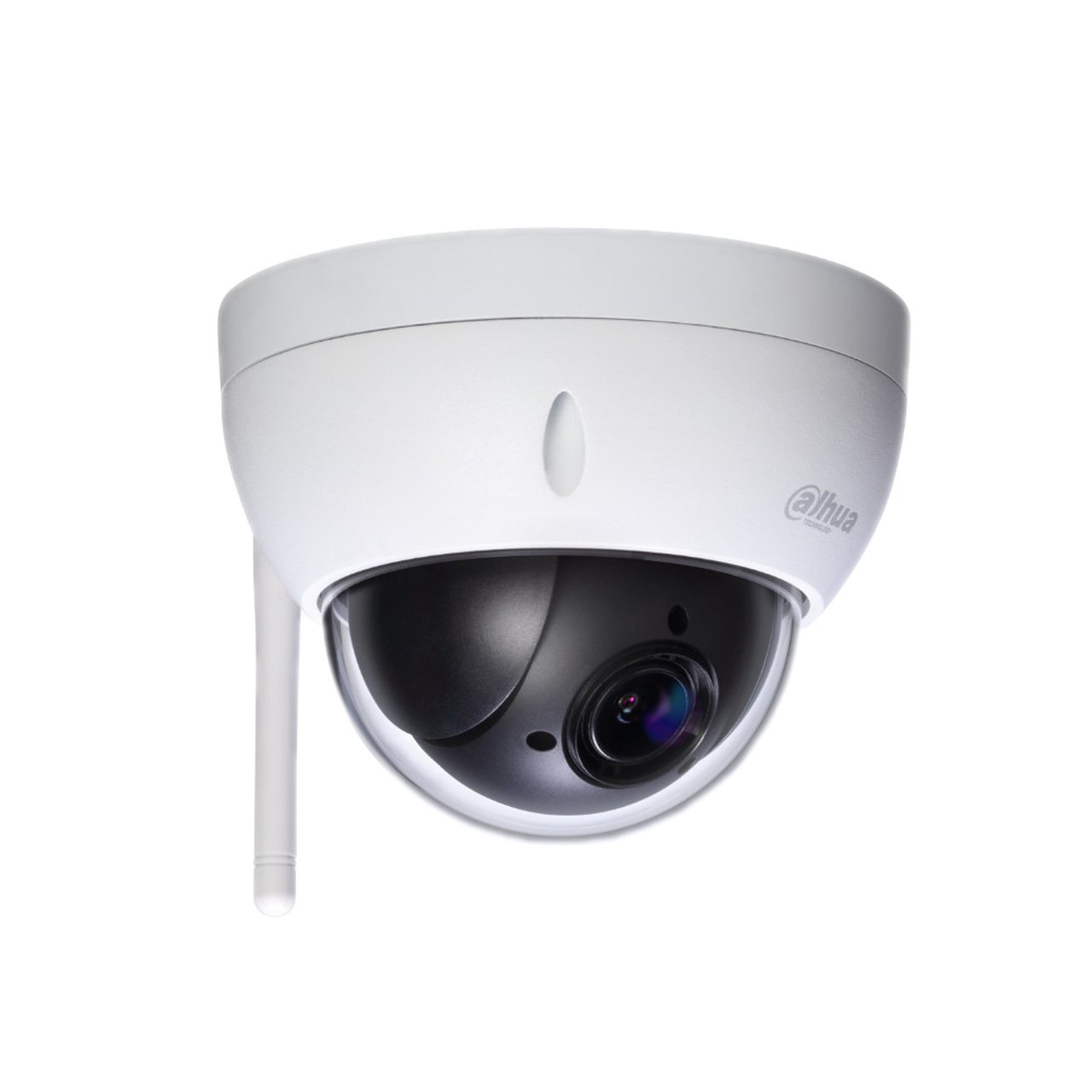

Dahua 2MP IP66, IK10 Mini PTZ IP Security Camera 2.7mm~11mm 4x Optical Zoom Lens

Dahua 2MP IP66, IK10 Mini PTZ IP Security Camera 2.7mm~11mm 4x Optical Zoom Lens

22204UENI-W

$479.99 USD
$479.99 USD
Sale Sold out
Shipping calculated at checkout.

Dahua 2MP IP66,IK10  WiFi Mini PTZ Network Security Camera 2.7mm~11mm, 4x Optical Zoom Lens

The 2 MP Starlight WiFi Mini PTZ Dome camera features a 1/2.8-in. STARVIS™ CMOS imager with a 4x optical zoom lens, and provides an all-in-one solution for capturing video surveillance for indoor and outdoor applications over a WiFi network. The camera uses the H.265 video compression standard to improve encoding efficiency while preserving high-quality video. The PTZ camera is equipped with quick and accurate pan/tilt/zoom control and True Wide Dynamic Range for applications.

  • 1/2.8-in. 2 MP STARVIS™ CMOS Sensor
  • 1080p at 30 fps Maximum Resolution
  • H.265 and H.264 Dual Codecs
  • 2.7 mm to 11 mm, 4x Optical Zoom
  • Triple-stream Encoding
  • WiFi Support (IEEE 802.11b/g/n)
  • Starlight Technology for Ultra-low Light Sensitivity
  • True Wide Dynamic Range (120 dB)
  • Intelligent Video System (IVS)
  • IP66 Ingress Protection and IK10 Vandal Resistance
  • Five-year Warranty (for products sold through an authorized Dahua Dealer)

 Features:

Camera

  • Image Sensor 1/2.8-in. STARVIS™ CMOS Sensor
  • Effective Pixels 1920(H) x 1080(V), 2 MP
  • RAM/ROM 256 MB / 128 MB
  • Scanning System Progressive
  • Electronic Shutter Speed 1/1 s to 1/30,000 s
  • Minimum Illumination Color: 0.005 lux at F1.6 B/W: 0.0005 lux at F1.6

Lens

  • Focal Length 2.7 mm to 11 mm
  • Max. Aperture F1.6
  • Angle of View Horizontal: 30° to 112.5°
  • Optical Zoom 4x
  • Focus Control Auto, Manual
  • Close Focus Distance 100 mm to 1000 mm (3.94 in. to 39.37 in.)

DORI Distance¹

  • Detect (8 ppf) 124.10 m (407.15 ft)
  • Observe (19 ppf) 49.70 m (163.06 ft)
  • Recognize (38 ppf) 24.80 m (81.36 ft)
  • Identify (76 ppf) 12.40 m (40.68 ft)

PTZ

  • Pan/Tilt Range Pan: 0° to 355° Tilt: 0° to 90°
  • Manual Control Speed Pan: 0.1° to 100° /s Tilt: 0.1° to 60° /s
  • Presets 300
  • PTZ Mode 8 Tours (up to 32 presets per tour)
  • Speed Compensation Proportional Pan/Tilt Speed to Zoom Ratio
  • Power up Action Auto restore to previous PTZ and lens status after power failure
  • Idle Motion Activate Preset, Scan, Tour, Pattern if there is no command in the specified period
  • Protocol DH-SD

Video

  • Compression H.265, H.264, MJPEG (sub-stream only)
  • Streaming Capability Three (3) Streams
  • Resolution 1080p (1920 x 1080), 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240)
  • Frame Rate Main Stream 1080p, 720p, or D1 at 30 fps Sub Stream 1 D1 or CIF at 30 fps Sub Stream 2 720p, D1, or CIF at 30 fps
  • Bit Rate Control CBR, VBR
  • Bit Rate H.265/H.264: 448 K to 8192 Kbps MJPEG: 5120 Kbps to 10240 Kbps
  • Day/Night Auto (ICR), Color, B/W
  • Backlight Compensation BLC, HLC, True WDR (120 dB)
  • White Balance Auto, ATW, Indoor, Outdoor, Manual, Sodium Lamp, Natural, and Street Lamp
  • Gain Control Auto, Manual, Gain Priority, Shutter Priority, Aperture Priority
  • Noise Reduction Ultra DNR (2D/3D)
  • Advanced Features Motion Detection, Region of Interest, Defog
  • Digital Zoom 16x
  • Flip 180°
  • Privacy Masking Up to 24 areas

Network

  • Ethernet RJ-45 (10/100 Base-T)
  • Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
  • WiFi IEEE 802.11b/g/n 2.4 GHz 150 Mbps
  • Interoperability ONVIF Profile S and G, API
  • Streaming Method Unicast / Multicast
  • Max. User Access 20 users
  • Edge Storage Network Attached Storage (NAS) Local PC for Instant Recording Micro SD Card Slot, maximum 128 GB
  • Web Viewer IE
  • Management Software Smart PSS, DSS, DMSS
  • Smart Phone IOS, Android

Certifications

  • CE EN 55032 EN 55024 EN 50130-4
  • Electromagnetic Compatibility CFR 47 FCC Part 15 Subpart B ANSI C63.4-2014

Electrical

  • Power Supply 12 VDC, 1.5 A
  • Power Consumption 5.5 W

Environmental

  • Operating Conditions –30° C to 60° C (–22° F to +140° F) Less than 95% RH
  • Ingress Protection IP66
  • Vandal Resistance IK10

Construction

  • Casing Metal
  • Dimensions 122.80 mm x 89.0 mm ( 4.83 in. x 3.50 in.)
  • Net Weight 0.52 kg (1.23 lb)
  • Gross Weight 0.73 kg (1.61 lb)

Intelligence

  • IVS triggers an alarm and takes a defined action for the following events:
  • Standard Features
  • Tampering with the camera.
  • Error writing to an onboard Micro SD card.
  • Error sending or receiving data over the network.
  • Unauthorized access to the camera.
  • Premium Features
  • Motion An object moves through any part of the scene.
